ABB DSAO120 57120001-EY Replacement for Advant DCS: Smooth Migration & Backward-Compatible Upgrade

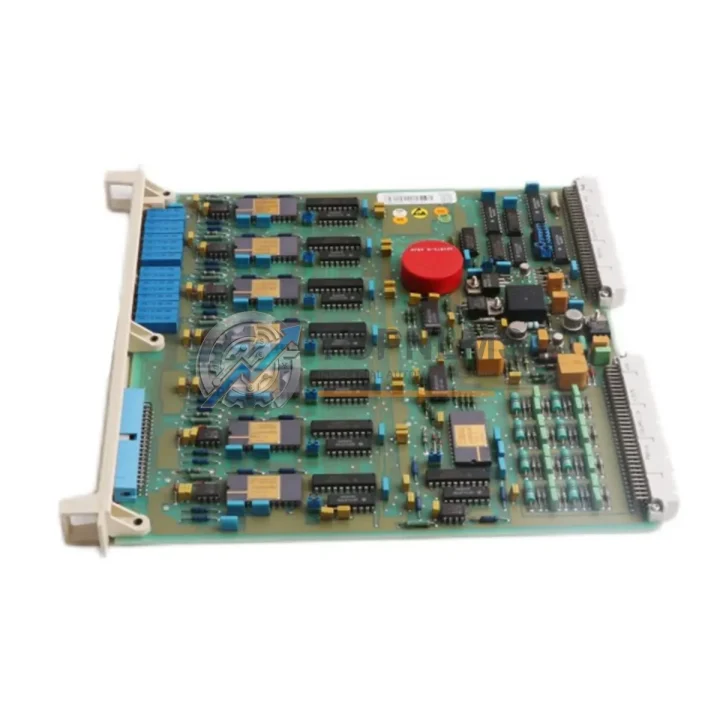

The ABB DSAO120 (part number 57120001-EY) is an 8-channel analog output module originally designed for the ABB Advant Controller 450 (AC 450) Distributed Control System. As ABB has progressively phased out the Advant product line in favor of the System 800xA and AC 800M platforms, sourcing genuine DSAO120 units has become increasingly difficult. TOPNLMS maintains verified stock of the DSAO120 57120001-EY to support plants that are either extending the life of their existing Advant installation or executing a phased migration to a modern DCS architecture.

Whether your facility is running a legacy Advant Master, an AC 450 rack-based system, or a hybrid configuration that bridges older I/O with a newer supervisory layer, this module provides the analog output capacity required to maintain continuous process control without forcing an immediate full-system cutover. Each unit is tested prior to shipment and backed by a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an Advant-based control system to a modern architecture involves more than swapping a single analog output card. In practice, engineers replacing the DSAO120 57120001-EY will typically also need to address adjacent components in the same rack or control cabinet.

On the I/O bus side, the DSBC172 or DSBC176 bus coupler modules serve as the communication bridge between the S100 I/O backplane and the AC 450 controller. If these couplers are aging or showing intermittent faults, replacing them in the same maintenance window as the DSAO120 eliminates a common source of ghost alarms and communication timeouts. Similarly, the DSAI130 and DSAI155 analog input modules that share the same rack often exhibit correlated wear patterns, and proactive replacement reduces the risk of a second unplanned outage shortly after the analog output repair.

For plants moving toward the AC 800M platform, the CI854 PROFIBUS DP communication interface module and the TB820 ModuleBus modem are key enablers of the transition. The CI854 allows the AC 800M controller to communicate with field devices over PROFIBUS, while the TB820 provides the ModuleBus backbone that connects S800 I/O clusters — including the AO820 8-channel analog output module, which is the functional successor to the DSAO120 in the 800xA environment. Engineers who have mapped their existing DSAO120 channel assignments in Advant Builder can use those same signal lists as the basis for re-engineering the AO820 configuration in Control Builder M, significantly reducing programming time during cutover.

Power integrity is another critical factor. The DSDO115 digital output module and DSDI110 digital input modules in adjacent slots share the same 24 V DC backplane supply. If the existing DSPU110 or DSPU130 power supply unit is operating near its rated load, adding a replacement DSAO120 without auditing the power budget can cause marginal voltage conditions that manifest as intermittent output errors. TOPNLMS recommends verifying the power supply loading before commissioning the replacement module.

For facilities that require signal isolation between the DCS analog outputs and field instrumentation — particularly in hazardous area applications or where ground loops have been a recurring issue — inline signal isolators or HART multiplexers can be installed on the terminal strip side without any modification to the DSAO120 module itself, preserving the existing wiring topology while improving signal integrity.

Finally, if your site uses an ABB Operator Station (OS) or a third-party SCADA system connected via the MasterBus 300 or INSUM network, the DSCS140 communication supervisor module governs that interface. Ensuring the DSCS140 firmware is current before replacing field I/O modules prevents configuration mismatches that can cause the replacement module to appear offline during initial power-up.

Retrofit Guidance FAQ

Q: Can I replace the DSAO120 without modifying the existing field wiring?
A: Yes. The DSAO120 57120001-EY uses the same terminal block pinout as other DSAO-series modules in the Advant S100 I/O family. Field wiring connected to the marshalling cabinet or directly to the module’s front connector does not need to be re-terminated, provided the replacement unit is the same hardware revision or a compatible successor revision.

Q: Do I need to re-download the control program after swapping the module?
A: In most AC 450 configurations, the controller retains the application program in battery-backed RAM. After a hot-swap or cold-swap of the DSAO120, the controller will re-initialize the module using the existing configuration data. A full program download is generally not required, but a forced re-initialization of the I/O bus segment is recommended to confirm all channels are recognized correctly.

Q: Is the DSAO120 compatible with PROFIBUS or PROFINET field devices?
A: No. The DSAO120 communicates exclusively over the ABB S100 I/O bus and does not natively support PROFIBUS DP or PROFINET. If your migration plan requires connecting to PROFIBUS field devices, the CI854 PROFIBUS DP interface module on the AC 800M platform is the appropriate solution.

Q: How much physical space does the replacement require in the cabinet?
A: The DSAO120 occupies a single slot in the standard Advant S100 I/O rack. No additional DIN rail space or cabinet modification is required. The module’s form factor is identical to other DSAO-series and DSDI/DSDO-series cards, allowing it to be installed in any available slot that is assigned to analog output in the system configuration.

Q: What communication protocol does the DSAO120 use, and is it compatible with my existing AC 450 controller?
A: The DSAO120 uses the proprietary ABB S100 I/O bus protocol. It is fully compatible with the AC 450 controller when connected via the DSBC172 or DSBC176 bus coupler. No protocol conversion or additional gateway hardware is required for a like-for-like replacement.

Q: Can this module be used during a phased migration where the AC 450 and AC 800M run in parallel?
A: Yes. Many plants operate a hybrid architecture during the transition period, with the AC 450 continuing to manage legacy I/O while the AC 800M takes over new or migrated loops. The DSAO120 continues to function normally in the AC 450 rack during this period. Migration of individual loops to the AC 800M S800 I/O platform can be done incrementally, loop by loop, without requiring a full system shutdown.

Warranty Assurance

Every ABB DSAO120 57120001-EY unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a functional verification check that confirms power-up behavior, bus communication response, and output channel continuity. Units that do not pass this check are not shipped.

In the event of a warranty claim, TOPNLMS will assess the reported fault and, where the defect is confirmed to be a manufacturing or component failure under normal operating conditions, will arrange a replacement shipment. Our standard response target for warranty inquiries is within 2 business days of receiving the defective unit or sufficient diagnostic evidence.

Warranty coverage does not extend to damage caused by incorrect installation, overvoltage conditions, physical impact, or use outside the module’s rated operating parameters. Customers are encouraged to review the ABB DSAO120 hardware manual for installation and operating specifications before commissioning the replacement unit.

For procurement inquiries, lead time confirmation, or technical pre-sales questions, contact our team directly. We maintain stock in Xiamen, China, and can arrange express international shipping to minimize plant downtime.
