ABB DSAO110 57120001-AT Ruggedized Analog Output Module

Product Overview

ABB DSAO110 57120001-AT Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

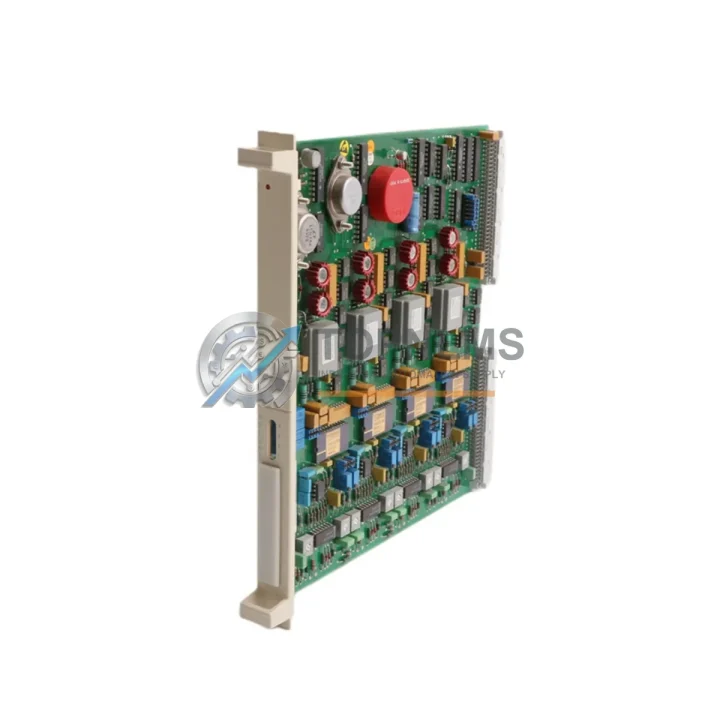

The ABB DSAO110 57120001-AT is an 8-channel analog output module engineered for the ABB ADVANT Master Distributed Control System (DCS) S100 I/O architecture. Designed to operate continuously in demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the signal integrity and long-term reliability that critical infrastructure operations demand.

In process industries where a single point of failure can halt an entire production line, the DSAO110 57120001-AT provides the stable 4–20 mA or 0–10 V analog output signals required to drive control valves, variable frequency drives (VFDs), positioners, and other field actuators with precision. Its robust hardware design, combined with ABB’s proven ADVANT Master platform architecture, ensures that control loops remain closed and process variables stay within safe operating limits — even under sustained electromagnetic interference (EMI) from nearby high-voltage switchgear, motor drives, or welding equipment.

Rugged Specifications Table

Comprehensive Protection Solutions

The DSAO110 57120001-AT does not operate in isolation — it is one critical node within a broader ABB ADVANT Master control architecture. In a typical S100 I/O cabinet, this analog output module works in close coordination with the ABB DSAI130 analog input module, which acquires process measurements from field transmitters, and the ABB DSDI110 digital input module, which monitors discrete field signals such as valve limit switches and motor run feedback. Together, these I/O modules feed data to the ABB DSPC172 or DSPC176 processor module, which executes the control strategy and issues setpoint commands back through the DSAO110’s output channels.

For installations requiring functional safety compliance, the DSAO110 57120001-AT is commonly deployed alongside ABB DSDO115 digital output modules that drive safety relays and solenoid valves, and ABB DSDP150 communication modules that maintain supervisory SCADA connectivity over Profibus or Modbus protocols. In high-availability configurations, redundant ABB DSMB127 motherboard assemblies and DSBC172 bus connection modules ensure that a single hardware fault does not interrupt the control loop.

Power integrity is equally critical in harsh environments. The DSAO110 57120001-AT is typically powered through the S100 subrack’s internal 24 VDC bus, supplied by an ABB DSSB146 or equivalent industrial power supply module. In facilities with unstable grid power — common in mining and heavy metallurgical plants — an uninterruptible power supply (UPS) module is recommended upstream to protect the entire I/O rack from voltage transients and brownouts. Surge protection terminal blocks and shielded signal cables further reduce the risk of EMI-induced output errors on long cable runs to field actuators.

Application in Critical Infrastructure

The ABB DSAO110 57120001-AT has a proven track record across the most demanding sectors of critical infrastructure:

Oil & Gas Processing: In upstream and midstream facilities, the DSAO110 drives control valve positioners on separator vessels, compressor anti-surge systems, and pipeline pressure control loops. Its ability to maintain accurate 4–20 mA output signals in the presence of high-frequency EMI from variable speed compressor drives makes it a preferred choice for offshore platform control rooms and onshore gas processing trains.

Power Generation: Thermal and hydroelectric power plants rely on the ADVANT Master DCS for boiler combustion control, turbine governor interfaces, and generator excitation management. The DSAO110 module provides the analog setpoints to combustion air damper actuators and feedwater control valves, where output accuracy directly impacts thermal efficiency and emissions compliance.

Mining and Mineral Processing: In open-pit and underground mining operations, control systems face extreme dust ingress, mechanical vibration from blasting and heavy haulage, and wide ambient temperature swings. The DSAO110’s robust construction and conformal-coated PCB design (where applicable) allow it to maintain reliable operation in concentrator plants, flotation circuits, and conveyor drive control systems.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the DSAO110 to modulate chemical dosing pumps, aeration blower VFDs, and filter backwash valve actuators. Continuous 24/7 operation requirements in these facilities make spare parts availability and rapid replacement capability essential procurement considerations.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate some of the most severe EMI and vibration conditions in industry. The DSAO110’s signal isolation and shielding design allow it to deliver stable analog outputs to hydraulic servo valves and cooling water flow control valves even in these extreme environments.

Security & Quality FAQ

Q1: What warranty coverage is provided with the ABB DSAO110 57120001-AT?
All DSAO110 57120001-AT modules supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional failures under normal operating conditions. Our technical team provides post-sale support to assist with installation, configuration, and troubleshooting throughout the warranty period.

Q2: How is each module tested before shipment?
Every DSAO110 57120001-AT unit undergoes a full functional test prior to dispatch. Testing includes verification of all 8 analog output channels across the full signal range, backplane communication integrity checks, and visual inspection for physical damage. A test report is available upon request for quality-critical procurement processes.

Q3: Is the DSAO110 57120001-AT compatible with my existing ADVANT Master DCS installation?
Yes. The DSAO110 57120001-AT is a direct replacement module for ABB ADVANT Master S100 I/O systems. It is compatible with standard S100 subracks and communicates via the native S100 I/O bus without requiring firmware changes or hardware modifications. If you are uncertain about compatibility with a specific system revision, please contact our technical team with your existing system configuration details.

Q4: Can TOPNLMS support long-term and repeat supply of this module?
Yes. TOPNLMS maintains stock of legacy ABB ADVANT Master components, including the DSAO110 57120001-AT, to support customers with long-lifecycle DCS installations. We understand that many ADVANT Master systems remain in service for 15–25 years, and we are committed to providing reliable spare parts supply, competitive lead times, and technical support for the duration of your system’s operational life. For volume pricing and scheduled delivery arrangements, please contact us directly.
