ABB DSAI145 Replacement/Upgrade for ADVANT Master DCS

Product Overview

ABB DSAI145 Replacement/Upgrade for ADVANT Master DCS: Seamless Migration & Compatibility

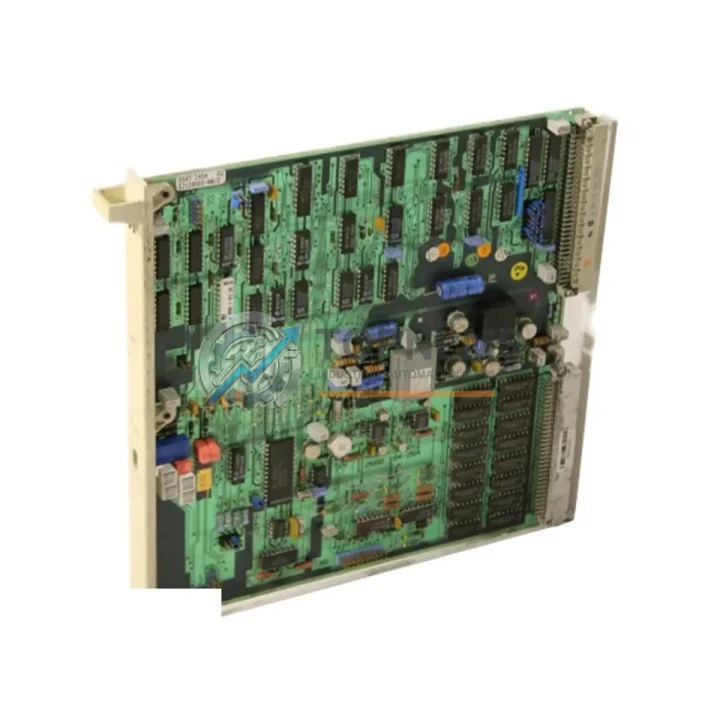

The ABB DSAI145 is an 8-channel analog input module originally designed for the ABB ADVANT Master Distributed Control System (DCS). As this module approaches or has reached end-of-life status, many process plants, power utilities, and manufacturing facilities are actively seeking verified replacement units or a structured upgrade path that preserves existing wiring infrastructure, control logic, and system architecture. TOPNLMS supplies tested DSAI145 modules and provides migration guidance to help engineering teams execute a smooth transition with minimal process interruption.

The DSAI145 interfaces directly with the ADVANT Master rack backplane, accepting 4–20 mA and voltage analog signals from field transmitters. Its 8-channel configuration is commonly paired with the DSDO115 digital output module, the DSDI110 digital input module, and the DSDP140 pulse input module within the same I/O rack. When planning a replacement, it is critical to verify the rack slot assignment, the termination unit wiring (typically via the DSTC110 or DSTC120 cable termination unit), and the channel-by-channel signal range configuration stored in the ADVANT Master engineering tool.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DSAI145 replacement rarely occurs in isolation. In most ADVANT Master DCS environments, the analog input module works in concert with a broader set of I/O and communication components that must be evaluated simultaneously. When replacing the DSAI145, engineers should audit the condition of the DSDO115 digital output modules and DSDI110 digital input modules installed in the same rack, as aging backplane connectors can cause intermittent faults across all slots. The DSDP140 pulse input module, often used for flow measurement in the same control loop, should also be inspected for firmware compatibility.

On the communication side, the DSAI145 relies on the ADVANT Master S100 I/O bus, which is managed by the DSBC172 or DSBC176 bus controller. If the bus controller is also approaching end-of-life, it is advisable to replace it concurrently to avoid a second unplanned outage. For sites that are migrating from ADVANT Master to a modern ABB System 800xA or AC500 PLC platform, the DSAI145 replacement may serve as the first step in a phased migration, where the DSTC110 termination unit wiring is preserved and re-mapped to the new I/O marshalling cabinet.

Power supply integrity is another key consideration. The ADVANT Master rack is typically powered by the DSQC604 or a compatible 24 VDC power supply module. A degraded PSU can cause erratic analog readings that are misdiagnosed as module failure. Verifying PSU output voltage before swapping the DSAI145 can prevent unnecessary module replacement costs. Similarly, the DSTC120 cable termination unit should be inspected for corroded terminals, particularly in humid or coastal industrial environments.

For sites that require signal isolation between field devices and the DCS, the addition of a DIN-rail-mounted signal isolator or loop-powered isolator between the transmitter and the DSAI145 input channel is a recommended retrofit practice that improves noise immunity and protects the module from field-side transients.

Retrofit Guidance FAQ

Q: Can I replace the DSAI145 without modifying existing field wiring?
A: Yes. The DSAI145 connects to the field via the DSTC110 or DSTC120 termination unit. As long as the replacement module is a genuine DSAI145 or a verified compatible unit, the existing cable harness and terminal assignments remain unchanged.

Q: Do I need to re-download the control program after replacing the module?
A: In most cases, no. The ADVANT Master system stores I/O configuration in the controller, not the module itself. After physical replacement, a cold restart of the I/O rack is typically sufficient. However, if the module’s internal DIP switch settings differ from the original, channel range parameters must be re-verified in MasterView 800.

Q: Is the DSAI145 compatible with PROFIBUS or MODBUS communication?
A: The DSAI145 communicates exclusively via the proprietary ADVANT S100 I/O bus. It does not natively support PROFIBUS or MODBUS. For integration with modern SCADA or PLC systems using these protocols, a gateway or protocol converter is required at the controller level, not at the module level.

Q: What is the physical installation space requirement?
A: The DSAI145 occupies one standard slot in the ADVANT Master S100 I/O rack. No additional mounting hardware or DIN rail adapter is required. The card cage depth and backplane connector pitch are identical to the original specification.

Q: How do I verify the module is functioning correctly after installation?
A: Apply a known 4–20 mA signal to each channel using a loop calibrator and confirm the corresponding process variable reading in MasterView 800 or the operator station. Compare readings against the original calibration records. Any channel deviation greater than ±0.1% of span should be investigated before returning the loop to automatic control.

Warranty Assurance

Every ABB DSAI145 module supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional bench test that verifies backplane connector integrity, channel-by-channel analog signal accuracy, and power consumption within specification. Modules that do not pass the full test protocol are not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the agreed lead time. Our technical support team is available to assist with installation verification, signal calibration guidance, and compatibility confirmation before and after shipment. We maintain stock of DSAI145 and related ADVANT Master I/O modules to support emergency breakdown orders with same-day or next-business-day dispatch from our Xiamen warehouse.

For volume procurement, long-term supply agreements, and project-based sourcing of discontinued ABB ADVANT Master components, please contact our sales team directly. We work with EPC contractors, system integrators, and plant maintenance teams across Asia, the Middle East, and Europe.
