ABB DSAB-01C 64630199 Replacement for DC Drive Series: Smooth Transition & Legacy System Compatibility

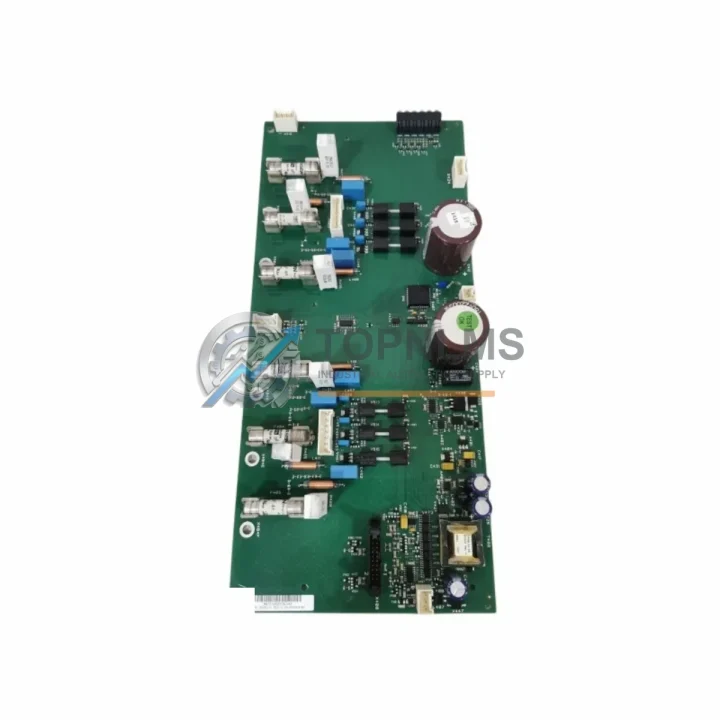

The ABB DSAB-01C (Part No. 64630199) is a thyristor trigger board — also referred to as a DC drive firing card — originally designed for ABB’s classic DC drive platforms including the DCS400, DCS500, DCS600 and related ACS-series converter systems. As these platforms age and OEM support diminishes, sourcing a reliable, drop-in replacement becomes critical to maintaining production continuity.

TOPNLMS supplies the DSAB-01C 64630199 as a direct replacement or upgrade solution for engineers and procurement teams managing legacy ABB DC drive systems. Whether you are dealing with a failed firing card, a planned preventive maintenance swap, or a full drive modernization project, this board is tested, verified, and ready to ship from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DC drive modernization project rarely involves a single component. When replacing the DSAB-01C 64630199 firing card, field engineers typically address the surrounding drive architecture to ensure system-wide reliability. During the retrofit process, the following components are commonly evaluated or replaced alongside the thyristor trigger board:

The SDCS-CON-4 control board is the most frequent companion replacement — it manages the closed-loop speed and current regulation that the DSAB-01C firing signals feed into. If the firing card has failed due to overvoltage or thermal stress, the SDCS-CON-4 should be inspected for latent damage. Similarly, the SDCS-POW-4 power supply board provides the internal 24 VDC rail that energizes the firing card; a degraded power board can cause intermittent trigger failures that are often misdiagnosed as a firing card fault.

For systems using the RDCO-02 or RDCO-04 fiber optic communication modules, verifying the integrity of the DDCS communication link between the drive and the upper-level controller (such as an AC800M or AC500 PLC) is essential before commissioning the replacement board. A corrupted DDCS link can prevent the new firing card from receiving valid gate pulse commands, leading to false fault codes during startup.

In cabinet-level retrofits, the SDCS-IOB-3 I/O expansion board and associated SDCS-FEX-2 field excitation module are often upgraded in the same maintenance window to eliminate future single-point failure risks. Technicians working on multi-drive systems housed in a common MCC (Motor Control Center) cabinet should also verify the condition of the NTAC-02 pulse encoder interface module, as encoder signal integrity directly affects the speed feedback loop that the firing card depends on for accurate thyristor timing.

For sites migrating from older DCS500B platforms to the DCS600 architecture, the DSAB-01C replacement is typically paired with updated SDCS-CON-2 or SDCS-CON-4 control boards and new fiber optic cabling to support the higher-speed DDCS protocol. This combination delivers a cost-effective modernization path without requiring a full drive cabinet replacement.

Retrofit Guidance FAQ

Q: Can I replace the DSAB-01C without re-parameterizing the drive?
A: In most cases, yes. The DSAB-01C is a hardware firing card and does not store drive parameters. Drive parameters reside on the SDCS-CON-4 control board. As long as the control board is intact and parameters are backed up (via DriveWindow or DriveStudio software), the firing card swap is a direct hardware replacement with no software changes required.

Q: Are the wiring connections identical to the original board?
A: Yes. The DSAB-01C 64630199 uses the same edge connector and ribbon cable interface as the original OEM board. No rewiring of the thyristor gate leads or control harness is necessary. Always de-energize the drive and discharge the DC bus capacitors before handling the firing card.

Q: What communication protocols does this board support?
A: The DSAB-01C operates within the internal drive bus architecture and is compatible with the DDCS (Distributed Drive Communication System) protocol used across ABB’s DCS and ACS drive families. It does not require independent fieldbus configuration — communication is managed at the control board level via RDCO modules.

Q: Will this board fit in the original drive cabinet without physical modification?
A: Yes. The DSAB-01C 64630199 maintains the original form factor and mounting footprint. No cabinet modifications, additional DIN-rail space, or bracket adapters are required. This is particularly important for retrofits in space-constrained MCC cabinets or existing drive racks.

Q: How do I verify the replacement board is functioning correctly after installation?
A: After installation, power up the drive in a no-load condition and monitor the gate pulse outputs using an oscilloscope or the drive’s built-in diagnostic tools (accessible via DriveWindow). Verify that all six thyristor gate channels are firing symmetrically. Check for fault codes F507 (firing circuit fault) or F508 (thyristor fault) — absence of these codes under normal load confirms successful replacement.

Q: What if my system uses an older DCS500B platform?
A: The DSAB-01C is compatible with DCS500B-series drives. However, if you are migrating from DCS500B to DCS600, additional control board upgrades (SDCS-CON-4) and fiber optic module updates may be required. Contact our technical team at [email protected] for a system-specific compatibility assessment.

Warranty Assurance

Every ABB DSAB-01C 64630199 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes functional verification of the thyristor gate trigger circuits, visual inspection for component damage, and continuity testing of all connector interfaces. Each unit is individually packaged in anti-static ESD-safe materials with a serialized inspection label.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team ([email protected]) responds to warranty inquiries within 24 business hours. We maintain buffer stock of the DSAB-01C 64630199 specifically to support rapid warranty exchanges without extended lead times.

For procurement teams requiring documentation, we can provide a Certificate of Conformance (CoC), packing list, and commercial invoice with HS code declaration for customs clearance. Standard shipping is via DHL Express or FedEx International Priority from Xiamen, China, with typical transit times of 3–7 business days to most destinations worldwide.

TOPNLMS serves industrial maintenance teams, MRO procurement departments, and system integrators across manufacturing, energy, mining, and process industries. Our catalog covers ABB, Siemens, Schneider Electric, Rockwell Automation, and other leading automation brands — making us a single-source supplier for complex multi-brand retrofit projects.
