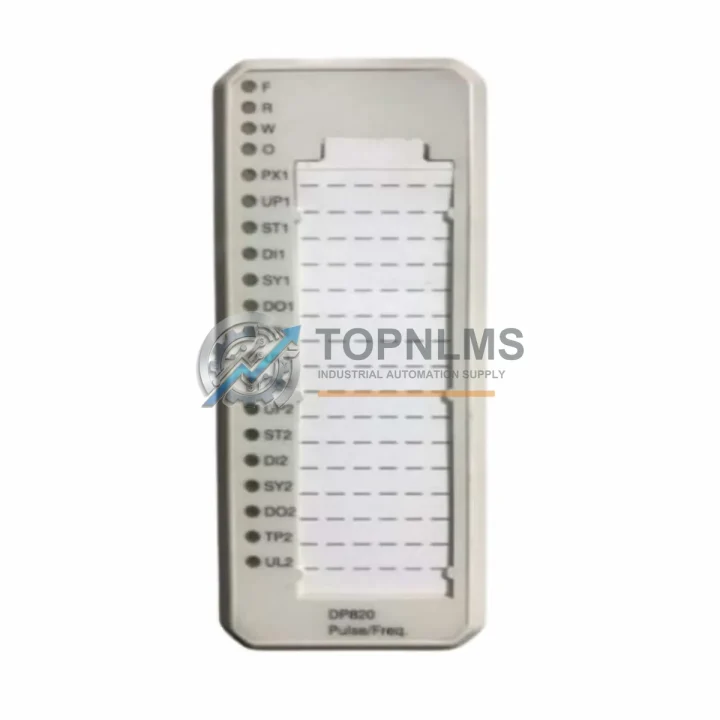

ABB DP820 3BSE013228R1 Ruggedized Pulse Counter Module

Product Overview

ABB DP820 3BSE013228R1 Ruggedized Pulse Counter Module: Industrial Resilience for Harsh Environments

The ABB DP820 (3BSE013228R1) is a high-integrity pulse counter I/O module engineered for the ABB AC 800M Distributed Control System (DCS). Designed to operate continuously in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the signal accuracy and system stability that mission-critical operations demand. Whether deployed in a petrochemical refinery, a power generation plant, or a water treatment facility, the DP820 maintains precise pulse counting performance without compromise.

Built to ABB’s stringent quality standards for the AC 800M platform, the DP820 integrates seamlessly into existing control architectures, reducing engineering risk during both greenfield installations and brownfield upgrades. Its robust hardware design addresses the core challenges of industrial field environments: electromagnetic interference (EMI) from variable frequency drives and large motor starters, voltage transients on shared power rails, and mechanical stress from continuous vibration in rotating-equipment-heavy plants.

Rugged Specifications Table

Comprehensive Protection Solutions

The DP820 3BSE013228R1 does not operate in isolation — it is a precision component within a broader ABB AC 800M control architecture. In a typical control cabinet deployment, the DP820 works alongside the ABB TB820V2 ModuleBus Modem to extend the S800 I/O bus over longer distances, ensuring signal integrity even in large-footprint plants. The module pairs with ABB CI854A PROFIBUS DP communication interface modules to bridge field device data into the DCS backbone, and with ABB AI810 and AI820 analog input modules for comprehensive mixed-signal acquisition across the same I/O station.

For power conditioning and protection within the control cabinet, the DP820 is typically supported by ABB SD831 or SD832 power supply units, which provide stable 24 VDC rail voltage with built-in short-circuit and overload protection — critical for maintaining module integrity during grid disturbances in heavy industrial sites. In safety-instrumented system (SIS) architectures, the DP820 may be deployed alongside ABB SM811 or SM812 safety modules that enforce IEC 61511 functional safety requirements, ensuring that pulse-counted process variables feed correctly into emergency shutdown logic.

Relay output modules such as the ABB DO810 or DO820 are commonly installed in the same I/O cluster, converting DCS control signals into hardwired actuator commands for solenoid valves, motor contactors, and alarm annunciators. Terminal modules including the ABB TU810V1 and TU830V1 provide the mechanical and electrical interface between the DP820 and field wiring, enabling hot-swap replacement without disrupting live process signals — a key advantage in continuous-production environments where planned shutdowns are costly.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the DP820 is deployed to count pulses from turbine flow meters and positive displacement meters on wellhead manifolds and pipeline custody transfer skids. Its high-frequency pulse counting capability and noise immunity make it reliable even in the presence of high-power variable frequency drives controlling pump and compressor motors nearby.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the DP820 monitors shaft encoder signals and turbine speed feedback, feeding real-time data into the AC 800M controller for load balancing and protective relay coordination. The module’s tolerance for wide ambient temperature swings is particularly valuable in outdoor switchyard control buildings and turbine hall environments.

In mining and mineral processing, where conveyor belt speed monitoring, crusher rotation counting, and slurry pump flow measurement are essential for throughput optimization and equipment protection, the DP820 provides the pulse resolution and signal conditioning needed to maintain accurate process data under conditions of heavy vibration, airborne dust, and aggressive electrical noise from large DC drives.

In water and wastewater treatment plants, the module supports flow totalization from electromagnetic and ultrasonic flow meters across intake, treatment, and distribution stages. Its long-term operational stability reduces the need for frequent calibration interventions, lowering maintenance overhead in facilities that operate 24/7 with minimal staffing.

In metals and metallurgy — including steel rolling mills and aluminum smelters — the DP820 withstands the intense electromagnetic environment generated by large rectifier banks and induction furnaces, maintaining pulse count accuracy for critical process variables such as rolling speed, casting rate, and furnace rotation.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All DP820 3BSE013228R1 modules supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing including I/O channel verification, bus communication check, and power rail integrity measurement. If a module fails within the warranty period, TOPNLMS provides a replacement or full refund — no lengthy RMA bureaucracy.

Q2: How is compatibility with my existing AC 800M system verified before shipment?
The DP820 is a standard S800 I/O series module and is compatible with all AC 800M controller variants including PM851, PM856, PM860, PM861, PM864, and PM866. TOPNLMS technical staff can cross-reference your existing system configuration, firmware revision, and I/O cluster layout to confirm drop-in compatibility before the order is confirmed. Customers are encouraged to share their system topology or existing module list for a pre-sale compatibility review.

Q3: Can this module be used as a direct replacement in a live production system?
Yes. The DP820, when installed on a compatible TU810V1 or TU830V1 terminal unit, supports hot-swap replacement on AC 800M systems configured for redundant or non-redundant I/O. This means the module can be replaced during live operation without requiring a full system shutdown — a critical capability for continuous-process industries such as refining, power generation, and chemical manufacturing. TOPNLMS recommends following ABB’s documented hot-swap procedure and verifying channel configuration in the AC 800M engineering tool (Control Builder M) after replacement.

Q4: What is TOPNLMS’s long-term supply commitment for this module?
TOPNLMS maintains dedicated stock of high-demand ABB AC 800M I/O modules including the DP820 3BSE013228R1, with inventory replenishment cycles aligned to industrial MRO procurement timelines. For customers with planned maintenance shutdowns or multi-year spare parts programs, TOPNLMS offers reserved stock arrangements and volume pricing. Long-term supply continuity is a core commitment — particularly for legacy DCS platforms where OEM availability may be constrained.
