ABB DO840 3BSE020838R1 Replacement for S800 AC800M

Product Overview

ABB DO840 3BSE020838R1 Replacement for S800 AC800M: Smooth Migration & Legacy System Upgrade

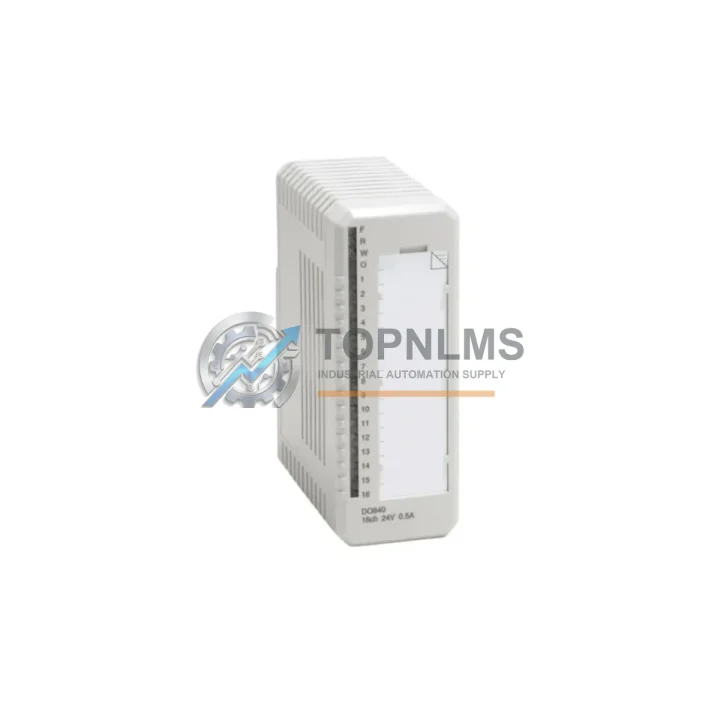

The ABB DO840 (3BSE020838R1) is a 16-channel, 24 VDC digital output module designed for the S800 I/O series, fully integrated with the AC800M Distributed Control System (DCS). As ABB’s industrial automation ecosystem continues to evolve, many facilities operating legacy AC800M controllers are facing the challenge of sourcing discontinued or end-of-life S800 I/O modules. The DO840 remains a critical field-side component in thousands of process plants, power stations, and manufacturing facilities worldwide — and TOPNLMS maintains verified stock to support your migration, upgrade, or emergency replacement needs.

Whether you are replacing a failed unit on a live production line, building a spare-parts buffer for a long-term maintenance contract, or executing a phased DCS modernization project, the DO840 3BSE020838R1 offers a direct, drop-in replacement path with no firmware changes, no re-engineering of the control cabinet, and no modification to existing field wiring.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DO840 replacement or DCS migration rarely involves a single module in isolation. In practice, field engineers working on AC800M systems encounter a cluster of interdependent components that must be evaluated together to ensure a smooth cutover with minimal downtime.

The DO840 mounts onto a TB840 terminal base, which provides the physical wiring interface between the module and field devices. If the existing terminal base shows signs of wear, corrosion on screw terminals, or mechanical damage, replacing it alongside the DO840 eliminates a common source of intermittent faults after module swap. Similarly, the S800 I/O ModuleBus coupler — typically a CI840A or CI854A for PROFIBUS DP networks, or a CI873 for PROFINET/Ethernet-based architectures — should be inspected for firmware currency and communication health before commissioning the new output module.

In many legacy AC800M cabinets, the PM856 or PM864 controller module is the central processing unit managing the S800 I/O cluster. If the controller itself is approaching end-of-life or running outdated firmware, a DO840 replacement is an ideal trigger point to schedule a parallel controller refresh, avoiding a second planned outage in the near future. The SD823 or SD833 power supply module feeding the S800 I/O rail should also be load-checked, particularly when adding higher-channel-count output modules to an existing rail segment.

On the field wiring side, engineers frequently discover that aging signal isolators or relay output modules — such as the DO801 or third-party DIN-rail relay banks — are the actual source of output faults that were previously attributed to the DO840 itself. Replacing the DO840 without inspecting downstream relay interfaces can result in persistent field faults even after the module swap. A thorough pre-commissioning loop check using a HART communicator or loop calibrator on each of the 16 output channels is strongly recommended before returning the loop to automatic control.

For sites running ABB Control Builder M (formerly Control Builder Plus), the DO840 is automatically detected and configured within the existing hardware tree. No manual I/O address reassignment is required when the module is installed in the same slot position. However, if the replacement involves a slot change — for example, due to physical damage to the backplane or rail segment — the I/O address mapping in the Control Builder project must be updated and a new download performed to the AC800M controller before the outputs become active.

Sites planning a broader migration from AC800M to a newer DCS platform — such as ABB’s System 800xA with AC800M High Integrity or a third-party migration path — can use the DO840 as an interim solution to stabilize the existing system while the migration project is engineered and budgeted. TOPNLMS can supply multiple units to support both the active system and a cold-standby spare inventory strategy.

Retrofit Guidance FAQ

Q: Can I replace a DO810 or DO820 with the DO840 without rewiring?
A: In most cases, yes. The DO840 uses the same S800 ModuleBus interface and is compatible with the TB840 terminal base family. If the existing terminal base is a TB810 or TB820, a base change may be required — verify the terminal base part number before ordering.

Q: Will my existing AC800M Control Builder project recognize the DO840 automatically?
A: Yes. The DO840 is a standard S800 I/O module and is included in the Control Builder hardware library. When installed in the same slot, the controller will recognize it on the next scan cycle without requiring a project download, provided the module type is already defined in the hardware configuration.

Q: Does the DO840 support PROFIBUS DP and PROFINET?
A: The DO840 communicates via the S800 ModuleBus to the I/O coupler. PROFIBUS DP connectivity is provided by the CI840A or CI854A coupler; PROFINET/Ethernet connectivity is provided by the CI873 coupler. The DO840 itself is protocol-agnostic at the field level.

Q: What is the physical installation space requirement?
A: The DO840 occupies a standard S800 module slot width. It is a direct physical replacement for other S800 digital output modules of the same form factor. No panel modification or additional DIN rail space is required.

Q: Can the DO840 be used in a redundant I/O configuration?
A: S800 I/O supports redundant coupler configurations. The DO840 can be used in redundant I/O setups when paired with a compatible redundant coupler and AC800M controller configuration. Consult the S800 I/O Hardware Product Manual (3BSE020923R4) for redundancy wiring details.

Q: What should I check before installing the replacement module?
A: Verify the terminal base type and condition, inspect the ModuleBus coupler firmware version, confirm the slot address in Control Builder, perform a loop check on all 16 output channels after installation, and confirm field device power supply integrity before enabling outputs.

Warranty Assurance

Every ABB DO840 3BSE020838R1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment functional inspection to verify communication interface integrity, output channel continuity, and physical condition. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement-first policy: a replacement unit is dispatched as soon as the defective module is confirmed and return logistics are arranged, minimizing the impact on your production schedule. Our after-sales response target is within 24 hours of a warranty claim submission via email or phone.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformity, packing list, and commercial invoice with each shipment. Bulk orders for spare-parts programs or long-term maintenance contracts are supported with volume pricing and priority allocation from our Xiamen warehouse stock.

For urgent replacement inquiries, technical compatibility questions, or volume procurement, contact our industrial automation team directly:
