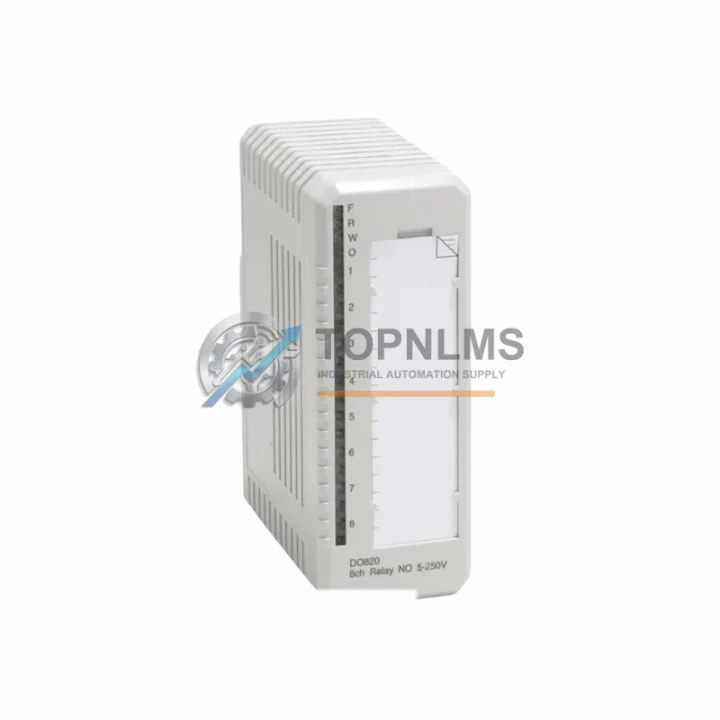

ABB DO820 3BSE008514R1 Ruggedized Digital Output Module

Product Overview

ABB DO820 3BSE008514R1 Ruggedized Digital Output Module: Industrial Resilience for Harsh Environments

The ABB DO820 (3BSE008514R1) is a high-density digital output module engineered for the ABB AC800M Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in oil & gas, power generation, mining, water treatment, and heavy metallurgical industries. Designed to operate continuously in demanding industrial environments, the DO820 delivers 32 channels of 24 VDC digital output with robust signal isolation, high-speed switching, and proven resistance to electromagnetic interference (EMI), voltage transients, and mechanical vibration.

In critical production environments where downtime is measured in tens of thousands of dollars per hour, the DO820’s ruggedized design ensures uninterrupted control signal delivery to field actuators, solenoid valves, motor starters, and safety interlock circuits. Its conformal-coated PCB construction provides reliable protection against humidity, condensation, and airborne particulates — making it equally suitable for offshore platforms, underground mining galleries, and outdoor substations where temperature swings and corrosive atmospheres are routine.

Rugged Specifications Table

Comprehensive Protection Solutions

The DO820 3BSE008514R1 is rarely deployed in isolation. In a fully configured ABB AC800M control cabinet, it works in concert with a range of complementary modules to deliver complete process automation coverage. The ABB PM864A (3BSE018161R1) controller module serves as the central processing unit, executing control logic and coordinating all I/O communication across the S800 bus. Paired with the ABB DI810 (3BSE008508R1) digital input module, the DO820 forms a complete discrete I/O layer capable of reading field sensor states and driving output actuators in real time.

For analog process variables such as temperature, pressure, and flow, the ABB AO820 (3BSE008546R1) analog output module and ABB AI810 (3BSE008516R1) analog input module complement the DO820 within the same rack, enabling mixed-signal control strategies without additional hardware. In safety-instrumented systems (SIS), the DO820 is frequently installed alongside the ABB SM811 Safety Module and ABB CI854A (3BSE030220R1) PROFIBUS DP communication interface module, ensuring that safety logic and field communication remain segregated and independently verifiable.

Power integrity is maintained through the ABB SD821 (3BSE013252R1) and ABB SD822 (3BSE013253R1) power supply units, which provide redundant 24 VDC rail power to the S800 I/O station. Terminal modules such as the ABB TU810V1 (3BSE013230R1) provide the physical field wiring interface, allowing the DO820 to be replaced without disturbing field cabling — a critical advantage during live maintenance windows on continuous production lines. For distributed I/O topologies, the ABB CI801 (3BSE022366R1) PROFIBUS DP adapter module extends the S800 I/O station across long cable runs in large plant layouts.

Application in Critical Infrastructure

In upstream oil and gas operations, the DO820 controls wellhead shutdown valves, emergency depressurization actuators, and flare ignition systems — applications where a missed output signal can trigger a safety interlock cascade or, worse, an uncontrolled release. Its galvanic isolation and transient suppression circuitry protect against the high-energy switching events common in pump motor control circuits and variable-frequency drive (VFD) environments.

In coal and hard-rock mining, the DO820 manages conveyor belt starters, ventilation fan contactors, and dewatering pump controls in environments saturated with coal dust, silica particulates, and high ambient humidity. The module’s conformal coating and sealed connector design prevent conductive contamination from bridging signal traces — a failure mode that has caused unplanned shutdowns in less robust I/O hardware.

At thermal and hydroelectric power stations, the DO820 participates in turbine governor control, boiler burner management, and grid synchronization sequences. Its deterministic output response time ensures that control commands issued by the AC800M controller reach field devices within the tight timing windows demanded by power generation safety standards such as IEC 61511 and NERC CIP.

In municipal water treatment and wastewater facilities, the DO820 drives chemical dosing pump relays, UV disinfection system contactors, and sluice gate actuators across geographically distributed pump stations connected via PROFIBUS or Modbus TCP networks. Its wide operating temperature range accommodates both heated indoor pump rooms and uninsulated outdoor kiosks in cold-climate installations.

For metallurgical and steel production environments, where radiated heat from furnaces and induction heaters creates sustained high-temperature ambient conditions, the DO820’s rated operating ceiling of +55 °C and its thermal management design ensure continuous operation without derating or forced cooling — reducing both capital expenditure on HVAC and the risk of heat-induced module failure during peak production campaigns.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the ABB DO820 3BSE008514R1?
Every DO820 3BSE008514R1 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects, premature component failure, and any performance deviation from ABB’s published specifications. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost to the buyer, including return logistics coordination.

Q2: How is each DO820 module tested before shipment?
All modules undergo a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, power-on functional verification, channel-level output signal testing, and communication bus handshake confirmation. Modules that fail any stage of testing are quarantined and not shipped. A test report is available upon request for customers with documented quality management system (QMS) requirements.

Q3: Is the DO820 3BSE008514R1 compatible with all AC800M controller versions?
The DO820 is compatible with all AC800M controller modules that support the S800 I/O bus, including the PM851, PM856, PM860, PM861, PM864, and PM866 series. It is also compatible with CI801 and CI854A communication adapter modules for PROFIBUS DP-based distributed I/O configurations. Customers integrating the DO820 into an existing AC800M system should verify their controller firmware version against ABB’s compatibility matrix — TOPNLMS technical support can assist with this verification prior to purchase.

Q4: Can TOPNLMS support long-term or repeat supply of the DO820 for ongoing maintenance programs?
Yes. TOPNLMS maintains dedicated stock of high-demand ABB AC800M I/O modules, including the DO820 3BSE008514R1, to support planned maintenance shutdowns, emergency spare parts programs, and multi-year supply agreements. Customers operating large AC800M fleets across multiple sites are encouraged to contact us to discuss volume pricing, reserved stock arrangements, and priority dispatch agreements that minimize lead time risk during unplanned outages.
