ABB DO801 3BSE020510R1 Replacement for S800 I/O

Product Overview

ABB DO801 3BSE020510R1 Replacement for S800 I/O: Seamless Transition from Legacy DCS to Modern Control Architecture

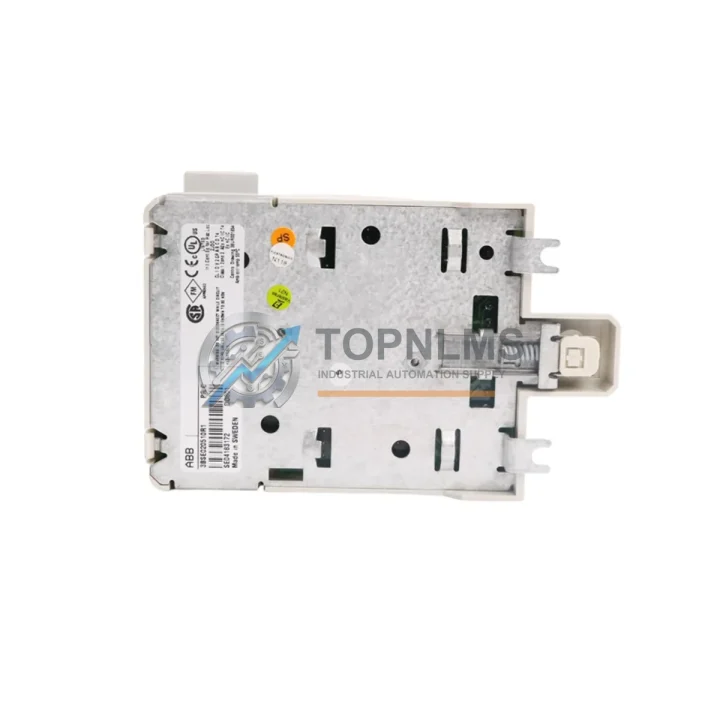

The ABB DO801 (part number 3BSE020510R1) is a 32-channel digital output module belonging to the S800 I/O series, designed for use with ABB’s AC800M Distributed Control System platform. As industrial facilities worldwide face the challenge of maintaining aging DCS infrastructure, the DO801 has become one of the most sought-after replacement and upgrade components for engineers managing brownfield modernization projects. Whether your existing DO801 has failed in service, been flagged as end-of-life by ABB, or you are proactively building a spare-parts inventory to reduce unplanned downtime, TOPNLMS supplies tested, verified units with a 12-month warranty and rapid international dispatch from Xiamen, China.

The S800 I/O platform was engineered for high-density, modular I/O expansion within AC800M controller cabinets. The DO801 module interfaces directly with the S800 I/O bus via the TB820V2 ModuleBus Modem or equivalent bus interface units, and occupies a standard S800 I/O module slot without requiring mechanical modification to the existing cabinet or backplane. For facilities running mixed I/O configurations — combining digital input modules such as the DI810 or DI811, analog output modules such as the AO810V2, and communication interface modules such as the CI854A — the DO801 slots into the existing architecture without firmware conflicts or address reassignment, provided the AC800M controller firmware is at a compatible revision level.

Migration from an earlier-generation S800 I/O configuration, or from a third-party PLC platform such as a Siemens S7-300 or Rockwell ControlLogix system, to an ABB AC800M architecture centered on the DO801 requires careful attention to several engineering dimensions. On the wiring side, the DO801 uses a standard 40-pin front connector compatible with the TB840A or TB845 terminal base units, allowing field cables to remain connected to the terminal base while the module itself is hot-swapped — a critical advantage for continuous-process industries where shutting down a production line for I/O replacement is not operationally acceptable. Engineers migrating from relay-output modules or from discrete-wired PLC output cards will need to verify load current ratings per channel (the DO801 supports 24 VDC sourcing outputs at up to 0.5 A per channel) and confirm that existing field devices — solenoid valves, motor contactors, indicator lamps — fall within these parameters.

On the programming side, migration to or replacement of a DO801 within an existing AC800M project requires no changes to the Control Builder M application logic, provided the module address and I/O list remain consistent. The DO801 is recognized automatically by the AC800M controller via the ModuleBus scan, and its 32 digital output channels map directly to the existing function block outputs in the application. For facilities migrating from a legacy ABB Advant OCS or MOD 300 DCS platform, the I/O signal list can be re-mapped to DO801 channels using ABB’s migration toolkit, significantly reducing the engineering hours required for cutover.

Communication protocol compatibility is a key consideration in any DCS modernization project. The DO801 communicates exclusively over the S800 ModuleBus — a proprietary ABB fieldbus — and does not natively support PROFIBUS DP, PROFINET, EtherNet/IP, or Modbus TCP. Facilities requiring integration with third-party SCADA systems or field devices using these protocols should plan for a CI854A PROFIBUS DP communication interface module or a CI873 PROFINET interface module at the controller level, rather than at the I/O module level. This architecture keeps the DO801’s role clearly defined as a field-side output driver, while the communication interface modules handle protocol translation upstream.

Physical installation space is rarely a constraint when replacing a like-for-like DO801 unit, as the module occupies a single S800 I/O slot and its dimensions are standardized across the S800 family. However, for facilities expanding their digital output capacity by adding DO801 modules to an existing S800 I/O station, the TB820V2 bus modem supports up to 12 S800 I/O modules per station, and additional stations can be daisy-chained using the S800 I/O bus extension cable. Power supply requirements for the DO801 are drawn from the S800 I/O station power supply — typically an SD821 or SD822 power supply unit — and engineers should verify that the aggregate load of all modules in the station does not exceed the power supply’s rated output current before adding additional DO801 units.

For facilities managing a planned shutdown or a phased migration, TOPNLMS recommends maintaining at least one DO801 spare unit per S800 I/O station as a buffer against unplanned failures. Our inventory is sourced from authorized distribution channels and decommissioned industrial sites, with each unit undergoing functional verification prior to dispatch. Units are shipped in anti-static packaging with full documentation, and our technical team is available to assist with pre-installation verification, firmware compatibility checks, and post-installation commissioning support.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DO801 replacement or S800 I/O station expansion rarely involves a single module in isolation. In practice, engineers sourcing a DO801 are typically also managing adjacent components within the same control cabinet or I/O station. The TB840A terminal base is the most common companion item — it is the physical mounting and wiring interface for the DO801, and a damaged or corroded terminal base is often the root cause of apparent module failures. Similarly, the TB820V2 ModuleBus Modem governs communication between the S800 I/O station and the AC800M controller, and a faulty modem will cause all modules in the station to go offline regardless of their individual health.

For facilities expanding digital input capacity alongside digital output upgrades, the DI810 (16-channel 24 VDC digital input) and DI811 (16-channel digital input with diagnostics) are the natural companions to the DO801 within the same S800 I/O station. Analog signal handling — for process variables such as temperature, pressure, or flow — is typically managed by the AO810V2 analog output module or the AI810 analog input module, both of which share the same S800 I/O slot form factor and terminal base ecosystem. For facilities integrating PROFIBUS DP field devices such as variable frequency drives, smart valve positioners, or remote I/O nodes, the CI854A PROFIBUS DP communication interface module connects at the AC800M controller level and works in parallel with the DO801’s digital output channels to provide a complete field interface solution.

Power supply integrity is critical in any S800 I/O station. The SD821 and SD822 power supply units are the standard choices for S800 I/O station power, and engineers should verify power budget headroom before adding DO801 modules to an existing station. For facilities requiring galvanic isolation between field signals and the control system — particularly in environments with high electrical noise, long cable runs, or hazardous area classifications — signal isolators and surge protection barriers should be installed between the DO801 output channels and the field devices. Programming and commissioning of the AC800M controller after a DO801 replacement is performed using ABB’s Control Builder M engineering software, connected via the AC800M’s built-in Ethernet service port or via a dedicated programming cable.

Retrofit Guidance FAQ

Q: Can I replace a failed DO801 without shutting down the entire S800 I/O station?
A: Yes. The DO801 supports hot-swap replacement when used with the TB840A or TB845 terminal base. Field wiring remains connected to the terminal base; only the module itself is removed and replaced. The AC800M controller will automatically re-initialize the new module upon insertion without requiring a controller restart.

Q: Do I need to modify my Control Builder M application after replacing a DO801?
A: No application changes are required for a like-for-like replacement, provided the module slot address remains the same. The AC800M recognizes the DO801 automatically via the ModuleBus scan and maps its channels to the existing I/O list.

Q: Is the DO801 compatible with PROFIBUS DP or EtherNet/IP field devices?
A: The DO801 itself communicates only over the S800 ModuleBus and does not support PROFIBUS DP or EtherNet/IP natively. Protocol integration with these fieldbus standards is handled at the AC800M controller level via the CI854A or CI873 communication interface modules.

Q: What terminal base is required for the DO801?
A: The DO801 is compatible with the TB840A and TB845 terminal bases. The TB840A is the standard choice for most installations. Ensure the terminal base is in good condition before installing a replacement module, as terminal base corrosion or damage can cause intermittent output faults.

Q: Can the DO801 be used in a safety-instrumented system (SIS)?
A: The standard DO801 (3BSE020510R1) is not SIL-rated and is not intended for use in safety-instrumented systems. ABB offers separate SIL-certified I/O modules for safety applications. Consult ABB’s functional safety documentation for SIS-compatible S800 I/O alternatives.

Q: How do I verify the firmware compatibility of a replacement DO801?
A: The DO801 is compatible with AC800M controller firmware version 5.0 and above. Firmware version can be checked in Control Builder M under the controller hardware configuration. If your AC800M is running an earlier firmware version, contact ABB or TOPNLMS for upgrade guidance before installing the replacement module.

Warranty Assurance

Every ABB DO801 3BSE020510R1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification process that includes power-on testing, channel output verification, and ModuleBus communication confirmation where test equipment permits. Units that do not pass verification are not shipped.

In the event of a warranty claim, TOPNLMS will arrange replacement or refund within the warranty period. Our standard response time for warranty inquiries is one business day. Replacement units are dispatched from Xiamen, China, with express international shipping options available for time-critical applications. We recommend that customers retain the original packaging and documentation for warranty claim purposes.

For bulk procurement, project-based orders, or standing spare-parts agreements, TOPNLMS offers volume pricing and priority allocation. Our team can assist with cross-referencing discontinued ABB part numbers, identifying compatible replacement modules, and preparing technical documentation packages for engineering approval workflows.
