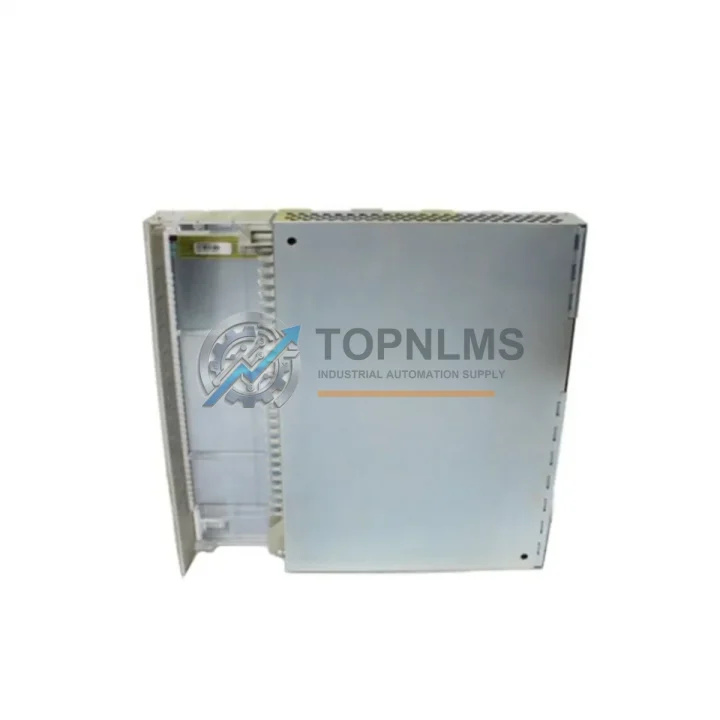

ABB DO620 3BHT300009R1 Ruggedized Digital Output Module

Product Overview

ABB DO620 3BHT300009R1 Ruggedized Digital Output Module: Industrial Resilience for Harsh Environments

The ABB DO620 3BHT300009R1 is a high-reliability digital output module engineered for the ABB Advant S100 I/O distributed control architecture. Designed to operate continuously in demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the deterministic switching performance that mission-critical control systems demand. Whether integrated into a DCS cabinet managing a refinery distillation column or embedded in a PLC rack controlling a continuous casting line, the DO620 3BHT300009R1 maintains output signal integrity without compromise.

Rugged Specifications Table

Comprehensive Protection Solutions

The DO620 3BHT300009R1 does not operate in isolation — it is a critical node within a broader ABB Advant control architecture. In a typical heavy-industry control cabinet, this digital output module works in concert with the ABB DI620 3BHT300008R1 digital input module to form a complete I/O pair, enabling bidirectional field signal management. Process interlocks and safety shutdown sequences are coordinated through the ABB AI620 3BHT300006R1 analog input module, which feeds real-time process values to the controller before the DO620 executes the corresponding output commands.

Power integrity for the entire S100 I/O rack is maintained by the ABB PS620 power supply module, which provides regulated 24 VDC bus voltage under fluctuating grid conditions common in mining and smelting facilities. Communication between the I/O rack and the supervisory controller is handled via the ABB CI626 communication interface module, ensuring low-latency, deterministic data exchange over the Advant fieldbus. In installations where functional safety is mandated — such as SIL-rated burner management or emergency shutdown systems — the DO620 3BHT300009R1 is typically paired with an ABB SM620 safety module that monitors output channel health and triggers protective actions on fault detection.

For facilities running mixed automation architectures, the DO620 integrates cleanly alongside ABB Advant Controller AC450 CPUs and is compatible with engineering tools used to configure ABB Master fieldbus segments. Terminal modules and marshalling panels within the same cabinet — including ABB TU620 terminal units — provide the physical wiring interface between the DO620’s output channels and field actuators such as solenoid valves, motor contactors, and indicator lamps. This modular, interoperable design means that replacing or upgrading a single DO620 3BHT300009R1 spare does not require reconfiguring the surrounding I/O architecture.

Application in Critical Infrastructure

In oil and gas upstream facilities, the ABB DO620 3BHT300009R1 controls wellhead valve actuators and compressor start/stop sequences where output signal reliability directly affects production uptime and personnel safety. Offshore platforms subject to salt-laden air, constant vibration from wave motion, and wide thermal cycling demand exactly the kind of galvanically isolated, solid-state output switching that this module provides.

In coal-fired and gas-fired power generation plants, the DO620 manages burner ignition sequences, turbine auxiliary systems, and cooling tower fan controls. The module’s ability to sustain reliable switching under high electromagnetic interference — generated by large transformers, bus bars, and variable-frequency drives operating nearby — makes it a preferred choice for power plant I&C engineers specifying Advant-based DCS upgrades or life-extension projects.

In water and wastewater treatment facilities, the DO620 3BHT300009R1 drives pump motor starters, chemical dosing valve actuators, and UV disinfection system controls. These environments combine high humidity, chemical vapors, and 24/7 continuous operation — conditions under which inferior output modules suffer premature solid-state relay degradation. The ABB Advant S100 I/O platform’s proven track record in water utilities across Europe and Asia makes the DO620 a trusted spare for plant engineers managing aging but still-operational Advant installations.

In metallurgical and steel production environments, where furnace heat radiation, heavy vibration from rolling mills, and pervasive iron dust create extreme stress on control hardware, the DO620 3BHT300009R1 maintains output channel integrity across multi-year continuous production campaigns. Its robust backplane connector and conformal-coated PCB construction resist the particulate contamination that causes intermittent faults in lesser-specified modules.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange a replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Return shipping instructions are provided within one business day.

Q2: How is each DO620 3BHT300009R1 tested before shipment?
Every unit undergoes a multi-point functional verification process prior to dispatch: power-on self-test, output channel continuity check across all 16 channels, backplane interface signal integrity verification, and visual inspection for physical damage or corrosion. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for customers with quality management system requirements.

Q3: Is this module compatible with all ABB Advant S100 I/O rack configurations?
Yes. The DO620 3BHT300009R1 is designed for the standard ABB Advant S100 I/O bus and is compatible with all S100 rack variants used with Advant Controllers AC110, AC160, AC410, and AC450. It is a direct form-fit-function replacement for any existing DO620 installation. No firmware changes or re-parameterization of the controller are required when substituting a like-for-like spare.

Q4: Can TOPNLMS guarantee long-term supply of this module for ongoing maintenance programs?
Yes. TOPNLMS maintains dedicated inventory of ABB Advant S100 I/O modules, including the DO620 3BHT300009R1, to support plant maintenance teams operating legacy Advant installations. We source from verified supply channels and hold buffer stock specifically for customers with annual maintenance contracts or multi-year spare parts agreements. Inquiries about volume pricing, reserved stock arrangements, or scheduled delivery programs can be directed to [email protected] or +86 18359293191.
