ABB DI814 3BUR001454R1 Original Industrial Spare S800 Compatible

Product Overview

ABB DI814 3BUR001454R1 Original Industrial Spare S800 Compatible: System Stability & Industrial Spare Maintenance Value

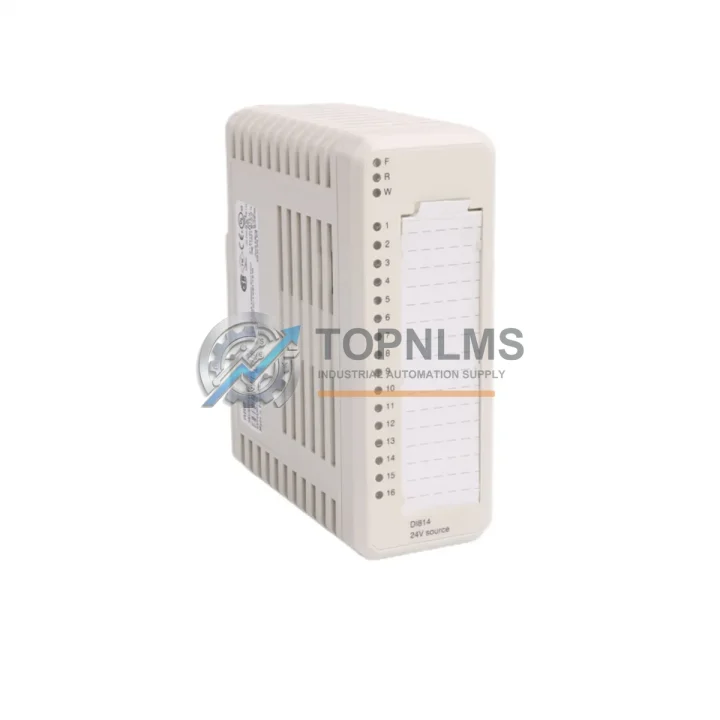

The ABB DI814 (3BUR001454R1) is an original digital input module designed for the ABB S800 I/O system, widely deployed in process automation, power generation, oil & gas, chemical, and heavy manufacturing facilities worldwide. As a core field I/O component within the ABB AC800M Distributed Control System (DCS), the DI814 handles 16-channel digital input acquisition, converting field-level discrete signals into structured data for the controller — making it indispensable for real-time process monitoring, interlock logic, and safety-critical feedback loops.

When a DI814 module fails or degrades, the consequences extend far beyond a single I/O point. Entire process loops dependent on field device status — valve position feedback, motor run signals, limit switch inputs, and emergency shutdown triggers — can be compromised. Unplanned downtime in industrial facilities carries significant operational and financial risk. Maintaining a verified original spare of the ABB DI814 3BUR001454R1 in your critical spares inventory is one of the most cost-effective strategies for protecting system uptime and ensuring rapid recovery from unexpected failures.

At TOPNLMS, every DI814 unit is sourced from verified supply channels, individually tested for electrical integrity and communication handshake with S800 I/O bus infrastructure, and shipped with a 12-month warranty. Our industrial spare supply model is built for maintenance engineers, procurement teams, and MRO managers who cannot afford to wait weeks for OEM lead times during a critical outage.

Critical Technical Specs Table

Preventive Maintenance Strategy

Experienced maintenance engineers know that a digital input module failure rarely occurs in isolation. The ABB DI814 operates within a tightly integrated S800 I/O architecture, and its reliability depends on the health of surrounding components in the same control cabinet and I/O station. A structured preventive maintenance approach — rather than reactive replacement — significantly reduces the risk of cascading failures and unplanned shutdowns.

During scheduled maintenance windows or annual turnarounds, it is strongly recommended to inspect and, where appropriate, pre-stock spares for the following components alongside the DI814:

ModuleBus Modem and I/O Base Units: The TB820V2 and TB840A ModuleBus modems serve as the communication backbone for all S800 I/O modules in a station. If the modem develops intermittent faults, multiple I/O modules — including the DI814 — may report spurious errors or go offline simultaneously. Inspecting the modem’s LED status indicators and verifying bus communication integrity during each maintenance cycle is essential.

Digital Output Modules (DO814, DO815): In most control cabinets, digital input and output modules are deployed in pairs — inputs reading field device status, outputs driving actuators and relays. The ABB DO814 and DO815 digital output modules share the same S800 I/O platform and base unit infrastructure as the DI814. Replacing or inspecting one without auditing the other leaves a gap in your maintenance coverage.

Analog Input Modules (AI810, AI820, AI830A): Many process loops combine discrete and analog signals. The ABB AI810 and AI820 analog input modules are frequently installed in the same I/O station as the DI814, handling 4–20 mA transmitter signals for temperature, pressure, and flow. During a DI814 replacement, it is prudent to verify that adjacent analog modules are within calibration tolerance and show no signs of channel drift.

Power Supply Modules (SD821, SD822, SD823): S800 I/O stations are powered by dedicated ABB SD821 / SD822 / SD823 power supply modules. Voltage ripple, aging capacitors, or thermal stress in the power supply can cause intermittent resets across all modules in the station — symptoms that are often misdiagnosed as individual module failures. Verifying power supply output voltage and replacing aging units proactively is a high-value maintenance action.

Communication Modules (CI854A, CI857, CI858): The ABB CI854A (PROFIBUS DP) and CI857 (Industrial Ethernet) communication interface modules connect the AC800M controller to field networks and remote I/O. Communication module degradation can manifest as intermittent I/O timeouts that appear to originate from field modules like the DI814. Confirming communication module firmware versions and physical connector integrity during maintenance rounds prevents misdiagnosis.

Controller Processor Modules (PM856, PM860, PM864): The ABB PM856 and PM864 processor modules are the computational core of the AC800M system. While processor modules have longer mean-time-between-failure (MTBF) ratings than I/O modules, maintaining a cold spare — particularly for aging systems beyond 10 years of service — is a prudent risk mitigation strategy for facilities where the AC800M controls critical processes.

Terminal Blocks and Field Wiring Connectors: Loose or corroded terminal connections at the field wiring interface are a leading cause of intermittent digital input faults. During DI814 replacement, always inspect the associated terminal blocks, cable shields, and grounding connections. Replacing worn terminal blocks and re-torquing field wiring connections takes minutes but can prevent hours of fault-tracing later.

A well-maintained S800 I/O station — with verified spares for the DI814, its companion I/O modules, power supplies, and communication interfaces — provides the operational resilience that modern industrial facilities demand. TOPNLMS maintains stock of S800 I/O series components to support rapid dispatch for both planned maintenance and emergency replacement scenarios.

Strategic Replacement Solutions

The ABB DI814 3BUR001454R1 is a mature product within the S800 I/O portfolio, and many facilities operating AC800M-based DCS systems are managing aging hardware that is no longer available through standard OEM channels with short lead times. This creates a critical supply chain vulnerability: when a DI814 fails, procurement teams may face OEM lead times of 8–16 weeks or longer — an unacceptable timeline for a production-critical control system.

TOPNLMS addresses this gap by maintaining verified original stock of the DI814 and related S800 I/O components, enabling same-week dispatch for qualified orders. Our pre-shipment testing protocol verifies module power-on behavior, channel integrity, and ModuleBus communication response before any unit leaves our facility. Each module is packaged in anti-static protective packaging with full traceability documentation.

For facilities managing the transition from older S800 I/O hardware to newer ABB Ability™ System 800xA infrastructure, the DI814 remains fully compatible with both legacy AC800M configurations and current 800xA engineering environments. This backward compatibility means that replacing a failed DI814 with an original 3BUR001454R1 unit requires no software reconfiguration, no I/O mapping changes, and no controller restart beyond the standard module hot-swap procedure supported by the S800 I/O architecture.

For facilities operating mixed-generation control systems — where some cabinets have been upgraded while others retain original S800 I/O hardware — maintaining a standardized spare parts list that includes the DI814 alongside its companion modules simplifies procurement, reduces inventory complexity, and ensures that maintenance teams always have the right part available at the right time.

Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Combined with pre-shipment testing and traceable sourcing, this provides procurement and maintenance managers with the confidence needed to approve spare parts purchases without extended vendor qualification processes.

Support FAQ

Q1: Is the ABB DI814 3BUR001454R1 a direct drop-in replacement for my existing S800 I/O station?
Yes. The DI814 3BUR001454R1 is the original ABB part number for this module and is fully compatible with all S800 I/O base units (TB820V2, TB840A, TB845) and AC800M controller configurations. No software changes or I/O remapping are required. The module supports hot-swap replacement in redundant S800 I/O configurations, minimizing process disruption during replacement.

Q2: What testing is performed before shipment, and what does the 12-month warranty cover?
Every DI814 unit supplied by TOPNLMS undergoes pre-shipment functional testing including power-on verification, channel continuity checks, and ModuleBus communication handshake validation. The 12-month warranty covers functional failures and manufacturing defects under normal industrial operating conditions. Warranty claims are supported by our technical team with replacement dispatch prioritized for production-critical applications.

Q3: How should I manage DI814 spare parts inventory for a facility with multiple AC800M systems?
For facilities with 3 or more AC800M controllers or S800 I/O stations, we recommend maintaining a minimum of 2 DI814 spares per site. Given the module’s role in discrete input acquisition for interlocks and safety loops, a single-unit spare strategy carries meaningful risk if two failures occur within a short interval. Pairing DI814 spares with DO814 digital output modules and SD821/SD822 power supply spares provides comprehensive coverage for the most failure-prone S800 I/O components.

Q4: Can TOPNLMS supply other ABB S800 I/O modules and AC800M components?
Yes. TOPNLMS maintains stock of a broad range of ABB S800 I/O modules including analog input modules (AI810, AI820, AI830A), digital output modules (DO814, DO815), power supply modules (SD821, SD822, SD823), and communication interface modules (CI854A, CI857, CI858). AC800M processor modules (PM856, PM860, PM864) are also available subject to stock confirmation. Contact our team at [email protected] for availability and lead time on specific part numbers.
