ABB DI801 3BSE020508R1 Original Industrial Spare S800 Compatible: Ensuring System Stability in Critical DCS Environments

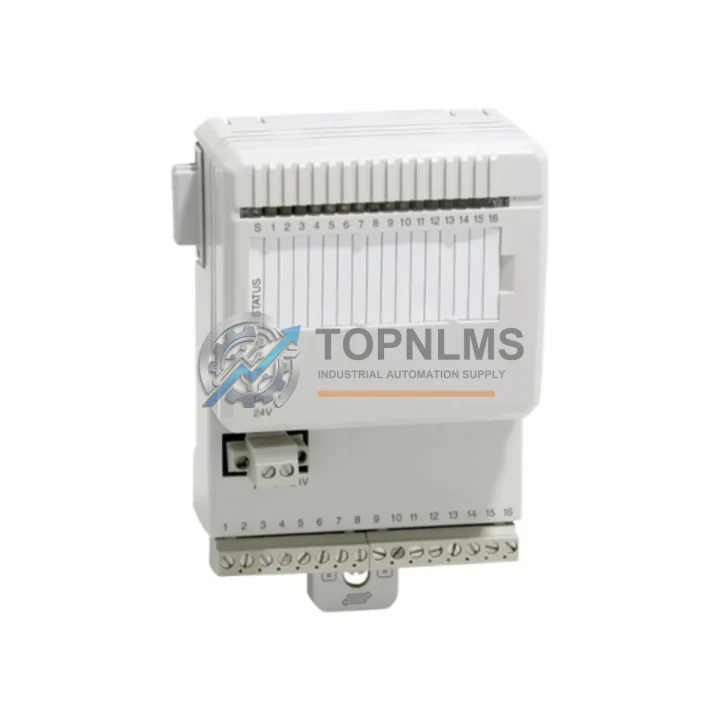

The ABB DI801 (3BSE020508R1) is an original digital input module designed for the ABB S800 I/O system, engineered to operate seamlessly within AC800M Distributed Control System (DCS) architectures. In process-critical industries — including oil & gas, chemical processing, power generation, pulp & paper, and pharmaceutical manufacturing — the integrity of every I/O module in the control cabinet directly determines plant uptime. A failed or degraded digital input module can cascade into unplanned shutdowns, production losses, and costly emergency procurement. Stocking a verified original DI801 3BSE020508R1 as a ready spare is one of the most cost-effective decisions a maintenance team can make.

This module accepts 24 VDC digital input signals and interfaces directly with the AC800M controller via the S800 I/O bus, providing reliable signal acquisition for field devices such as limit switches, proximity sensors, push buttons, and relay contacts. Its compact DIN-rail form factor and hot-swap capability (when the system is configured accordingly) minimize intervention time during scheduled or emergency maintenance windows.

Critical Technical Specs

Preventive Maintenance Strategy for AC800M DCS Systems

When a maintenance team schedules a planned shutdown or responds to a fault alarm on an AC800M-based DCS, the DI801 3BSE020508R1 is rarely the only component that warrants attention. A disciplined preventive maintenance approach treats the entire S800 I/O station as an integrated system, where the health of each module affects overall signal integrity and controller reliability.

During a cabinet inspection, technicians should simultaneously verify the condition of the TB820 or TB840 base units on which the DI801 is mounted — worn or corroded base unit contacts are a common source of intermittent input faults that are often misdiagnosed as module failure. The CI854 or CI857 communication interface modules that link the S800 I/O station to the AC800M controller via PROFIBUS or Ethernet should be checked for firmware currency and connection integrity; a degraded communication module can cause the entire I/O station to drop offline, masking individual channel faults.

On the power supply side, the SS822 or SS823 power supply modules feeding the S800 I/O bus should be load-tested during any planned outage. An aging power supply operating near its rated capacity is a leading cause of unexplained module resets and diagnostic alarms. Pairing a replacement DI801 with a verified power supply spare eliminates the most common root causes of recurring input faults in a single maintenance action.

For digital output circuits in the same control cabinet, the DO801 (3BSE020510R1) and DO802 output modules share the same S800 I/O platform and should be inspected on the same maintenance cycle. Similarly, analog signal chains involving AI801, AI810, or AI820 analog input modules and AO801 or AO810 analog output modules benefit from simultaneous verification, particularly in process loops where a digital interlock (handled by the DI801) gates an analog control output.

Field wiring terminations at the TB806 or TB807 terminal base units should be re-torqued and inspected for insulation degradation during every major maintenance interval. Loose terminations account for a disproportionate share of nuisance input alarms in aging S800 I/O installations. Where signal isolation is required between field devices and the I/O module, signal isolators or galvanic separators in the 24 VDC input circuit should be tested for drift and replaced on a scheduled basis rather than reactively.

Finally, the AC800M processor module itself — whether a PM856, PM860, or PM864 — should have its battery backup verified and its diagnostic logs reviewed during any shutdown that involves S800 I/O work. Coordinating I/O module replacement with a controller health check maximizes the value of each maintenance window and reduces the probability of a secondary fault triggering an unplanned outage shortly after restart.

Strategic Replacement Solutions

The DI801 3BSE020508R1 is a direct, plug-compatible replacement for any existing DI801 installation within the S800 I/O ecosystem. No hardware reconfiguration or software parameter changes are required when replacing a like-for-like module — the AC800M controller automatically recognizes the replacement module upon insertion and resumes normal operation, minimizing restart time and eliminating the risk of configuration errors during emergency replacements.

For facilities operating legacy AC800M systems that are no longer covered by ABB’s standard support lifecycle, maintaining a local stock of critical S800 I/O modules — including the DI801 — is the most reliable strategy for extending system life without committing to a full DCS migration. A single unplanned shutdown in a process plant typically costs far more than a comprehensive spare parts inventory. Procurement teams that establish min/max stock levels for high-criticality modules like the DI801 consistently report lower mean time to repair (MTTR) and reduced emergency freight costs compared to just-in-time procurement strategies.

Each DI801 3BSE020508R1 unit supplied by TOPNLMS is sourced as an original ABB component, functionally tested prior to shipment, and covered by a 12-month warranty. Units are packaged to IEC transport standards to prevent ESD damage and physical shock during international logistics. Expedited shipping options are available for urgent maintenance requirements.

Support FAQ

Q1: Is this DI801 3BSE020508R1 an original ABB module or a compatible substitute?
This is an original ABB DI801 3BSE020508R1 module. It is not a third-party compatible or remanufactured substitute. Each unit is verified against ABB’s original part specifications before shipment.

Q2: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers functional defects under normal operating conditions consistent with ABB’s published specifications for the S800 I/O series. If a defect is identified within the warranty period, contact TOPNLMS at [email protected] with your order reference and a description of the fault. Warranty claims are processed within 5 business days.

Q3: How do I verify compatibility with my existing AC800M DCS configuration before installation?
The DI801 3BSE020508R1 is compatible with all standard S800 I/O base units (TB820, TB840) and all AC800M processor variants (PM851 through PM866). Compatibility can be confirmed by cross-referencing the existing module label against the part number 3BSE020508R1. No firmware or software changes are required for a like-for-like replacement.

Q4: What pre-shipment testing is performed on each unit?
Each DI801 3BSE020508R1 undergoes functional testing of all 8 digital input channels prior to shipment. Test records are available upon request. Units are shipped in anti-static packaging with physical protection conforming to standard industrial component transport requirements.
