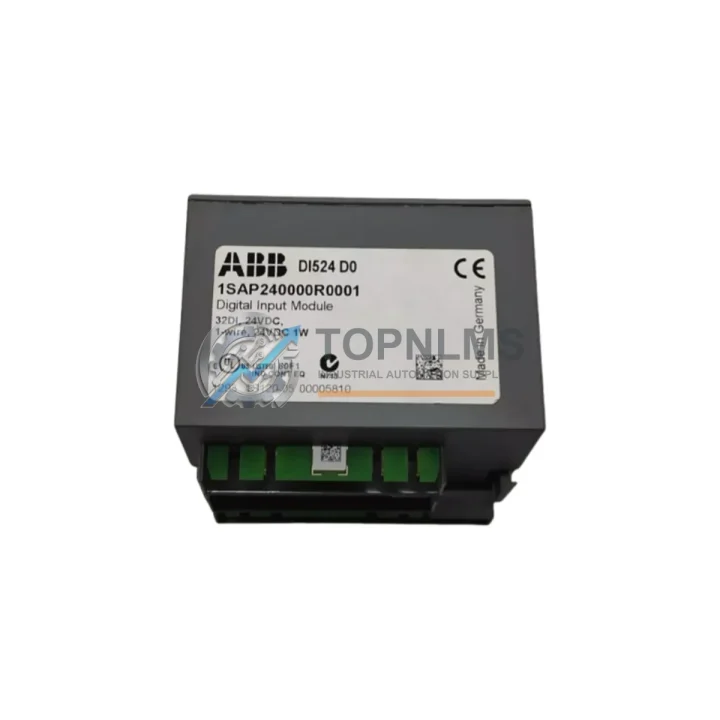

ABB DI524 1SAP240000R0001 Ruggedized Digital Input Module: Industrial Resilience for Harsh Environments

The ABB DI524 (Part No. 1SAP240000R0001) is a high-density, 32-channel 24 VDC digital input module engineered for the ABB AC500 PLC platform — one of the most widely deployed programmable logic controller families in heavy industry worldwide. Designed to operate reliably in environments characterized by extreme temperature swings, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference, the DI524 delivers the signal integrity and uptime that critical industrial processes demand.

In continuous production environments — from petrochemical refineries and offshore platforms to underground mining operations and high-voltage power substations — field I/O modules are the first line of defense between the physical process and the control system. The DI524 is built to meet that challenge. Its robust housing, wide operating temperature range, and galvanically isolated input channels ensure that even in the presence of inductive load switching, variable-frequency drive (VFD) noise, or ground potential differences across large plant footprints, every digital signal is captured accurately and transmitted to the CPU without corruption.

Rugged Specifications Table

Comprehensive Protection Solutions

The DI524 does not operate in isolation — it is a critical node within a broader AC500-based control architecture. In a typical heavy-industry control cabinet, the DI524 mounts directly onto the AC500 I/O bus alongside companion modules such as the ABB DO524 (1SAP220200R0001) 32-channel digital output module, which drives actuators, solenoid valves, and motor contactors. For analog process variables — pressure, temperature, flow — the ABB AI523 (1SAP250200R0001) analog input module works in parallel with the DI524 to deliver a complete mixed-signal I/O solution on a single backplane.

Power integrity is foundational to reliable I/O operation. The DI524 is typically powered through the ABB CP502 (1SAP120100R0270) power supply module, which provides regulated 24 VDC to the I/O bus and protects against voltage transients common in industrial environments. In installations where safety-rated shutdown is required, the DI524 integrates seamlessly with the ABB SF500 safety module series, enabling SIL 2-compliant emergency stop and safety gate monitoring within the same AC500 rack.

Communication between the AC500 rack and supervisory SCADA or DCS systems is handled by fieldbus coupler modules such as the ABB CI502-PNIO (1SAP221100R0001) PROFINET I/O coupler or the ABB CI504-PNIO for larger distributed I/O configurations. In legacy installations using PROFIBUS DP, the ABB CI501-PBUS (1SAP221000R0001) coupler ensures backward compatibility without requiring a full system redesign. For Modbus TCP environments, the ABB CI511-ETHCAT EtherCAT coupler extends the AC500 I/O bus across high-speed Ethernet backbones.

Terminal connectivity for the DI524’s 32 input channels is managed through the ABB TU515 (1SAP212000R0001) or TU516 (1SAP212100R0001) terminal units, which provide screw or spring-clamp field wiring connections and allow the DI524 module to be hot-swapped without disconnecting field cables — a critical feature for continuous-process industries where planned downtime is measured in minutes, not hours.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the DI524 monitors discrete field signals from wellhead pressure switches, pipeline isolation valve position feedback, and emergency shutdown (ESD) system inputs. Its galvanic isolation and EMI immunity are essential in environments where high-voltage switching equipment and long cable runs create significant electrical noise. The module’s wide operating temperature range allows deployment in both arctic tundra installations and desert processing facilities without hardware modification.

In underground coal and metal mining, the DI524 is deployed in explosion-proof control enclosures to monitor conveyor belt status, ventilation fan run-feedback, and methane detector alarm inputs. The module’s vibration and shock ratings — tested to IEC 60068-2-6 and IEC 60068-2-27 — ensure reliable operation despite the constant mechanical stress of mining equipment operation.

In thermal and hydroelectric power generation, the DI524 forms part of the turbine control and protection system, capturing digital status signals from generator breakers, transformer tap changers, and cooling system flow switches. Its deterministic scan time and high channel density reduce cabinet footprint while maintaining the signal resolution required for grid-synchronization logic.

In municipal water treatment and wastewater management, the DI524 monitors pump run/fault status, valve open/closed feedback, and level switch inputs across geographically distributed pump stations. Its ability to operate reliably in high-humidity environments — up to 95% relative humidity non-condensing — makes it well-suited for wet process areas where condensation is a persistent challenge.

In metallurgical and steel production facilities, the DI524 withstands the intense electromagnetic interference generated by arc furnaces, induction heaters, and large DC drive systems. Its IEC 61000-4 series EMC compliance ensures that input signal states are read correctly even when the module is installed in close proximity to high-power electrical equipment.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the ABB DI524 1SAP240000R0001?
Every ABB DI524 module shipped by TOPNLMS is covered by a 12-month quality warranty from the date of delivery. If the module exhibits any functional defect under normal operating conditions within this period, TOPNLMS will arrange replacement or repair at no additional cost. Our warranty process is straightforward — contact us directly at [email protected] with your order reference and a description of the fault.

Q2: How is each DI524 module tested before shipment?
All modules undergo a pre-shipment functional inspection that includes visual examination for physical damage, verification of part number and firmware label against the order specification, and a power-on continuity check. Modules sourced from authorized distribution channels are accompanied by original manufacturer packaging and documentation where available. We do not ship modules that fail inspection.

Q3: Is the DI524 1SAP240000R0001 compatible with all AC500 CPU generations?
The DI524 is compatible with the full range of AC500 V2 and V3 CPU modules, including the PM554, PM564, PM572, PM581, PM582, PM591, and PM592 series. It is not compatible with the legacy AC31 or S500 platforms. If you are integrating the DI524 into an existing AC500 installation and are uncertain about firmware compatibility, our technical team can advise based on your CPU firmware version and system configuration.

Q4: Can TOPNLMS support long-term or repeat procurement of the DI524?
Yes. TOPNLMS maintains standing inventory of high-demand AC500 I/O modules including the DI524, and can support scheduled blanket orders for MRO (maintenance, repair, and operations) programs. For OEM integrators and system integrators requiring consistent supply across multiple project phases, we offer priority allocation and lead-time commitment agreements. Contact our sales team to discuss your procurement schedule.
