ABB DCP02 P37211-4-0369654 Replacement for MOD 300

Product Overview

ABB DCP02 P37211-4-0369654 Replacement for MOD 300: Smooth Migration from Legacy DCS to Modern Control

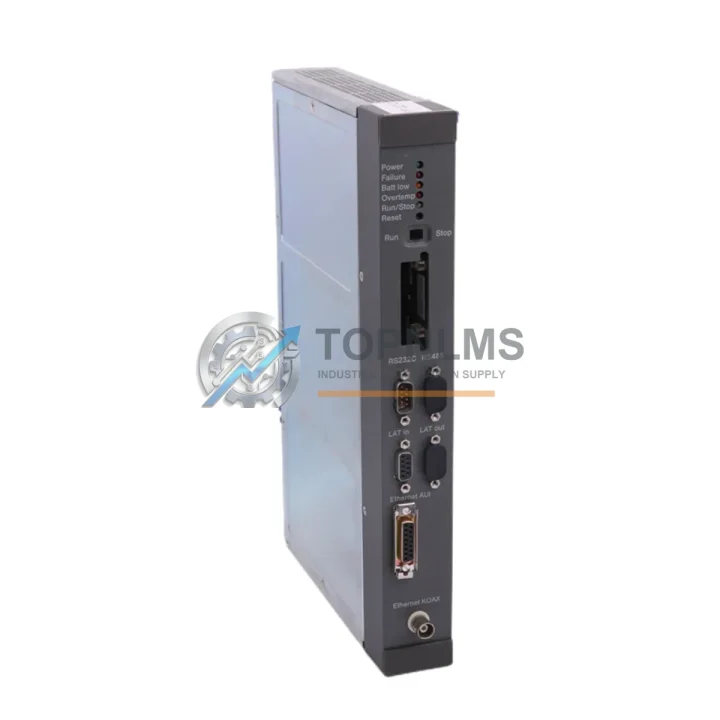

The ABB DCP02 P37211-4-0369654 is a central processing unit module designed for the ABB Advant MOD 300 Distributed Control System platform. As ABB progressively phases out legacy Advant hardware, many process plants, power generation facilities, and chemical production sites are facing urgent decisions: continue sourcing scarce spare parts, or execute a structured migration to a supportable architecture. This page is designed to support both paths — immediate replacement procurement and long-term upgrade planning.

The DCP02 module (part number P37211-4-0369654) serves as the primary CPU in MOD 300 controller stations, executing control strategies, managing I/O communication, and coordinating real-time process data across the Advant fieldbus. When a DCP02 fails or reaches end-of-life, the entire controller station goes offline, making rapid replacement critical to plant continuity. TOPNLMS maintains verified stock of the DCP02 P37211-4-0369654, fully tested and ready for immediate dispatch from our Xiamen warehouse.

For facilities operating legacy MOD 300 systems, the DCP02 is typically installed alongside the DSCS140 communication supervisor module and the DSMB176 motherboard backplane. These components share the same 19-inch rack enclosure and rely on the Advant Fieldbus 100 (AF100) protocol for inter-module communication. When replacing the DCP02, it is essential to verify that the DSCS140 firmware version is compatible with the replacement unit’s hardware revision, as mismatches can cause initialization failures during cold-start sequences.

Many sites running MOD 300 also operate DSDI110A digital input modules and DSDO110A digital output modules on the same controller rack. These I/O modules communicate with the DCP02 via the internal S100 I/O bus. A direct DCP02 replacement preserves all existing I/O wiring, terminal block assignments, and field instrument connections without modification — a critical advantage when minimizing planned outage windows. No re-termination of field cables is required, and existing loop drawings remain valid.

For sites considering a phased migration rather than a like-for-like swap, the DCP02 replacement can serve as a bridge solution while engineering teams prepare the transition to ABB’s AC 800M controller platform. The AC 800M PM864A processor module represents the modern successor architecture, offering IEC 61131-3 programming compatibility and Profibus DP / FOUNDATION Fieldbus H1 connectivity. However, migrating to AC 800M requires re-engineering of control logic, I/O marshalling, and HMI integration — a project typically spanning 6 to 18 months. Procuring a tested DCP02 replacement extends the operational life of the existing MOD 300 system during this transition period, avoiding unplanned shutdowns.

Power supply compatibility is another key consideration. The DCP02 module operates on 24 VDC supplied by the rack power supply unit, typically the DSQC604 or equivalent MOD 300 PSU. Before installing a replacement DCP02, verify that the rack PSU output voltage is within specification (24 VDC ±5%) and that the PSU’s current capacity is sufficient for the full rack load including all I/O modules. An undersized or aging PSU is a common root cause of intermittent DCP02 faults and should be inspected as part of any CPU replacement procedure.

Communication protocol continuity is fully maintained with a direct DCP02 replacement. The module supports the Advant AF100 fieldbus at 1 Mbit/s, and all existing node addresses, controller tags, and network topology remain unchanged. Sites using the MOD 300 MasterBus 300 (MB300) for plant-wide DCS integration will experience no disruption to inter-controller communication after a DCP02 swap, provided the replacement unit is configured with the same node ID and firmware parameters as the original.

For facilities that have already begun migrating portions of their control system to ABB 800xA, the DCP02 can continue to operate as a legacy subsystem integrated via the 800xA Advant OCS Connect interface. This allows the MOD 300 controller to appear as a managed object within the 800xA System, enabling unified alarm management and historian integration without requiring immediate hardware replacement of the entire controller station.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DCP02 replacement or MOD 300 migration rarely involves a single module in isolation. In practice, the DCP02 operates as the orchestrating processor for a tightly integrated set of hardware components. During a planned replacement or system upgrade, engineers typically inspect and often simultaneously replace the DSCS140 communication supervisor, which manages AF100 fieldbus traffic and must be firmware-matched to the CPU. The DSMB176 backplane motherboard should be inspected for corrosion, connector wear, and capacitor aging, as a degraded backplane can cause intermittent faults even with a new CPU installed.

On the I/O side, DSDI110A digital input modules and DSDO110A digital output modules are the most common field interface components sharing the S100 bus with the DCP02. If the site has analog process signals, DSAI130A analog input modules and DSAO130A analog output modules will also be present in the rack. These modules do not require replacement during a CPU swap, but their terminal block connections and field wiring should be verified for integrity as part of the maintenance window.

For sites using FOUNDATION Fieldbus H1 or Profibus DP field devices, a DSFB01 or equivalent fieldbus interface module may be installed in the MOD 300 rack. These communication modules are unaffected by a DCP02 replacement and continue to operate normally after the CPU is swapped and the controller station is restarted. Similarly, any DSPC172 or DSPC176 processor communication modules used for inter-controller data exchange via MB300 will resume normal operation after the replacement DCP02 is initialized with the correct node configuration.

For facilities planning a longer-term migration to a modern DCS platform, the DCP02 replacement provides the operational stability needed to execute a structured transition. Engineering teams can use the extended runtime to complete control logic conversion, HMI re-engineering, and factory acceptance testing of the new system — without the pressure of an unplanned outage driving hasty decisions.

Retrofit Guidance FAQ

Q: Can I install the replacement DCP02 without modifying existing field wiring?
A: Yes. The DCP02 P37211-4-0369654 is a direct form-fit-function replacement for the original module. All field wiring, terminal block assignments, and I/O module connections remain unchanged. No re-termination is required.

Q: Do I need to reload the control program after replacing the DCP02?
A: Yes. The DCP02 does not retain the application program in non-volatile memory across a hardware swap. After installing the replacement module, the control program must be downloaded from the Advant Engineer workstation using the MOD 300 programming environment. Ensure you have a current, verified backup of the application database before beginning the replacement procedure.

Q: Is the replacement DCP02 compatible with my existing DSCS140 communication supervisor?
A: Compatibility depends on the hardware revision and firmware version of both modules. TOPNLMS can provide the hardware revision details of the replacement DCP02 prior to shipment. We recommend verifying compatibility with your DSCS140 firmware version before installation. In most cases, modules within the same hardware generation are fully compatible.

Q: Will my AF100 fieldbus network configuration be preserved after the CPU replacement?
A: Yes, provided the replacement DCP02 is configured with the same AF100 node address and network parameters as the original. The fieldbus network topology, node addresses, and inter-controller communication via MB300 are stored in the application database, not in the CPU hardware itself.

Q: How much physical space does the DCP02 require in the MOD 300 rack?
A: The DCP02 occupies a standard single-width slot in the 19-inch MOD 300 rack enclosure. It is mechanically identical to the original module and requires no additional rack space or mounting hardware modifications.

Q: Can the replacement DCP02 be used in a system integrated with ABB 800xA via Advant OCS Connect?
A: Yes. The replacement DCP02 operates identically to the original within the MOD 300 controller station and is fully compatible with the 800xA Advant OCS Connect integration interface. No changes to the 800xA system configuration are required.

Warranty Assurance

Every ABB DCP02 P37211-4-0369654 module supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-stage inspection process including visual examination for physical damage, connector integrity verification, board-level inspection for corrosion or component damage, and functional power-on testing where applicable. Units that do not meet our quality standards are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides replacement or refund support with a target response time of 1 business day. Warranty claims are processed via email at [email protected]. Customers are required to provide the order number, a description of the fault observed, and photographic documentation of the module and its installation environment. Return shipping for warranty replacements is coordinated by TOPNLMS.

For urgent replacement requirements, TOPNLMS offers expedited shipping from our Xiamen warehouse to destinations worldwide. Standard export documentation, including commercial invoice, packing list, and certificate of origin, is provided with every shipment. Customers requiring specific customs documentation or export compliance paperwork should contact us prior to order placement.

Our procurement guarantee covers authenticity, accurate part number matching, and condition as described. We do not sell modules with undisclosed repairs, re-marked part numbers, or counterfeit components. If you have any questions about the provenance or condition of a specific unit prior to purchase, our technical team is available to provide additional documentation and inspection photographs.
