ABB DATX110 3ASC25H209 Replacement/Upgrade for ADVANT

Product Overview

ABB DATX110 3ASC25H209 Replacement/Upgrade Solution for ADVANT: Smooth Migration from Legacy DCS to Modern Control Architecture

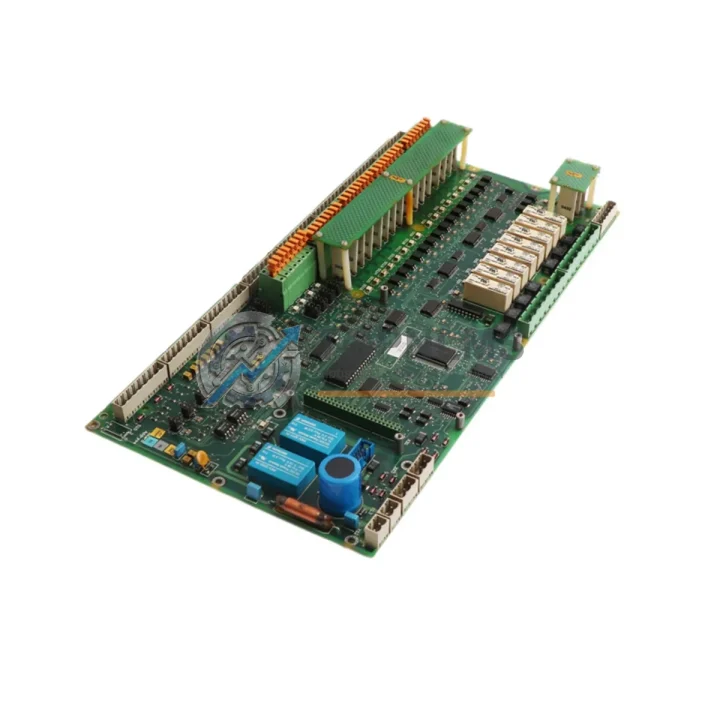

The ABB DATX110 (Part No. 3ASC25H209) is a critical I/O board within the ABB ADVANT series Distributed Control System (DCS). As industrial facilities worldwide face the challenge of maintaining aging ADVANT OCS, Master, and Controller 70/110/160 platforms, sourcing a verified, tested replacement for the DATX110 has become a top procurement priority. TOPNLMS stocks this module with full functional verification, ready for immediate dispatch to minimize your plant downtime.

Whether you are executing a like-for-like emergency swap, a phased system modernization, or a full migration from an end-of-life ADVANT architecture to a current ABB System 800xA or AC500 platform, the DATX110 3ASC25H209 serves as the anchor I/O board that bridges your existing field wiring, termination assemblies, and process signals to the controller backbone without requiring rewiring or signal recalibration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DATX110 replacement or ADVANT system migration rarely involves a single module in isolation. In practice, field engineers and procurement teams sourcing the DATX110 3ASC25H209 are typically also evaluating adjacent components within the same control cabinet or rack assembly.

On the controller side, the DATX110 interfaces directly with the ABB DSPC172 or DSPC176 processor boards that manage scan cycle execution and I/O polling across the ADVANT rack. If the root cause of the DATX110 failure is traced to a corrupted backplane signal or a degraded rack bus, the DSMB127 motherboard assembly and the DSAI130 analog input module should be inspected simultaneously, as these components share the same S100 I/O bus segment.

For facilities migrating from ADVANT to ABB System 800xA, the DATX110 is often retained during the transition phase while the AC800M PM864 or PM866 controller modules are introduced as the new processing backbone. During this hybrid operation period, the CI854 PROFIBUS DP communication interface module is commonly deployed to bridge legacy field devices — including HART transmitters, valve positioners, and motor drives — to the new 800xA architecture without replacing field instrumentation.

On the power distribution side, the DSQC 604 24 VDC power supply unit and the SS822 redundant power supply module are standard companions in ADVANT cabinets. Verifying their output stability before installing a replacement DATX110 is a recommended pre-commissioning step, as undervoltage conditions are a common cause of I/O board failure in aging installations.

For field signal conditioning and isolation, the DSAI155 analog input termination unit and DSDO115 digital output module are frequently sourced alongside the DATX110 when customers are performing a full I/O tray refresh. Signal isolators and surge protection barriers installed at the marshalling cabinet level should also be tested during the same maintenance window to prevent repeat failures.

If your migration scope includes HMI modernization, the legacy ABB OperateIT or MasterView 800 operator stations can be replaced with current ABB CP600 series HMI panels, which support both PROFIBUS DP and Modbus TCP connectivity and can be configured to display the same process variables previously managed through the ADVANT I/O layer.

TOPNLMS maintains stock of these complementary ADVANT and 800xA components and can assist with multi-line procurement to consolidate shipping, reduce lead time, and simplify incoming inspection at your facility.

Retrofit Guidance FAQ

Q: Can I install the DATX110 3ASC25H209 without modifying existing field wiring?
A: Yes. The DATX110 uses the same ADVANT termination unit interface (NTAI/NTDI/NDIO series) as previous revisions. Field cables connect to the termination unit, not directly to the I/O board, so a board swap does not require any rewiring at the marshalling cabinet or junction box level.

Q: Do I need to re-download the I/O configuration after replacing the DATX110?
A: For a like-for-like replacement within the same ADVANT rack slot, the controller retains the existing I/O map. A cold restart of the controller after module insertion is typically sufficient. If the module is installed in a new slot position, a partial configuration download via Control Builder M or MasterView 800 may be required to reassign the I/O addresses.

Q: Is the DATX110 compatible with PROFIBUS DP field devices?
A: The DATX110 itself is an I/O board operating on the ADVANT S100/S800 internal bus. PROFIBUS DP connectivity to field devices is managed by a dedicated communication interface module (e.g., CI854 or DSSB146) installed in the same rack. The DATX110 replacement does not affect PROFIBUS DP configuration.

Q: What are the physical space requirements for installation?
A: The DATX110 3ASC25H209 occupies a standard single-width ADVANT module slot. No additional DIN rail space or cabinet modification is required. The module slides into the existing rack guide rails and locks with the standard ADVANT front-panel latch mechanism.

Q: How do I verify the module is functioning correctly after installation?
A: After insertion and controller restart, check the module status LED indicators on the front panel. Green steady indicates normal operation. Use the diagnostic function blocks in Control Builder M or the hardware status view in MasterView 800 to confirm all I/O channels are reporting correctly before returning the loop to automatic control.

Q: Can this module be used during a phased migration to ABB System 800xA?
A: Yes. The DATX110 can remain in service within the existing ADVANT rack while 800xA controller modules are introduced in parallel. This hybrid architecture is a standard ABB migration strategy that allows process continuity during the transition without a full cutover shutdown.

Warranty Assurance

Every ABB DATX110 3ASC25H209 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes visual examination for physical damage, board-level power-on testing, and functional verification of I/O channel response where test fixtures are available for the module type.

If a unit exhibits a defect or functional failure within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a refund based on the customer’s preference and stock availability. Our after-sales response target is within 24 hours of a warranty claim submission.

We ship globally from our Xiamen warehouse via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–7 business days to most destinations. Export documentation including commercial invoice, packing list, and certificate of origin is provided with every shipment to facilitate customs clearance.

For urgent plant breakdown situations, expedited same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. Contact our technical sales team to confirm stock status and arrange priority shipping.

TOPNLMS serves industrial end users, EPC contractors, MRO distributors, and system integrators across the power generation, oil and gas, chemical processing, water treatment, and manufacturing sectors. Our procurement team can provide formal quotations, proforma invoices, and material traceability documentation upon request.
