ABB D2D160-BE02-11 Replacement for D2D160 Series

Product Overview

ABB D2D160-BE02-11 Replacement for D2D160 Series: Smooth Transition & Legacy System Compatibility

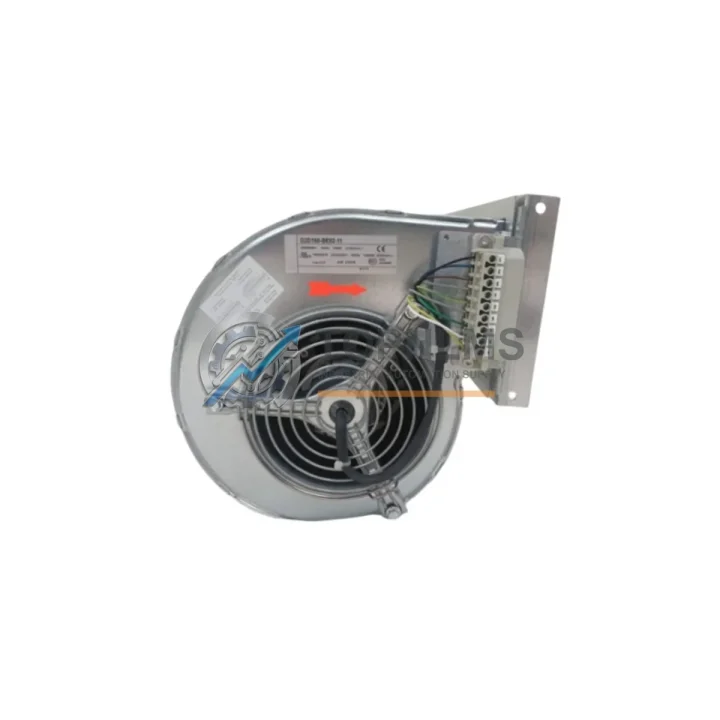

The ABB D2D160-BE02-11 is a high-performance centrifugal cooling fan module engineered for ABB variable frequency drives (VFDs), servo drives, and industrial power conversion systems. As legacy drive platforms age and original cooling components reach end-of-life, the D2D160-BE02-11 serves as the direct drop-in replacement and upgrade solution for a wide range of ABB ACS, ACS800, ACS880, and ACS550 series drive cabinets where thermal management is critical to continuous operation.

For facilities running older ABB ACS800 or ACS550 drive systems, cooling fan failure is one of the most common causes of unplanned downtime. The D2D160-BE02-11 is dimensionally and electrically compatible with the original D2D160 series fan assemblies, allowing maintenance teams to complete the swap without modifying the drive cabinet enclosure, fan mounting bracket, or existing wiring harness. The three-phase AC input and standard terminal block layout match the original specification, eliminating the need for rewiring or adapter plates during retrofit.

When migrating from an older ABB RDCU-02C control board platform or replacing cooling infrastructure in an ACS800-04 or ACS800-07 drive unit, the D2D160-BE02-11 integrates directly into the existing thermal management architecture. The fan’s airflow rating and static pressure curve are matched to the original D2D160 series specification, ensuring that IGBT modules, DC bus capacitors, and rectifier bridges within the drive remain within safe operating temperature ranges during full-load operation.

In multi-drive cabinet installations where ABB ACS880 multidrives or ACS800 common DC bus configurations are deployed, the D2D160-BE02-11 can be used to replace cooling fans across multiple drive modules within the same enclosure. This is particularly relevant in applications where the RDIO-01 I/O extension module, RCAN-01 CANopen adapter, or RPBA-01 PROFIBUS adapter are installed alongside the main drive unit, as these communication and I/O modules generate additional heat loads that the cooling fan must manage.

For system integrators performing a full drive modernization — replacing an ACS550 with an ACS880 or migrating from a legacy SAMI GS or SAMI Star drive platform — the D2D160-BE02-11 provides a cost-effective interim cooling solution that can be retained in the upgraded cabinet without requiring a full thermal redesign. The fan’s IP54-rated housing is suitable for industrial environments with moderate dust and moisture exposure, consistent with the protection class requirements of most drive cabinet installations.

Procurement teams sourcing replacement cooling components for ABB drive systems will find the D2D160-BE02-11 available from stock, with same-day dispatch from our Xiamen warehouse for orders confirmed before 15:00 CST. Each unit is individually tested for motor winding continuity, bearing noise, and airflow performance before shipment. Units are shipped in anti-static protective packaging with foam inserts to prevent transit damage to the impeller and motor housing.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete drive cooling retrofit often involves more than just the fan module. When replacing the D2D160-BE02-11 in an ACS800 or ACS880 cabinet, maintenance engineers typically also inspect and replace the NINT-02C inverter control board, which governs fan speed control signals and thermal protection logic. In multi-axis installations, the RDIO-01 digital I/O extension module and RAIO-01 analog I/O module are commonly serviced at the same time to restore full drive diagnostics capability.

For cabinets using PROFIBUS DP communication, the RPBA-01 PROFIBUS adapter module should be verified for firmware compatibility after any cooling system intervention, as thermal events can corrupt adapter configuration memory. Similarly, in EtherNet/IP-connected systems, the RETA-02 Ethernet adapter module should be inspected for connector integrity and re-commissioned if the drive has experienced thermal shutdown events.

Power supply integrity is equally important during a cooling upgrade. The APOW-01 auxiliary power supply module, commonly found in ACS800 multidrives, should be load-tested after fan replacement to confirm that the drive’s internal 24 VDC bus remains stable under full cooling load. In older ACS550 installations, the OPTA-01 or OPTB-01 option modules may also require re-seating after cabinet access during the fan replacement procedure.

For sites performing a broader modernization from legacy SAMI or ACS600 platforms to current ACS880 architecture, the D2D160-BE02-11 can be specified as part of the new cabinet build, ensuring that the replacement cooling infrastructure is consistent across the upgraded and legacy sections of the installation during the transition period.

Retrofit Guidance FAQ

Q: Does the D2D160-BE02-11 require any wiring changes compared to the original fan?
A: No. The D2D160-BE02-11 uses the same terminal block pinout and connector type as the original D2D160 series fans used in ABB ACS800 and ACS880 drive cabinets. Existing wiring harnesses can be reused without modification.

Q: Is any drive parameter or software change required after fan replacement?
A: In most ACS800 and ACS880 applications, no parameter changes are required. The drive’s fan control output is compatible with the D2D160-BE02-11 motor specification. If the original drive was configured with a fan fault monitoring function (parameter group 30 in ACS800), verify that the tachometer signal threshold matches the new fan’s rated speed.

Q: Will the D2D160-BE02-11 fit in the same physical space as the original fan?
A: Yes. The D2D160-BE02-11 shares the same 160 mm flange diameter and bolt-hole pattern as all D2D160 series variants. No cabinet modification or custom mounting hardware is required.

Q: Is the D2D160-BE02-11 compatible with both 50 Hz and 60 Hz power systems?
A: Yes. The fan motor is rated for 50/60 Hz operation and is suitable for installations in both European (50 Hz) and North American or Asian (60 Hz) industrial facilities.

Q: What is the lead time for this part?
A: Units are available from stock in our Xiamen warehouse. Orders confirmed before 15:00 CST are dispatched same day via DHL Express, FedEx International Priority, or SF International, with typical transit times of 3–7 business days to most destinations.

Q: Can this fan be used in a new cabinet build, or only as a replacement?
A: The D2D160-BE02-11 is suitable for both replacement and new-build applications. It is an OEM-specification component used in ABB drive manufacturing and is fully compatible with new ACS880 and ACS800 cabinet designs.

Warranty Assurance

Every D2D160-BE02-11 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment inspection protocol that includes motor winding resistance measurement, bearing run-in test, airflow performance verification, and visual inspection of the impeller, housing, and terminal block. Units that do not meet the original ABB D2D160 series specification are rejected and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Customers are required to provide the original invoice number and a brief description of the fault. Return shipping for confirmed warranty claims is covered by TOPNLMS for orders shipped to mainland China, Hong Kong, and Taiwan. For international warranty claims, a replacement unit is dispatched upon receipt of the returned defective unit.

Our after-sales team is available Monday to Saturday, 09:00–18:00 CST, and can be reached at [email protected] or +86 18359293191. Technical support for installation, commissioning, and compatibility verification is provided at no additional charge for all customers.

TOPNLMS maintains stock of D2D160-BE02-11 and related D2D160 series components to support ongoing maintenance programs and emergency replacement requirements. Customers with recurring procurement needs are invited to contact us to discuss framework agreements and priority stock allocation.
