ABB CINT-01C Original Industrial Spare ACS800 Compatible

Product Overview

ABB CINT-01C Original Industrial Spare ACS800 Compatible: System Stability Through Verified Fieldbus Communication

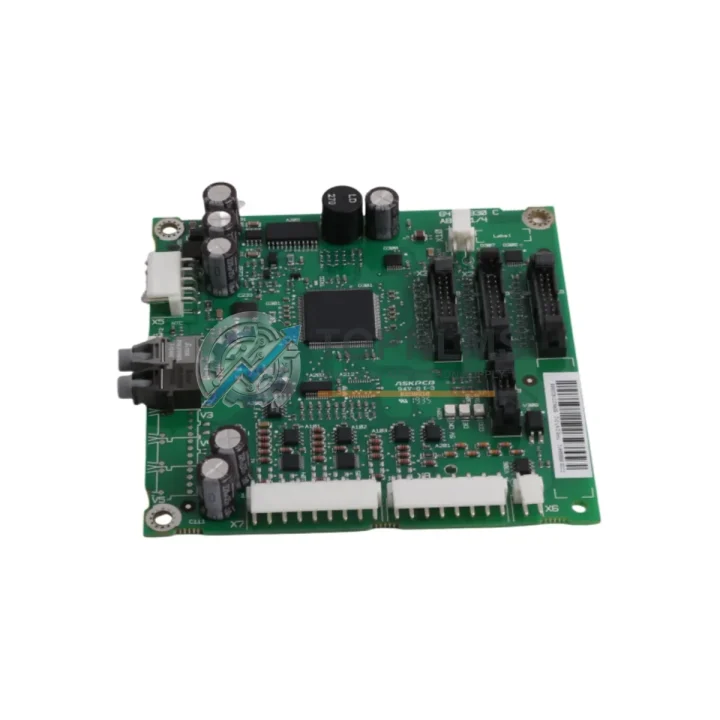

The ABB CINT-01C is an original optional fieldbus interface board designed exclusively for the ABB ACS800 series AC drives. In process-critical environments — pump stations, compressor banks, conveyor systems, HVAC air-handling units, and continuous manufacturing lines — the ACS800 drive governs motor control loops that cannot tolerate unplanned downtime. The CINT-01C is the communication bridge between the drive and the plant-level fieldbus network; when it fails, the drive becomes an island, and production stops. Holding a verified original spare on the shelf is the most direct, cost-effective measure a maintenance team can take to compress mean time to repair (MTTR) and protect uptime commitments.

The CINT-01C supports PROFIBUS-DP, DeviceNet, CANopen, and Modbus RTU protocols, making it compatible with a wide range of PLC and DCS architectures — from Siemens S7 and Allen-Bradley ControlLogix platforms to ABB System 800xA DCS environments. This protocol versatility is a primary reason the ACS800 platform remains in active service across both legacy and modernized facilities, and why sourcing original CINT-01C boards remains a standing priority for maintenance planners managing aging drive infrastructure.

Critical Technical Specs Table

Preventive Maintenance Strategy

A fieldbus communication fault on the CINT-01C rarely occurs in isolation. In most documented cases, the failure is preceded by — or coincides with — degradation in adjacent components within the same drive cabinet or control loop. A disciplined preventive maintenance inspection triggered by a CINT-01C replacement should therefore extend to the full communication and power chain of the ACS800 drive.

Begin with the RMIO control board, which hosts the CINT-01C slot. If the RMIO shows signs of capacitor bulging, edge-connector corrosion, or erratic parameter behavior, replacing the CINT-01C alone will not restore stable communication. Simultaneously, inspect the APOW power supply board that feeds the RMIO: a sagging 24 VDC rail is a common root cause of intermittent fieldbus dropouts that are frequently misdiagnosed as CINT-01C failures. Voltage instability at the APOW output should be corrected before the new CINT-01C is commissioned.

On the fieldbus wiring side, inspect the PROFIBUS trunk cable, bus termination resistors, and D-sub connector at the CINT-01C interface. Damaged cable shielding, missing terminators, or corroded pins are frequent contributors to communication instability. If the drive is part of a larger PROFIBUS segment, verify that the network repeater or bus coupler upstream of the ACS800 node is functioning correctly — a failing repeater can cause the entire segment to drop, making the CINT-01C appear faulty when it is not.

Within the same control cabinet, inspect the 24 VDC auxiliary power supply module that powers field instruments and I/O marshalling. Voltage fluctuations from an aging PSU can induce noise on the fieldbus cable, particularly in cabinets where signal and power wiring are not adequately separated. If the ACS800 is integrated into a broader DCS or PLC system, check the analog input cards, digital output modules, and signal isolators that translate drive status signals into process control variables — these modules are subject to the same thermal cycling and vibration stresses as the drive itself and should be included in the inspection scope.

For facilities running multiple ACS800 drives in coordinated motion or pump-sequencing applications, the DDCS fiber optic communication boards (RDCO series) used for drive-to-drive communication should be included in the inspection cycle. Fiber connectors accumulate dust and micro-fractures over time, leading to intermittent synchronization faults. Similarly, the encoder interface board (RTAC or RAIO) fitted to speed-controlled drives should be checked for connector integrity and signal quality at each scheduled maintenance interval.

Finally, review the condition of the ACS800 control panel (CDP312R or ACS-CP-C) and its communication cable to the drive. A faulty panel cable prevents parameter upload and download during a CINT-01C swap, extending commissioning time unnecessarily. Keeping a spare panel cable and a pre-configured parameter backup on a memory unit significantly reduces the time required to return the drive to service after any board-level replacement. A complete cabinet inspection — covering the RMIO, APOW, CINT-01C, power supply module, I/O modules, fiber boards, and panel cable — transforms a reactive repair event into a proactive reliability improvement.

Strategic Replacement Solutions

The ABB ACS800 platform has been deployed in tens of thousands of industrial installations worldwide since the late 1990s. Many of these drives are now operating well beyond their original design lifecycle, yet the mechanical and electrical infrastructure they control remains in active production service. The economic case for replacing the entire drive is often unfavorable: new drive procurement, cabinet re-engineering, cable re-termination, and recommissioning can represent weeks of engineering time and significant capital expenditure.

The CINT-01C enables a targeted, cost-effective alternative. By replacing only the failed fieldbus interface board, maintenance teams restore full drive communication capability without disturbing the drive’s parameter set, motor tuning data, or safety interlock configuration. The original CINT-01C is a direct plug-in replacement — no firmware patching, no address reconfiguration beyond the standard node address DIP switch setting, and no changes to the PLC or DCS configuration are required. This makes it the preferred solution for facilities operating under strict change management protocols where any modification to the control system requires extensive documentation and approval cycles.

For maintenance planners managing a fleet of ACS800 drives across multiple production lines or plant sites, establishing a minimum stock level of one CINT-01C per drive variant in service is a recognized best practice in industrial spare parts management. The board’s compact form factor and long shelf life — when stored in anti-static packaging at controlled temperature and humidity — make it an ideal candidate for on-site strategic sparing. Compared to the cost of a single hour of unplanned downtime in a continuous process environment, the investment in a verified original spare is negligible.

Each CINT-01C unit supplied by TOPNLMS is sourced from verified original manufacturer channels, inspected for physical integrity, and tested for communication functionality on an ACS800 test bench prior to shipment. Units are dispatched in anti-static protective packaging with full traceability documentation. A 12-month warranty from the date of shipment covers manufacturing defects and functional failures under normal operating conditions, giving procurement and maintenance teams the confidence to stock spares without risk.

Support FAQ

Q1: How do I verify that the CINT-01C is compatible with my specific ACS800 drive firmware version?
The CINT-01C is compatible with all standard ACS800 firmware versions that support optional fieldbus adapter boards via the CH1 or CH2 slot on the RMIO control board. Before installation, confirm your drive’s firmware version via parameter 33.01 (Software version). If you are unsure, provide your drive’s serial number and nameplate data and we will confirm compatibility prior to shipment.

Q2: What is the recommended inventory strategy for CINT-01C boards in a multi-drive facility?
For facilities with 5 or more ACS800 drives using fieldbus communication, we recommend maintaining a minimum of 1–2 CINT-01C spares on-site. For critical continuous-process applications — water treatment, chemical processing, power generation — a 1:3 spare ratio (one spare per three drives) is advisable. Boards stored in original anti-static packaging in a climate-controlled environment maintain full functionality for 5+ years.

Q3: Can the CINT-01C be replaced on-site without specialist ABB service personnel?
Yes. The CINT-01C is a plug-in board that installs into the designated slot on the RMIO control board without soldering or special tools. The replacement procedure requires the drive to be powered down and locked out per site LOTO procedures. After installation, only the fieldbus node address (set via DIP switches on the board) and the relevant Group 51 parameters in the drive need to be configured. Full parameter instructions are available in the ACS800 Fieldbus Adapter Installation Guide.

Q4: What pre-shipment testing is performed on each CINT-01C unit, and what does the 12-month warranty cover?
Every CINT-01C unit undergoes visual inspection for physical damage, connector integrity verification, and functional communication testing on an ACS800 test bench prior to shipment. Units that do not pass all test criteria are quarantined and not dispatched. A test report is available upon request. The 12-month warranty from the shipment date covers manufacturing defects and functional failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the specified operating range.
