ABB CI857K01 3BSE018144R1 Replacement for INSUM Series

Product Overview

ABB CI857K01 3BSE018144R1 Replacement for INSUM Series: Smooth Transition & Legacy System Compatibility

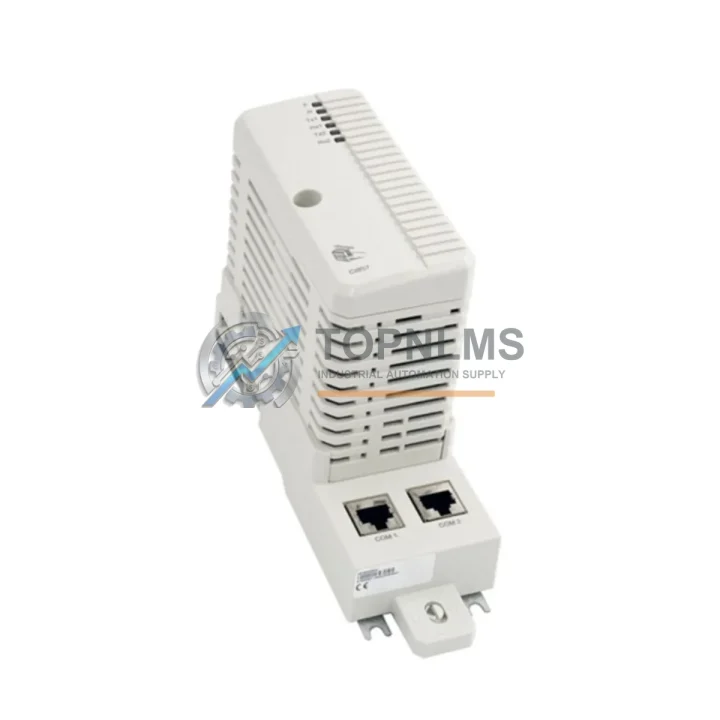

The ABB CI857K01 (part number 3BSE018144R1) is a dedicated Ethernet interface module within ABB’s INSUM (Intelligent Motor Control) communication platform. As industrial facilities transition away from aging motor control centers (MCCs), legacy fieldbus architectures, and discontinued communication hardware, the CI857K01 serves as a critical bridge — enabling engineers to modernize their control infrastructure while preserving existing wiring topologies, cabinet layouts, and PLC program logic.

Whether you are replacing a failed unit, upgrading from an older INSUM communication node, or migrating an entire MCC bus segment to a more maintainable architecture, this module provides the Ethernet connectivity layer required to integrate ABB motor starters, soft starters, and drives into higher-level SCADA, DCS, or PLC supervisory systems. Its compact DIN-rail-compatible form factor and standard RJ45 Ethernet port make it physically interchangeable with predecessor communication modules in the same INSUM rack, minimizing installation downtime and avoiding costly cabinet re-engineering.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy INSUM serial bus to an Ethernet-based architecture typically involves more than swapping the communication interface module alone. In practice, engineers working on MCC modernization projects will also evaluate the ABB CI854K01 or CI856K01 serial interface modules still installed in adjacent MCC cubicles — these can be phased out progressively as the CI857K01 Ethernet segment is expanded. On the DCS or PLC side, integration with an ABB AC500 controller or an 800xA system node requires verifying that the Ethernet switch port is configured for the correct VLAN and that the INSUM device address mapping in the control program is updated to reflect the new network topology.

For facilities running ABB drives such as the ACS550 or ACS800 series alongside INSUM motor starters, the CI857K01 allows unified Ethernet supervision of both drive and starter status from a single network segment, eliminating the need for separate Profibus DP or Modbus RTU gateway hardware. Engineers should also confirm that the 24 VDC INSUM bus power supply — typically an ABB PSMAIN or equivalent MCC bus power module — is rated for the expanded node count after adding the CI857K01 to the segment.

Where the existing control cabinet uses ABB S800 I/O modules or TB820 Modulebus optical links for field signal aggregation, the CI857K01 Ethernet interface can coexist on the same supervisory network without protocol conflicts, provided the network switch supports standard IEEE 802.3 Ethernet. For projects requiring signal isolation between the INSUM Ethernet segment and the plant DCS backbone, a signal isolator or managed Ethernet switch with port isolation is recommended. Programming cable access for initial CI857K01 configuration is typically handled via the standard RJ45 port using ABB’s INSUM Engineering Tool, without requiring a dedicated serial programming cable.

Retrofit Guidance FAQ

Q: Can the CI857K01 replace a CI854K01 or CI856K01 in the same INSUM slot without cabinet modification?
A: Yes. The CI857K01 occupies the same physical INSUM bus slot as the CI854K01 and CI856K01 serial interface modules. No cabinet re-drilling or bracket modification is required. The INSUM bus connector pinout is mechanically compatible, and the 24 VDC bus power is supplied through the same backplane connection.

Q: Do I need to rewrite my PLC or DCS program after replacing the communication module?
A: The device address assignments and function block mappings in your control program will need to be updated to reflect the Ethernet IP address of the CI857K01 rather than the serial node address of the predecessor module. The INSUM device data model (motor starter status, control commands, fault codes) remains consistent, so the functional logic does not require rewriting — only the communication driver configuration and address parameters need updating.

Q: Is the CI857K01 compatible with Modbus TCP or only proprietary INSUM protocol?
A: The CI857K01 uses ABB’s INSUM Ethernet protocol, which is based on standard TCP/IP transport. Integration with third-party SCADA or DCS systems that support Modbus TCP may require an ABB-approved protocol gateway. For native ABB 800xA or AC500 environments, the module is directly supported without additional gateway hardware.

Q: What is the maximum cable run length for the Ethernet connection?
A: Standard Ethernet (Cat5e or Cat6) supports up to 100 meters per segment without a repeater or switch. For longer runs within large industrial facilities, a managed Ethernet switch should be installed at an intermediate point. Shielded cable (STP) is recommended in high-EMI environments typical of MCC rooms.

Q: How do I verify the module is functioning correctly after installation?
A: After physical installation and IP address configuration via the INSUM Engineering Tool, verify the module’s LED status indicators: the green POWER LED should be steady, the LINK LED should illuminate when the Ethernet cable is connected to an active switch port, and the BUS LED should flash during active INSUM bus communication. Fault conditions are indicated by the red FAULT LED and can be diagnosed via the Engineering Tool’s diagnostic view.

Warranty Assurance

Every ABB CI857K01 3BSE018144R1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including power-on testing, communication port integrity checks, and visual inspection for physical damage. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement support with priority processing. Our technical team is available to assist with installation questions, compatibility verification, and fault diagnosis via email at [email protected] or by phone at +86 18359293191. Typical order processing time is 1–3 business days, with express shipping options available for urgent replacement requirements.

For procurement teams requiring documentation, we can provide product datasheets, test reports, and packing lists upon request. Volume pricing is available for MRO stocking orders and project-based bulk purchases.
