ABB CI854AK01 3BSE030221R1 Ruggedized PROFIBUS DP Module

Product Overview

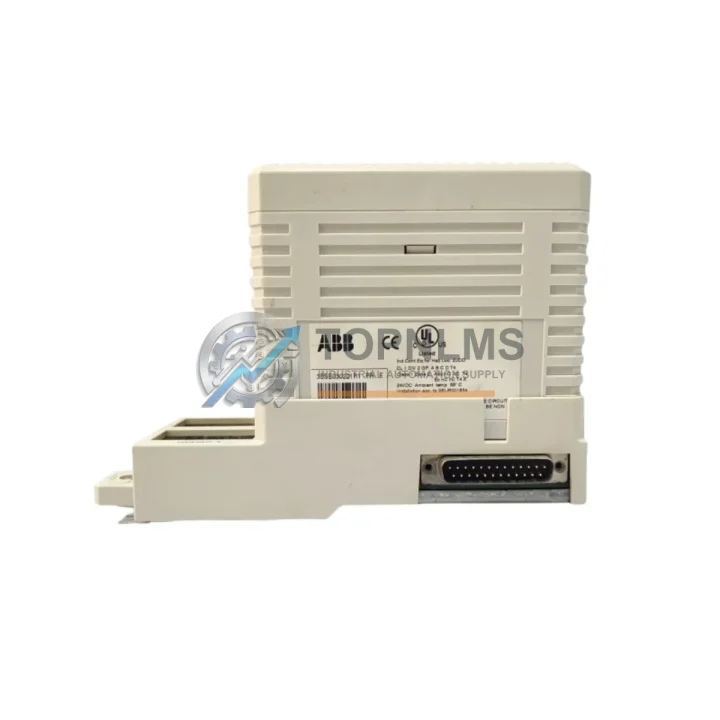

ABB CI854AK01 3BSE030221R1 Ruggedized PROFIBUS DP Communication Module — Industrial Resilience for Harsh Environments

The ABB CI854AK01 (3BSE030221R1) is a high-integrity PROFIBUS DP communication module engineered for the ABB AC 800M Distributed Control System platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, vibration-intensive heavy manufacturing floors, and zones with severe electromagnetic interference — this module delivers uninterrupted fieldbus communication where system uptime is non-negotiable.

Built to ABB’s stringent quality standards for process automation hardware, the CI854AK01 supports PROFIBUS DP-V0 and DP-V1 protocols, enabling deterministic, high-speed data exchange between the AC 800M controller and field devices such as variable frequency drives, remote I/O stations, intelligent motor control centers, and distributed safety systems. Its ruggedized design ensures stable signal integrity even in the presence of strong electromagnetic fields generated by large motors, welding equipment, and high-voltage switchgear commonly found in oil and gas, power generation, and metallurgical plants.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated AC 800M control architecture, the CI854AK01 operates as the critical communication backbone linking the controller to the field layer. It works in close coordination with ABB PM864A and PM866K02 processor modules, which provide the computational core for process logic execution. On the I/O side, the module interfaces seamlessly with ABB S800 I/O remote I/O units — including the AI810 analog input module and DO810 digital output module — enabling precise measurement and actuation across distributed process nodes.

For power supply integrity in harsh environments, the CI854AK01 is typically paired with ABB SD831 or SD832 power supply units, which provide regulated 24 VDC to the controller rack and field I/O segments. In safety-critical applications, the module operates alongside ABB SIL-rated safety modules within the AC 800M Safety platform, ensuring that PROFIBUS communication remains deterministic even during partial system faults.

Where redundant communication is required — such as in continuous chemical reactors or offshore platform control rooms — the CI854AK01 can be deployed in a redundant pair configuration, with each module independently maintaining fieldbus integrity. Terminal modules such as the ABB TB820V2 ModuleBus modem and CI840A PROFIBUS DP redundant interface complement the CI854AK01 in larger system architectures. For plants running mixed fieldbus topologies, the module coexists with CI857K01 HART communication interfaces and CI858K01 DeviceNet modules within the same AC 800M rack, providing a unified, multi-protocol control cabinet solution.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the CI854AK01 manages PROFIBUS DP communication between the AC 800M DCS and field instruments including pressure transmitters, control valves, and flame detection systems. Its EMC-hardened design withstands the high-frequency interference generated by variable speed drives controlling compressor trains and pump stations, ensuring that process data reaches the control room without corruption or latency.

In coal-fired and combined-cycle power plants, the module coordinates boiler control loops, turbine protection interlocks, and auxiliary system monitoring through PROFIBUS DP networks spanning hundreds of meters of cable. Its wide operating temperature tolerance allows installation in control cabinets located in turbine halls where ambient temperatures can approach the upper limits of standard industrial hardware.

In mining and mineral processing operations, where vibration from crushers, conveyors, and ball mills is constant, the CI854AK01’s mechanical robustness — validated to IEC 60068-2-6 vibration standards — ensures that fieldbus connections remain stable across multi-year production campaigns without requiring frequent maintenance interventions.

In water and wastewater treatment plants, the module enables reliable communication between the AC 800M controller and distributed pump stations, chemical dosing systems, and SCADA interfaces, supporting 24/7 continuous operation with minimal human intervention. Its compatibility with the full AC 800M ecosystem means that plant engineers can expand or reconfigure the control system without replacing existing infrastructure.

In metallurgical and steel production facilities, where electromagnetic interference from arc furnaces and induction heaters is extreme, the CI854AK01’s shielded communication architecture maintains data integrity across the PROFIBUS DP segment, protecting critical process variables such as melt temperature, casting speed, and cooling water flow from signal degradation.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
All CI854AK01 3BSE030221R1 units shipped by TOPNLMS are covered by a 12-month warranty from the date of shipment. The warranty covers hardware defects, functional failures under normal operating conditions, and firmware-related issues. Replacement or repair is arranged promptly to minimize your plant downtime. Contact [email protected] to initiate a warranty claim.

Q2: How is each unit tested before shipment?
Every CI854AK01 unit undergoes pre-shipment functional verification including power-on self-test, PROFIBUS DP communication handshake validation, and visual inspection for physical integrity. Units sourced from verified supply channels are cross-checked against ABB’s original part markings and firmware revision labels to ensure authenticity and full compatibility with AC 800M controller platforms.

Q3: Is the CI854AK01 compatible with all AC 800M controller versions?
The CI854AK01 is compatible with the full range of ABB AC 800M processor modules including PM851, PM856, PM860, PM861, PM864, and PM866 series controllers. It supports both DP-V0 and DP-V1 protocol variants, making it suitable for legacy and current-generation AC 800M installations. If you are integrating into a specific firmware revision or redundant controller configuration, our technical team can advise on compatibility before shipment.

Q4: Can TOPNLMS support long-term and repeat supply of this module?
Yes. TOPNLMS maintains stock of the CI854AK01 3BSE030221R1 and other AC 800M system components to support both emergency replacement and planned maintenance programs. We serve industrial end-users, EPC contractors, and MRO procurement teams with consistent lead times. For blanket orders or scheduled delivery programs, contact our sales team to discuss volume pricing and reserved stock arrangements.
