ABB CI840 3BSE022457R1 Original Industrial Spare AC800M Compatible

Product Overview

ABB CI840 3BSE022457R1 Original Industrial Spare AC800M Compatible: System Stability & Industrial Spare Maintenance Value

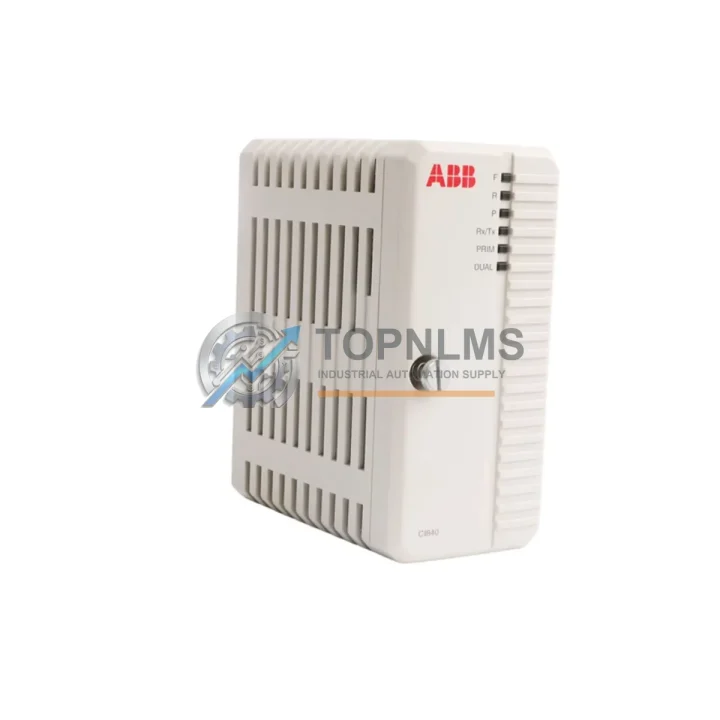

The ABB CI840 (part number 3BSE022457R1) is a genuine PROFIBUS DP interface module engineered for the ABB AC800M Distributed Control System platform — one of the most widely deployed DCS architectures in process industries including oil & gas, pulp & paper, power generation, and chemical manufacturing. When a PROFIBUS DP communication link fails, the consequences extend far beyond a single I/O drop: entire process segments can go offline, safety interlocks may trip, and unplanned downtime costs can escalate rapidly. Holding a verified original CI840 3BSE022457R1 in your maintenance inventory is one of the most cost-effective decisions a reliability engineer can make.

This module serves as the primary PROFIBUS DP master interface between the AC800M controller and field devices — including remote I/O stations, variable frequency drives, intelligent valve positioners, and third-party PROFIBUS slaves. Its role in the communication backbone means that any degradation in the CI840 directly impacts process visibility and control authority. Sourcing an original, tested replacement unit before failure occurs is the cornerstone of a proactive maintenance strategy.

Critical Technical Specs

Preventive Maintenance Strategy

A PROFIBUS DP communication fault rarely occurs in isolation. When maintenance teams respond to a CI840-related alarm or communication dropout, a thorough inspection of the surrounding control cabinet and field network is essential to prevent repeat failures and ensure long-term system stability.

Begin with the AC800M controller itself. If the CI840 has experienced repeated resets or communication errors, the host controller module — such as the PM864 or PM866 processor module — should be inspected for firmware currency and memory integrity. A degraded processor can generate false DP faults that mask the true root cause. While the cabinet is open, verify the condition of the SD802F or SD803F power supply modules: unstable DC rail voltage is a leading cause of intermittent fieldbus communication errors and should be measured under load before concluding that the CI840 itself is at fault.

Next, audit the PROFIBUS DP network segment. Check the TB840 or TB840A termination board connections and ensure that bus termination resistors are correctly installed at both ends of the segment. Loose or corroded terminal connections on the TB807 or TB811 I/O terminal bases are a common source of intermittent slave dropouts that are frequently misdiagnosed as interface module failures. If the plant uses remote I/O clusters, inspect the S800 I/O modules — particularly AI810, AO810, DI810, and DO810 units — for signs of moisture ingress or mechanical damage at the field connector.

For plants running mixed communication architectures, also verify the status of any CI854 or CI858 communication interface modules installed in adjacent controller slots. These modules handle FOUNDATION Fieldbus and HART communication respectively, and their health directly affects overall DCS network load. An overloaded communication bus can cause the CI840 to report spurious errors even when the module itself is fully functional.

Finally, review the cabinet’s 24 VDC distribution fuse modules and check for any blown fuses on the field power rails. A single blown fuse on a PROFIBUS segment power supply can take down multiple slave devices simultaneously, creating an alarm storm that obscures the actual fault location. Keeping one spare CI840 3BSE022457R1 alongside spare fuse modules, a spare SD802F power supply, and a set of S800 I/O modules in your on-site inventory dramatically reduces mean time to repair (MTTR) and protects production continuity.

Strategic Replacement Solutions

The CI840 3BSE022457R1 has been a production-critical component in AC800M-based DCS installations for over two decades. Many plants running ABB System 800xA or earlier Advant OCS architectures continue to rely on this module as the primary PROFIBUS DP gateway. As ABB transitions its portfolio toward newer communication standards, sourcing verified original CI840 units becomes increasingly important for facilities that cannot justify a full DCS migration in the near term.

Replacing a failed CI840 with a genuine 3BSE022457R1 unit requires no firmware changes, no re-engineering of the PROFIBUS segment GSD files, and no reconfiguration of the AC800M project in ABB Control Builder. The module is plug-compatible with all AC800M controller racks that support the CI840 form factor, making field replacement a straightforward swap that a trained instrument technician can complete during a planned or emergency shutdown window. This direct compatibility preserves the existing PROFIBUS network topology, slave address assignments, and process variable mappings — eliminating the risk of configuration errors that can accompany cross-brand or cross-generation substitutions.

For facilities managing aging AC800M systems, a strategic approach is to maintain a minimum of two CI840 units in the plant spare parts store: one designated as the active hot spare for immediate deployment, and one held in long-term storage as a lifecycle buffer. This two-unit strategy provides coverage for simultaneous failures in multi-controller installations and ensures that a second failure during the procurement lead time does not result in extended downtime.

Support FAQ

Q1: Is this CI840 3BSE022457R1 an original ABB module or a compatible replacement?
This is a genuine original ABB CI840 module with part number 3BSE022457R1, sourced from authorized industrial supply channels. Each unit is inspected and function-tested prior to shipment. We do not supply counterfeit, refurbished-without-disclosure, or third-party compatible substitutes.

Q2: What is the warranty coverage and what does it include?
All CI840 3BSE022457R1 units ship with a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are eligible for replacement or refund. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q3: How do I verify compatibility with my existing AC800M system before installation?
The CI840 is compatible with all AC800M controller racks that support the CI840 slot designation, including systems running PM851, PM856, PM860, PM861, PM864, and PM866 processor modules. Compatibility can be confirmed by checking the hardware configuration in ABB Control Builder and verifying that the CI840 slot is defined in the controller project. If you require compatibility verification assistance, contact our technical team with your controller firmware version and hardware configuration details.

Q4: What is the typical lead time and how is the module packaged for shipment?
In-stock units are processed and dispatched within 1–3 business days. Each module is packaged in anti-static ESD protective packaging with foam cushioning to prevent transit damage. Tracking information is provided upon shipment. Express and priority shipping options are available for emergency maintenance situations. Contact us directly for urgent requirements.
