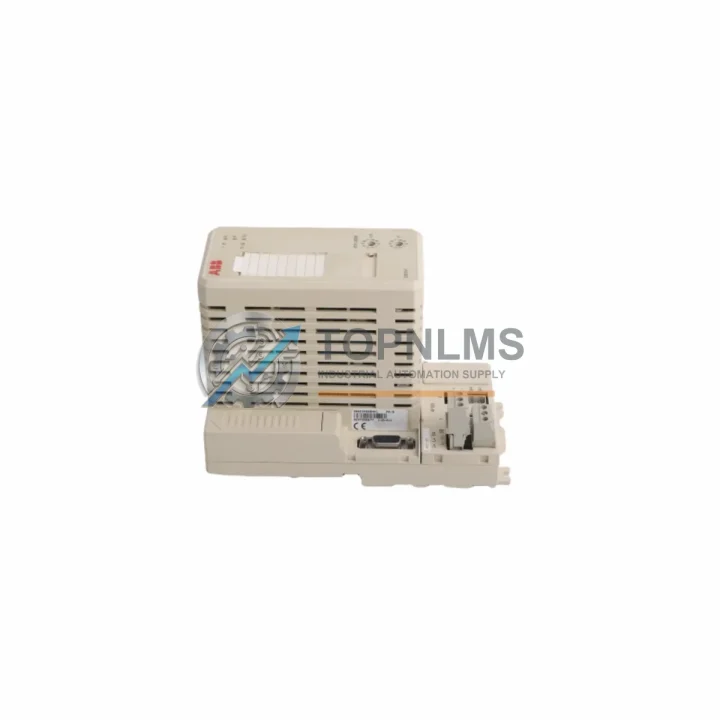

ABB CI810V1 3BSE008584R1 Original Industrial Spare AC800M Compatible: System Stability Through Proven Fieldbus Communication

In industrial automation environments where uptime is measured in millions of dollars per hour, the ABB CI810V1 (part number 3BSE008584R1) stands as a mission-critical component within the AC800M Distributed Control System architecture. As the Profibus DP Master Interface module, the CI810V1 serves as the primary communication bridge between the AC800M controller and field-level devices — including remote I/O stations, variable frequency drives, valve positioners, and intelligent field instruments. Maintaining a verified original spare of this module is not optional for facilities running ABB AC800M-based control systems; it is a fundamental pillar of operational resilience.

The CI810V1 supports the Profibus DP protocol at data transfer rates up to 12 Mbit/s, enabling deterministic, high-speed communication across complex process control loops. Its role in the AC800M system is irreplaceable: without a functioning CI810V1, entire Profibus DP segments go offline, taking with them the field devices that depend on cyclic data exchange. For process industries — oil and gas, chemical, pulp and paper, power generation, and water treatment — this translates directly into unplanned shutdowns and costly production losses.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance program for AC800M-based control systems must extend well beyond the CI810V1 itself. During scheduled shutdowns or annual control cabinet inspections, maintenance engineers should treat the Profibus DP segment as a complete ecosystem. The CI810V1 module communicates with field devices through a physical Profibus cable network; degraded cable termination resistors or damaged Profibus connectors are among the most common root causes of intermittent communication faults that are frequently misdiagnosed as module failures. Always inspect and, where necessary, replace Profibus DP bus connectors and termination plugs at both ends of the segment during the same maintenance window.

The AC800M controller itself — typically a PM856 or PM864 processor module — should be evaluated for firmware currency and physical condition. Corrosion on backplane contacts or loose seating of the processor module can cause the CI810V1 to report communication errors even when the module itself is fully functional. Alongside the processor, the SD802F or SD803F power supply modules that feed the AC800M rack deserve inspection: voltage ripple or marginal output from an aging power supply is a silent killer of fieldbus communication stability.

For facilities managing multiple Profibus DP segments, the CI810V1 is often paired with additional communication interface modules such as the CI840A (PROFINET) or CI854A (PROFIBUS DP redundant) in larger AC800M configurations. Maintaining a documented spare inventory that includes at least one CI810V1 per active Profibus segment, alongside a spare PM856 processor and an SD802F power supply, represents industry best practice for DCS spare parts management.

At the field device level, remote I/O stations — such as ABB S800 I/O modules including the AI810, AO810, DI810, and DO810 — are the downstream beneficiaries of a healthy CI810V1 communication link. A preventive maintenance checklist for the Profibus DP segment should include verification of each S800 I/O module’s status LEDs, confirmation of correct GSD file configuration in the engineering tool (ABB Control Builder M), and a review of diagnostic counters for bus errors or retry events. Elevated retry counts are an early warning indicator that the segment is approaching a communication fault threshold.

For facilities with aging AC800M installations, the TB807 or TB840A termination boards and the TP830 test panel are often overlooked during maintenance cycles. These passive components play a critical role in signal integrity across the backplane. Including them in the annual inspection scope — and maintaining one set as cold spares — significantly reduces the risk of a multi-day outage caused by a failed passive component that is difficult to source on short notice.

Strategic Replacement Solutions

The CI810V1 was introduced as part of ABB’s AC800M platform and has been deployed across thousands of process automation installations worldwide. Many of these installations are now operating well beyond their original design lifecycle, with some AC800M systems approaching 15–20 years of continuous service. In this context, the availability of a verified original CI810V1 spare is not merely a convenience — it is the difference between a two-hour module swap and a multi-week engineering project to migrate to a newer communication architecture.

Unlike third-party or refurbished alternatives, an original CI810V1 sourced from a verified industrial spare parts supplier guarantees full compatibility with the AC800M backplane protocol, the Control Builder M engineering environment, and the existing GSD-based Profibus DP device configuration. There is no need for re-engineering, re-commissioning, or firmware negotiation. The replacement procedure is straightforward: power down the controller rack following ABB’s documented hot-swap or cold-swap procedure, seat the new CI810V1, restore power, and verify communication status through the Control Builder M diagnostic view. Total replacement time for a trained maintenance technician is typically under 30 minutes.

For facilities considering a phased migration from Profibus DP to PROFINET or Industrial Ethernet, the CI810V1 can serve as a bridge strategy — maintaining Profibus DP segment stability while the migration is planned and budgeted. This approach avoids the operational risk of a forced migration triggered by an unplanned module failure, and preserves the capital investment already made in Profibus DP field devices and cabling infrastructure.

All CI810V1 units supplied by TOPNLMS are tested prior to shipment using functional test procedures aligned with ABB’s original factory acceptance criteria. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Units are packaged in anti-static ESD-safe materials and shipped with full traceability documentation.
