ABB CI570 3BSE001440R1 Original Industrial Spare AC 800M Compatible: System Stability & Industrial Spare Parts Maintenance Value

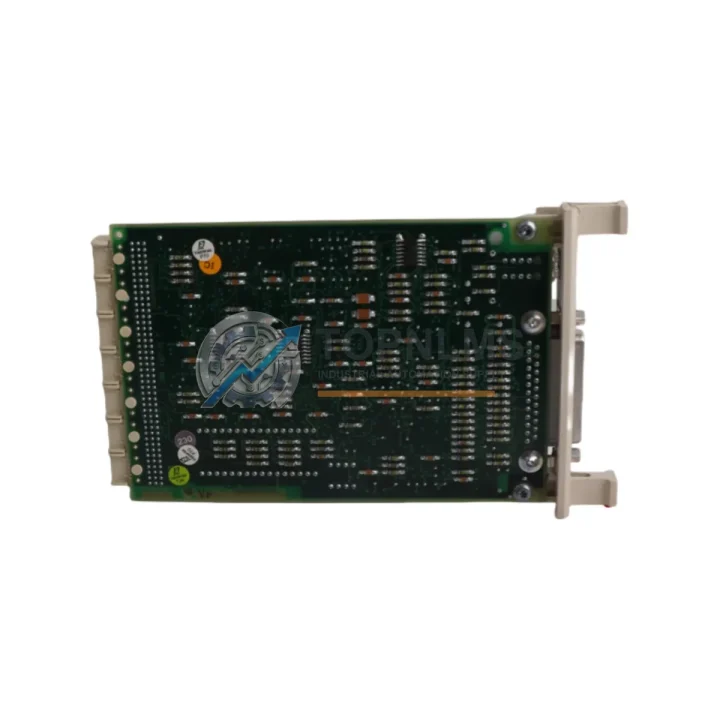

The ABB CI570 (3BSE001440R1) is an original PROFIBUS DP communication interface module engineered specifically for the ABB AC 800M Distributed Control System (DCS) platform. In high-demand industrial environments — from petrochemical refineries and power generation plants to pulp & paper mills and automotive assembly lines — the integrity of the fieldbus communication layer is non-negotiable. A failed or degraded CI570 module can sever the link between the AC 800M controller and dozens of PROFIBUS DP slave devices, triggering cascading alarms, unplanned shutdowns, and costly production losses. Stocking a verified original CI570 3BSE001440R1 as a ready-to-deploy spare is one of the most cost-effective decisions a maintenance team can make.

Critical Technical Specs

Preventive Maintenance Strategy

When a CI570 3BSE001440R1 is flagged for replacement during a scheduled shutdown or emergency corrective maintenance, experienced automation engineers treat the event as an opportunity for a broader system health audit. The PROFIBUS DP segment served by the CI570 connects to a wide range of field devices — variable frequency drives, remote I/O stations, valve positioners, and intelligent motor starters — all of which share the same communication bus. A degraded module often masks underlying issues in the fieldbus wiring or termination resistors, so a full segment scan is recommended before the new module is commissioned.

During the same maintenance window, it is best practice to inspect the AC 800M PM864 or PM866 controller module seated in the same rack. Controller firmware should be verified against the CI570’s supported firmware matrix to prevent compatibility mismatches after the swap. The TB807 or TB820 S800 I/O terminal base units connected downstream on the PROFIBUS segment should be checked for loose terminal connections and corrosion, particularly in humid or chemically aggressive environments.

The SD821 or SD822 power supply modules feeding the AC 800M rack deserve attention during any CI570 replacement job. An aging or undersized power supply can introduce voltage ripple that manifests as intermittent communication faults — symptoms that are frequently misdiagnosed as a faulty CI570. Replacing the communication module without verifying power supply health risks a repeat failure within weeks.

On the PROFIBUS DP cable side, the PROFIBUS DP bus connector (9-pin Sub-D, 90° or 45° type) at the CI570 port should be inspected for pin damage and cable shield continuity. Facilities that run long PROFIBUS segments should also verify that active PROFIBUS repeaters or optical link modules (OLM) in the segment are functioning correctly, as these components are often overlooked during module-level maintenance.

For plants running mixed ABB and third-party field devices, the CI572 or CI574 PROFIBUS DP master modules — which offer expanded slave capacity — are worth evaluating as part of a longer-term system upgrade plan. Stocking one CI570 alongside a CI572 provides redundancy coverage across different rack configurations without requiring a full system redesign.

Finally, the AF100 or MODULEBUS communication cables connecting the AC 800M controller to expansion I/O clusters should be inspected for chafing and connector seating. A loose MODULEBUS connection can produce fault signatures nearly identical to a failed CI570, making cable integrity verification an essential step before condemning any communication module.

Strategic Replacement Solutions

The CI570 3BSE001440R1 has been in service across AC 800M installations commissioned from the late 1990s through the 2010s. Many of these systems remain in production today, supported by maintenance teams who must source original spare parts from a shrinking pool of authorized distributors. TOPNLMS specializes in exactly this scenario: sourcing, testing, and supplying original ABB modules for legacy and current-generation AC 800M systems, enabling plants to extend the operational life of their DCS infrastructure without committing to a full platform migration.

Unlike counterfeit or refurbished modules that may pass visual inspection but fail under load, every CI570 3BSE001440R1 supplied by TOPNLMS undergoes functional verification prior to shipment. The module is tested for PROFIBUS DP communication integrity, backplane bus signaling, and LED diagnostic behavior. This pre-shipment testing protocol significantly reduces the risk of installing a defective spare during a time-critical shutdown window.

For maintenance planners managing aging AC 800M systems, the CI570 represents a direct, drop-in replacement that requires no firmware reconfiguration of the controller or re-engineering of the PROFIBUS segment. The original hardware address and GSD file remain valid, meaning the replacement module can be commissioned in minutes rather than hours. This compatibility advantage directly translates to reduced mean time to repair (MTTR) and lower total cost of ownership for the control system.

Support FAQ

Q1: Is the CI570 3BSE001440R1 compatible with all AC 800M controller variants?
The CI570 is compatible with the full range of AC 800M PM-series controllers, including PM851, PM856, PM860, PM861, PM864, and PM866. It occupies a dedicated communication module slot on the AC 800M rack and does not require hardware modification. Compatibility with specific firmware versions should be verified against ABB’s CI570 product release notes for your controller’s installed firmware revision.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested before shipment. In the event of a warranty claim, contact TOPNLMS at [email protected] with your order number and a description of the fault. Replacement or refund is processed within the warranty period from the date of delivery.

Q3: How should the CI570 be stored if purchased as a long-term spare?
Store the CI570 in its original anti-static packaging in a dry environment between -40 °C and +70 °C with relative humidity below 75%, non-condensing. Avoid storage near strong electromagnetic fields or corrosive chemicals. Inspect the module annually for any signs of oxidation on the backplane connector pins. Properly stored, the module can remain shelf-ready for 5–10 years without degradation of electronic components.

Q4: Can TOPNLMS supply multiple CI570 units for a plant-wide spare parts program?
Yes. TOPNLMS supports bulk procurement for maintenance departments and EPC contractors managing multiple AC 800M systems. Volume pricing and consolidated shipment options are available. Contact [email protected] or call +86 18359293191 to discuss your spare parts program requirements, lead times, and quantity pricing.
