ABB CI545V01 3BSE011063R1 Replacement for AC450 Series

Product Overview

ABB CI545V01 3BSE011063R1 Replacement for AC450 Series: Seamless Migration & Upgrade Solution

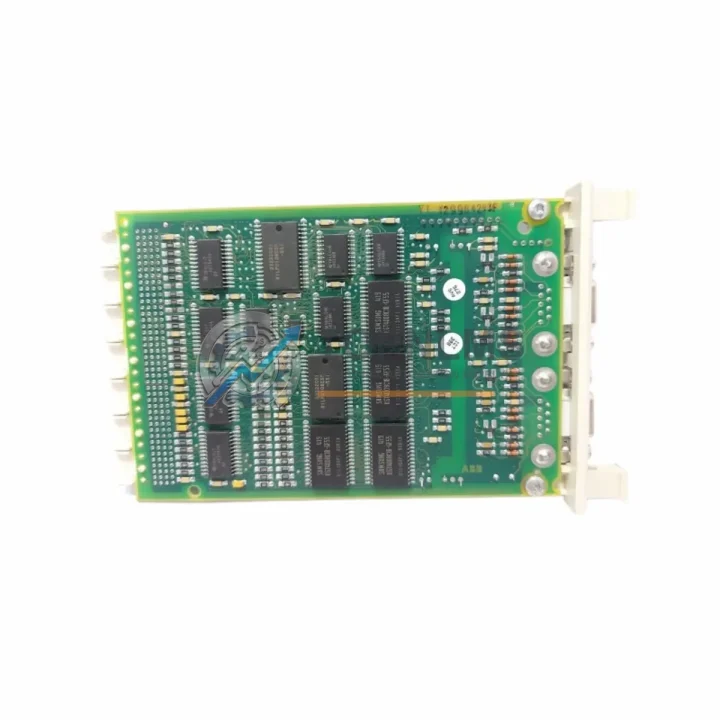

The ABB CI545V01 (3BSE011063R1) is the Ethernet MVI communication module designed for the ABB AC450 DCS platform. As legacy AC450 systems approach end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement units that maintain full backward compatibility with existing rack infrastructure, wiring terminations, and control logic. TOPNLMS stocks tested CI545V01 modules ready for immediate dispatch, enabling your team to restore system availability with minimal disruption to production.

The CI545V01 serves as the primary Ethernet-based communication interface within the AC450 controller cabinet, bridging the S800 I/O bus and the plant-level Ethernet network. When this module fails or reaches end-of-support, the entire controller node loses supervisory communication, triggering process shutdowns. A verified replacement unit from TOPNLMS allows maintenance teams to swap the module in-place without modifying the existing TB820V2 ModuleBus modem, PM864A processor module, or the SD821 / SD822 power supply units already installed in the cabinet — preserving wiring integrity and reducing recommissioning time to hours rather than days.

Migration projects involving the CI545V01 typically arise in one of three scenarios: emergency breakdown replacement of a failed unit, planned lifecycle upgrade from an older CI541V1 or CI543V1 communication module to the CI545V01’s enhanced Ethernet MVI capability, or a broader DCS modernization effort transitioning from the AC450 platform toward the ABB System 800xA architecture. In all three cases, the physical form factor, 24 VDC power draw, and S800 ModuleBus connector pinout of the CI545V01 remain consistent with predecessor modules, allowing direct installation into the existing DP820 PROFIBUS module rack slot without mechanical modification.

For sites running PROFIBUS DP fieldbus networks alongside Ethernet supervision, the CI545V01 co-exists with the CI840A PROFIBUS DP communication interface in the same controller cabinet. Engineers migrating from older CI541V1 units should verify that the AF100 fieldbus segment addressing and node configuration files stored in the PM864A are updated to reflect the CI545V01’s MAC address and IP assignment before going live. TOPNLMS can supply the CI545V01 alongside compatible TB825 ModuleBus optical modem units and CI522A AF100 communication interface modules to support complete segment upgrades in a single procurement order.

Physical installation follows the standard AC450 hot-insertion procedure. The CI545V01 slides into the MB510 ModuleBus cluster backplane and locks with the standard front-panel latch. No special tools are required. The module draws power from the cabinet’s 24 VDC rail via the backplane connector — no separate power wiring is needed. LED status indicators on the front panel confirm Ethernet link status, ModuleBus communication health, and module self-test results within 30 seconds of power-up, allowing field technicians to validate the replacement before resuming process control.

Procurement teams evaluating the CI545V01 as a long-term spare should note that TOPNLMS maintains buffer stock of this module specifically to support AC450 installed base customers. Each unit undergoes functional verification prior to shipment, including power-on self-test, Ethernet port continuity check, and visual inspection of the ModuleBus connector pins. Units are shipped in anti-static packaging with individual serial number documentation. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express courier options available for emergency breakdown situations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CI545V01 migration rarely involves a single module in isolation. In most AC450 cabinet retrofits, the communication module replacement is coordinated with adjacent components to ensure system-wide stability. The TB820V2 ModuleBus modem is the most common companion replacement — aging TB820V2 units can introduce intermittent S800 bus errors that are misdiagnosed as CI545V01 faults, so replacing both simultaneously eliminates ambiguity during commissioning. Similarly, the PM864A processor module firmware version must be at a compatible revision level to recognize the CI545V01’s Ethernet MVI interface; TOPNLMS can advise on firmware compatibility based on your existing PM864A label information.

For cabinets where PROFIBUS DP fieldbus segments connect field instruments and variable-speed drives, the CI840A PROFIBUS DP communication interface is frequently upgraded in the same maintenance window as the CI545V01, since both modules share the same 24 VDC backplane power rail and ModuleBus cluster. Sites with remote I/O drops connected via TB825 ModuleBus optical modem links should inspect fiber connector cleanliness and optical power budgets before restarting the controller node after the CI545V01 swap — degraded fiber links are a common source of post-replacement communication alarms.

Power supply integrity is critical during any AC450 module replacement. The SD821 24 VDC power supply and its redundant partner SD822 should be load-tested before the maintenance window to confirm that the cabinet’s power budget accommodates the CI545V01 alongside any additional I/O modules added during the retrofit. For sites expanding I/O capacity as part of the upgrade, AI810 analog input modules and DI810 digital input modules in the S800 I/O family are fully compatible with the CI545V01’s ModuleBus architecture and can be added to existing TB810 ModuleBus termination unit clusters without controller reconfiguration beyond I/O address mapping.

Engineering teams managing the transition from AC450 to System 800xA should note that the CI545V01 is also supported in hybrid migration architectures where the AC450 controller continues to run legacy process loops while System 800xA assumes supervisory and historian functions via the Ethernet MVI interface — deferring the full cutover and reducing project risk.

Retrofit Guidance FAQ

Q: Can I replace the CI545V01 without modifying existing cabinet wiring?
A: Yes. The CI545V01 uses the same MB510 ModuleBus backplane connector as predecessor communication modules. No field wiring changes are required. Only the Ethernet patch cable connecting the module to the plant network needs to be routed to the RJ45 port on the CI545V01 front panel.

Q: Do I need to reload the control program after replacing the CI545V01?
A: In most cases, no. The control application resides in the PM864A processor module, not in the CI545V01. After the module swap, the PM864A re-establishes communication with the CI545V01 automatically during the controller restart sequence. IP address and node configuration parameters stored in the CI545V01 must be re-entered via the AC450 engineering tool if the replacement unit is a new (unconfigured) module.

Q: Is the CI545V01 compatible with both 10 Mbps and 100 Mbps Ethernet switches?
A: Yes. The CI545V01 supports auto-negotiation on its Ethernet MVI port and is compatible with standard managed and unmanaged industrial Ethernet switches operating at 10 or 100 Mbps. Full-duplex operation is supported.

Q: What is the physical installation space requirement?
A: The CI545V01 occupies one standard AC450 module slot in the MB510 ModuleBus cluster. No additional DIN rail space or cabinet cutouts are required. The module’s front panel depth is consistent with other AC450 S800 family modules, so existing cable management trays and door clearances are unaffected.

Q: Can the CI545V01 coexist with PROFIBUS DP modules in the same cabinet?
A: Yes. The CI545V01 (Ethernet MVI) and CI840A (PROFIBUS DP) serve different communication roles and can be installed in the same MB510 cluster simultaneously. They operate independently on the ModuleBus and do not interfere with each other’s fieldbus segments.

Q: What happens if the replacement CI545V01 shows a red fault LED after installation?
A: A red fault LED typically indicates a configuration mismatch or an IP address conflict on the Ethernet network. Verify that the module’s node address and IP settings match the values previously configured in the AC450 engineering database. If the fault persists, contact TOPNLMS technical support — our team can assist with remote troubleshooting guidance.

Warranty Assurance

Every CI545V01 (3BSE011063R1) unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes power-on functional verification, Ethernet port continuity testing, ModuleBus connector pin inspection, and firmware version documentation. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim confirmation — no extended RMA queues. Our after-sales team is reachable via email at [email protected] and by phone at +86 18359293191 for urgent breakdown situations. We maintain replacement stock specifically to honor warranty commitments without delay.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list with individual serial numbers, and a commercial invoice suitable for customs clearance. Export from Xiamen, China is handled via DHL, FedEx, or UPS with full tracking. Typical transit time to Europe is 3–5 business days; to North America, 4–7 business days.

Bulk orders of 5 or more units qualify for priority allocation from our buffer stock, ensuring that your maintenance team has sufficient spares on hand for the full AC450 installed base lifecycle. Contact us to discuss volume pricing and consignment stocking arrangements.
