ABB CI543 3BSE010699R1 Original Industrial Spare AC 800M Compatible

Product Overview

ABB CI543 3BSE010699R1 Original Industrial Spare AC 800M Compatible: System Stability & Industrial Spare Maintenance Value

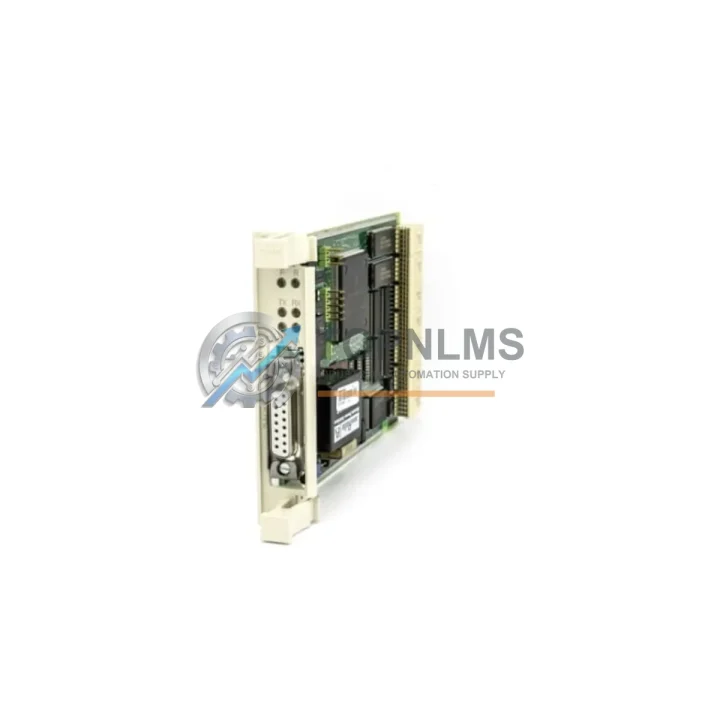

The ABB CI543 (3BSE010699R1) is an original PROFIBUS DP interface module engineered for ABB’s AC 800M controller platform — one of the most widely deployed distributed control system (DCS) architectures in process industries worldwide. Whether you are managing a petrochemical plant, a pulp and paper facility, a power generation unit, or a water treatment station, the CI543 serves as a mission-critical communication bridge between the AC 800M controller and PROFIBUS DP field devices including drives, valve positioners, remote I/O stations, and intelligent sensors.

Sourcing a verified original CI543 3BSE010699R1 is not merely a procurement decision — it is a system stability decision. Counterfeit or incompatible substitutes risk firmware handshake failures, bus timing errors, and unplanned shutdowns that can cost tens of thousands of dollars per hour in lost production. TOPNLMS supplies only original, factory-tested units with full traceability, backed by a 12-month quality warranty.

Critical Technical Specs Table

Preventive Maintenance Strategy

In any AC 800M-based control cabinet, the CI543 does not operate in isolation. A disciplined preventive maintenance program must treat the entire communication chain and power distribution architecture as an integrated system. When scheduling a planned shutdown or responding to an unplanned trip, maintenance engineers should use the opportunity to inspect and, where necessary, replace adjacent components that share the same operational stress cycles.

Begin with the AC 800M controller processor module (such as the PM856 or PM864) — the CI543’s host. Verify firmware version compatibility and check for corrosion on the backplane connector pins. Next, inspect the SD802F or SD803F power supply modules that feed the controller rack; degraded capacitors in aging power supplies are a leading cause of intermittent PROFIBUS communication faults that are often misdiagnosed as CI543 failures.

Move along the PROFIBUS trunk cable and examine the PROFIBUS DP bus termination resistors and connectors at both ends of the segment. Loose or oxidized DB9 connectors introduce impedance mismatches that manifest as CRC errors and slave dropouts. If the installation uses PROFIBUS repeaters to extend segment length beyond 1,200 meters, inspect those units for overheating signs and verify their termination switches are correctly set.

At the field device level, check the ABB ACS800 or ACS880 variable frequency drives connected via PROFIBUS — their onboard RPBA-01 or FPBA-01 adapter cards are common failure points in high-vibration environments. Similarly, inspect any ABB TZIDC or EDP300 intelligent valve positioners on the bus for firmware currency and mechanical wear.

Within the control cabinet itself, audit the 24 VDC distributed power rail and fuse modules supplying field transmitters. A blown fuse on a power segment can cause multiple PROFIBUS slaves to drop simultaneously, creating a misleading picture of a bus-level fault. Alongside this, verify the condition of signal isolators and surge protection modules on analog input channels — these are frequently overlooked during routine inspections yet are critical for signal integrity in electrically noisy plant environments.

Finally, review the AC 800M S800 remote I/O modules (such as AI810, AO810, DI810, DO810) connected downstream of the CI543. These modules have defined service lives and should be part of a rolling replacement schedule rather than a reactive break-fix approach. Maintaining a small buffer stock of the CI543 3BSE010699R1 alongside key S800 I/O modules and the PM-series processor is the most cost-effective strategy for minimizing mean time to repair (MTTR) in AC 800M installations.

Strategic Replacement Solutions

The CI543 3BSE010699R1 was introduced as part of ABB’s AC 800M platform in the early 2000s and remains in active use across thousands of installations globally. Many plants that commissioned AC 800M systems between 2000 and 2015 are now entering the phase where original communication modules are reaching end-of-reliable-service life — typically 10 to 15 years under continuous industrial duty.

Replacing a CI543 does not require a controller migration. The module slots directly into the AC 800M backplane and is recognized by the controller firmware without reconfiguration, provided the replacement unit carries the same hardware revision. This plug-and-play compatibility is a significant advantage over cross-brand substitution, which would require PROFIBUS GSD file updates, slave address reassignment, and extensive commissioning validation — all of which extend downtime.

For plants operating legacy AC 800M systems with no near-term migration budget, maintaining a dedicated spare parts inventory that includes the CI543 is the most pragmatic risk mitigation strategy. A single unplanned shutdown caused by a failed communication module, with no spare on hand, can easily exceed the cost of stocking five replacement units. TOPNLMS offers competitive pricing on multi-unit orders, enabling maintenance managers to build strategic buffer stock without excessive capital outlay.

All units supplied by TOPNLMS are pre-shipment tested, individually packaged with anti-static protection, and accompanied by inspection documentation. Delivery is available worldwide with standard lead times of 3–7 business days for in-stock units.

Support FAQ

Q1: Is the CI543 3BSE010699R1 still in production, and what is its expected service life?
ABB has transitioned the AC 800M platform toward newer communication options, but the CI543 remains available as an original spare through authorized distributors and specialist suppliers like TOPNLMS. Original units in continuous industrial service typically achieve 10–15 years of reliable operation. Proactive replacement at the 10-year mark is recommended for critical process loops.

Q2: How do I verify compatibility with my specific AC 800M controller revision?
The CI543 is compatible with all AC 800M PM8xx series processor modules. Confirm your controller’s hardware revision via the ABB Control Builder M software or the module label. If your system runs a firmware version prior to 5.0, contact TOPNLMS before ordering — our technical team can advise on hardware revision matching to ensure seamless installation.

Q3: What pre-shipment testing does TOPNLMS perform on the CI543?
Every CI543 unit undergoes power-on functional verification, PROFIBUS communication handshake testing, and visual inspection for connector integrity and PCB condition before dispatch. Units that do not pass all checks are quarantined and not sold. A test report summary is available upon request for quality-critical procurement processes.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact TOPNLMS via email with your order number and a description of the fault. Replacement units are dispatched upon fault confirmation, with return shipping of the defective unit required for RMA processing.
