ABB CI530 Replacement/Upgrade Solution for AC450

Product Overview

ABB CI530 Replacement/Upgrade Solution for AC450: Smooth Migration from Legacy PROFIBUS DP & MB300 Systems

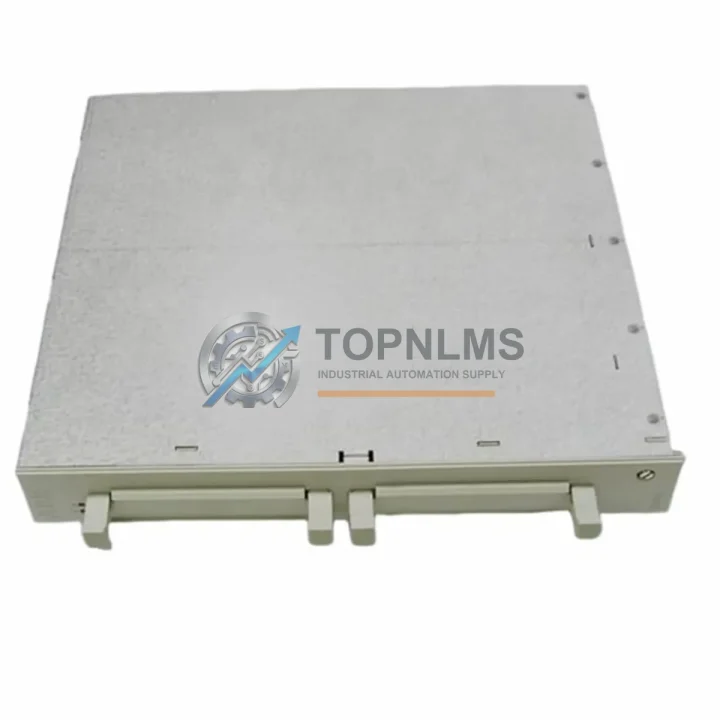

The ABB CI530 Communication Interface Module is a critical gateway component within the ABB Advant Controller 450 (AC450) distributed control system architecture. Designed to bridge PROFIBUS DP fieldbus networks and the MB300 Masterbus communication backbone, the CI530 enables seamless data exchange between field devices, I/O stations, and the central AC450 controller. As this module approaches end-of-life and becomes increasingly difficult to source through standard distribution channels, TOPNLMS provides verified replacement and upgrade solutions to help industrial facilities maintain operational continuity without costly full-system overhauls.

Whether you are managing a petrochemical plant, a pulp and paper mill, a power generation facility, or a water treatment station still running on the AC450 platform, the CI530 replacement process requires careful attention to wiring compatibility, communication protocol continuity, rack slot allocation, and firmware alignment. This guide covers the complete migration pathway to help your engineering and maintenance teams execute a confident, low-downtime swap.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CI530 migration rarely involves a single module in isolation. In most AC450 installations, the CI530 works in concert with a broader ecosystem of hardware that must be evaluated and, in some cases, simultaneously refreshed to ensure system-wide stability.

On the power supply side, the ABB SS822 and SS823 Power Supply Modules feed the S100 I/O rack backplane. If your facility is conducting a planned maintenance window for the CI530 swap, it is advisable to inspect these units for capacitor aging, especially in installations exceeding ten years of continuous operation. A degraded power supply can cause intermittent communication faults that are easily misattributed to the interface module itself.

For PROFIBUS DP segment integrity, the ABB TB820 PROFIBUS DP Termination Board and associated DP/PA segment couplers should be verified for correct termination resistance. Improper termination is one of the most common causes of communication instability after a module replacement. If your fieldbus segment connects to ABB S800 I/O modules — such as the AI810, AO810, DI810, or DO810 — confirm that the GSD files loaded in your configuration tool match the firmware versions currently installed on those remote I/O stations.

On the Masterbus MB300 side, the ABB MB300 Masterbus Interface topology should be reviewed. If the CI530 is the sole MB300 node on a segment, ensure that the bus termination plug is correctly repositioned after module removal to prevent reflections that could disrupt adjacent nodes, including the ABB PM150 / PM511 Processor Modules that host the AC450 control application.

For facilities considering a partial modernization rather than a like-for-like replacement, the ABB CI857 PROFINET Interface Module offers a migration path from PROFIBUS DP to PROFINET IO within the AC800M platform. While this requires a more substantial engineering effort — including I/O remapping and control application migration — it future-proofs the communication infrastructure against the continued decline of PROFIBUS DP device availability.

Programming cable and laptop connectivity should also be confirmed. The ABB TK212A USB-to-Serial Programming Cable or equivalent RS-232 adapter is required for parameter download and diagnostic access during commissioning. Ensure your engineering workstation has the correct version of ABB Control Builder or Advant Builder installed before beginning the replacement procedure.

Retrofit Guidance FAQ

Q: Do I need to rewire the PROFIBUS DP connector when replacing the CI530?
A: In standard installations, no rewiring is required. The CI530 uses a standard 9-pin D-Sub PROFIBUS connector. Simply transfer the existing cable to the replacement module, verify termination, and proceed with parameter download.

Q: Will my existing AC450 control application run without modification after the swap?
A: Yes, provided the replacement CI530 is loaded with a compatible firmware version. The control application resides on the PM150/PM511 processor module and is not affected by the interface module replacement. A parameter re-download to the new CI530 is required to restore the PROFIBUS DP node configuration.

Q: How do I verify PROFIBUS DP communication is restored after installation?
A: Use the ABB Control Builder diagnostic view or a standalone PROFIBUS DP analyzer to confirm that all configured slave devices are responding. Check the CI530 status LEDs — steady green on the BUS indicator confirms active communication. Any flashing or red indication requires segment-level troubleshooting.

Q: Can the CI530 be replaced while the AC450 system is running (hot-swap)?
A: The AC450 S100 rack supports hot-swap for interface modules in most configurations. However, PROFIBUS DP communication to all slaves on the affected segment will be interrupted during the swap. Coordinate with your process control team to schedule the replacement during a safe operational window.

Q: What if my installation uses both PROFIBUS DP and MB300 simultaneously on the CI530?
A: The CI530 supports concurrent PROFIBUS DP and MB300 operation. The replacement module must be configured for both protocols. Confirm the MB300 node address and baud rate settings match the original configuration before powering up the replacement unit.

Q: Is the CI530 compatible with the ABB AC410 controller?
A: The CI530 is natively designed for the AC450 platform. Compatibility with AC410 depends on the specific rack and backplane version. Contact TOPNLMS with your full system configuration for a compatibility assessment before ordering.

Warranty Assurance

Every ABB CI530 Communication Interface Module supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional pre-shipment test to verify communication interface integrity, backplane connector condition, and firmware operability. This test protocol is designed to replicate real-world AC450 rack conditions and catch latent defects before the module reaches your facility.

In the event of a warranty claim, TOPNLMS provides a direct replacement dispatch within 3 business days of fault confirmation, minimizing the impact on your production schedule. Our after-sales support team — reachable at [email protected] or +86 18359293191 — is available to assist with installation guidance, firmware version queries, and compatibility verification throughout the warranty period.

For procurement teams, TOPNLMS issues a formal invoice, packing list, and certificate of conformity with every shipment. Expedited shipping options are available for urgent breakdown situations, with DHL Express and FedEx International Priority services covering most global destinations within 3–5 business days from our Xiamen warehouse.

Stock availability is confirmed at the time of order. For high-volume or blanket purchase orders, contact our sales team to discuss reserved stock arrangements and lead time guarantees tailored to your maintenance planning cycle.
