ABB CI520V1 3BSE012869R1 Replacement for AC500: Seamless AF100 Fieldbus Migration

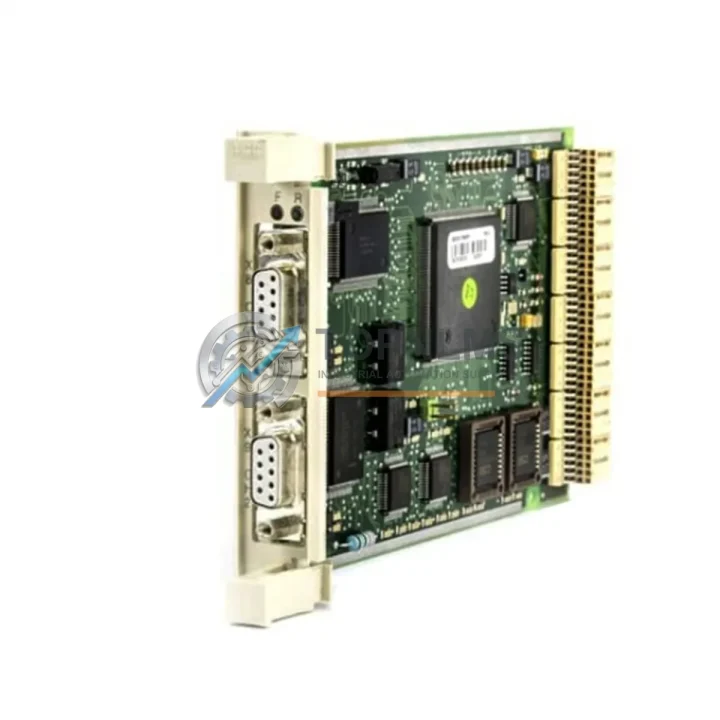

The ABB CI520V1 (catalog number 3BSE012869R1) is the AF100 Fieldbus Interface Module for the ABB AC500 PLC platform. As legacy AC500 installations age and original CI520V1 units reach end-of-service, plant engineers and procurement teams face a critical decision: source a verified replacement quickly or risk extended unplanned downtime. TOPNLMS stocks tested CI520V1 3BSE012869R1 units ready for immediate dispatch from Xiamen, China, supporting smooth migration from discontinued or worn-out fieldbus interface hardware without requiring controller reprogramming or rack redesign.

The CI520V1 slots directly into the AC500 CPU rack alongside the PM5xx and PM5x5 processor modules, maintaining the same backplane connector pinout and rack addressing scheme used across the AC500 family. Engineers migrating from older CI520 revisions or from third-party AF100 gateways will find that the CI520V1 retains full backward compatibility with AF100 optical fiber ring topology, supporting data exchange rates and node counts consistent with the original system specification. No changes to the PROFIBUS DP master configuration, Modbus TCP routing tables, or IEC 61131-3 application code in Control Builder Plus are required when performing a like-for-like swap.

For sites upgrading from legacy S500 I/O systems or migrating from competitor platforms such as Siemens S7-300 with CP 342-5 PROFIBUS modules or Schneider Electric Quantum with NOE 771 Ethernet modules, the CI520V1 provides a structured migration path. The AF100 fieldbus ring connects distributed I/O stations — including TU505, TU516, and TU531 terminal units paired with DI581, DO581, AI531, and AO523 I/O modules — without altering field wiring at the terminal block level. This preserves the existing cable infrastructure and dramatically reduces retrofit labor costs on the plant floor.

Power supply compatibility is a common concern during fieldbus module replacement. The CI520V1 draws its operating power from the AC500 backplane, supplied by the PS501 or PS560 power supply modules already installed in the rack. No additional 24 VDC field power wiring to the module itself is required, simplifying the physical swap procedure. Engineers should verify that the existing power supply module’s total load budget accommodates the CI520V1’s backplane current draw, particularly in fully populated racks where PM583 or PM592 CPUs and multiple communication modules such as the CM589-PNIO PROFINET module or CM578-CN CANopen module are co-installed.

Communication protocol continuity is essential for migration projects. The CI520V1 operates exclusively on the AF100 optical fiber fieldbus protocol native to the ABB AC500 and S500 ecosystems. Sites that have standardized on AF100 for distributed I/O communication will experience zero protocol reconfiguration overhead. For plants considering a broader migration to PROFINET or EtherNet/IP architectures, the CI520V1 replacement can serve as an interim solution while the full network transition is planned, allowing production to resume immediately while the longer-term architecture work proceeds in parallel.

Physical installation follows the standard AC500 module insertion procedure: power down the rack, align the CI520V1 with the backplane slot guides, seat the module firmly until the locking tabs engage, and reconnect the AF100 fiber optic cables to the RX and TX ports. The module’s LED indicators — RUN, ERR, and the AF100 link status LEDs — provide immediate commissioning feedback without requiring a laptop connection. Control Builder Plus will automatically recognize the module upon CPU restart if the hardware configuration was previously defined, or the configuration can be updated online using the hardware editor without a full program download.

Spare parts planning is a key driver for procurement decisions on CI520V1 units. As ABB transitions its AC500 portfolio toward newer communication standards, availability of original CI520V1 stock through authorized distribution channels becomes increasingly constrained. TOPNLMS maintains buffer inventory specifically to support maintenance teams that require fast turnaround on critical fieldbus interface replacements. Each unit undergoes functional verification prior to shipment, covering backplane communication, AF100 optical port integrity, and LED diagnostic behavior.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CI520V1 migration rarely involves the fieldbus interface module in isolation. In most AC500 installations, the CI520V1 works in concert with a PM583 or PM592 CPU module that manages the application program and coordinates I/O data exchange across the AF100 ring. Engineers replacing the CI520V1 should confirm that the CPU firmware version supports the CI520V1 hardware revision to avoid compatibility flags in Control Builder Plus during the hardware configuration scan.

Distributed I/O stations connected via the AF100 ring typically use TU505 or TU516 terminal units paired with digital and analog I/O modules such as the DI581 24-channel digital input module, the DO581 digital output module, the AI531 analog input module, and the AO523 analog output module. These I/O modules remain fully operational during a CI520V1 swap because the AF100 ring topology allows the station to buffer data locally during the brief module replacement window, minimizing process interruption.

For sites that also need to extend communication beyond the AF100 ring, the CM589-PNIO PROFINET I/O module or the CM578-CN CANopen master module can be co-installed in adjacent rack slots alongside the CI520V1, enabling hybrid communication architectures without replacing the existing AF100 infrastructure. Power supply integrity should be validated using the PS501-POW or PS560 power supply module’s load calculation tool before adding communication modules to a populated rack.

Field wiring termination at the I/O station level is handled through the TU505 or TU531 terminal units, which accept standard 2.5 mm² screw-clamp connections. Because these terminal units are wired independently of the CI520V1 module itself, field cable connections remain undisturbed during the fieldbus interface replacement, further reducing commissioning time and the risk of wiring errors during the retrofit.

Retrofit Guidance FAQ

Q: Do I need to modify my IEC 61131-3 application program when replacing the CI520V1?
A: No. The CI520V1 3BSE012869R1 is a like-for-like hardware replacement. The application program running on the PM5xx CPU does not reference the CI520V1 directly — it communicates with the I/O modules via the AF100 ring, which the CI520V1 manages transparently. No program changes are required for a direct swap.

Q: Are the AF100 fiber optic cables compatible with the replacement unit?
A: Yes. The CI520V1 uses standard ST-type fiber optic connectors for the RX and TX ports, identical to earlier CI520 revisions. Existing fiber patch cables and ring topology wiring can be reconnected without modification.

Q: What is the physical installation procedure?
A: Power down the AC500 rack using the PS501 or PS560 power supply switch. Remove the faulty CI520V1 by releasing the locking tabs and pulling the module from the backplane slot. Insert the replacement CI520V1, ensuring full backplane connector engagement. Reconnect the AF100 fiber cables to the RX and TX ports. Restore power and observe the RUN and AF100 link LEDs for normal operation status.

Q: Will the Control Builder Plus hardware configuration need to be updated?
A: If the replacement CI520V1 is the same hardware revision as the original, the existing hardware configuration will be recognized automatically on CPU restart. If the revision differs, a minor hardware configuration update in Control Builder Plus may be required, but no application code changes are needed.

Q: Can the CI520V1 be used in a mixed AC500 / S500 I/O architecture?
A: Yes. The CI520V1 is specifically designed to interface AC500 CPUs with S500 distributed I/O stations over the AF100 optical fiber ring. This mixed architecture is the standard deployment model for AC500 systems with remote I/O.

Q: What if my installation space is constrained?
A: The CI520V1 occupies exactly one slot in the AC500 rack, identical to the original CI520. No additional mounting hardware, DIN rail adapters, or cabinet space modifications are required.

Warranty Assurance

Every CI520V1 3BSE012869R1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a pre-shipment functional verification that includes backplane communication testing, AF100 optical port integrity checks, and LED diagnostic confirmation. Units that do not pass verification are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for customers in active production environments. Our after-sales response target is within 24 hours of claim submission. Replacement units are dispatched from our Xiamen warehouse, with express international shipping options available to minimize the impact on your production schedule.

Procurement teams can request a pre-shipment inspection report or certificate of conformance for quality assurance documentation purposes. We support standard B2B purchase order workflows, proforma invoice issuance, and bank transfer payment terms for qualified accounts.

For volume orders, scheduled delivery programs, or consignment stock arrangements for maintenance-critical AC500 fieldbus interface spares, please contact our sales team directly to discuss tailored supply agreements.
