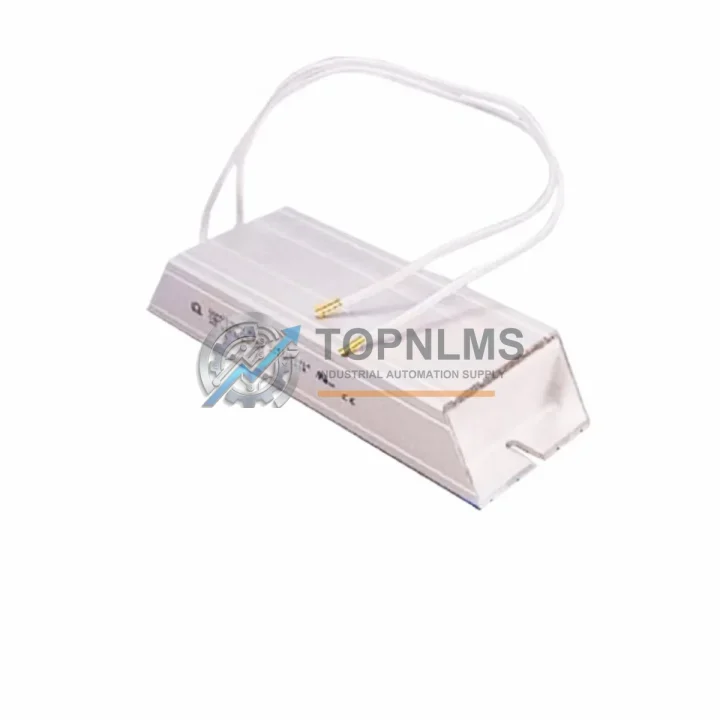

ABB CBHX165C 5R 414 Original Industrial Spare ACS800 Compatible

Product Overview

ABB CBHX165C 5R 414 Original Industrial Spare ACS800 Compatible: Ensuring System Stability in Drive Maintenance

The ABB CBHX165C 5R 414 is an original DC bus pre-charge resistor engineered specifically for the ABB ACS800 series variable frequency drives. In industrial environments where unplanned downtime translates directly into production losses and costly emergency repairs, maintaining a verified stock of critical drive components is not optional — it is a core pillar of any responsible preventive maintenance program. This pre-charge resistor limits inrush current during drive power-up, protecting the DC bus capacitors and the entire drive assembly from destructive voltage spikes. Its failure is one of the most common root causes of ACS800 drive faults, making it an essential spare for any facility running ABB drive systems.

Whether you are managing a paper mill, a water treatment plant, a cement production line, or a large-scale HVAC system, the ACS800 platform is likely at the heart of your variable-speed motor control architecture. Keeping the CBHX165C 5R 414 on your shelf means that when a pre-charge fault is triggered — often surfacing as fault code F-0022 or a DC bus overvoltage alarm — your maintenance team can execute a same-shift replacement rather than waiting days or weeks for a sourced component.

Critical Technical Specs

Preventive Maintenance Strategy for ACS800 Drive Systems

A pre-charge resistor failure rarely occurs in isolation. When the CBHX165C 5R 414 shows signs of degradation — evidenced by repeated soft-start faults, abnormal heating in the drive cabinet, or erratic DC bus voltage readings — it is a strong indicator that adjacent components in the same electrical circuit have been subjected to stress. A thorough maintenance inspection at this point is not just advisable; it is essential to prevent cascading failures.

During a scheduled ACS800 drive inspection or emergency shutdown, maintenance engineers should simultaneously evaluate the AINT-02C or AINT-14C auxiliary power supply boards, which regulate internal drive voltages and are frequently stressed by the same inrush events that degrade the pre-charge resistor. The APBU-44C or APBU-12C pulse encoder interface units should be checked for signal integrity, as encoder feedback errors often emerge after power cycling events. If the drive is equipped with an RDCO-03 or RDCO-04 communication adapter for PROFIBUS or DeviceNet connectivity, verify that the fieldbus communication remains stable after the resistor replacement — power transients can corrupt adapter firmware or loosen terminal connections.

Inside the control cabinet, inspect the AGPS-21C or AGPS-11C gate driver boards, which control the IGBT firing sequence. A compromised pre-charge cycle can expose these boards to voltage spikes beyond their rated tolerance. Similarly, the IOEC-03 or IOEC-04 I/O extension modules used for digital and analog signal routing should be tested for correct input/output response, as loose terminal connections or micro-arcing during fault events can introduce signal drift. Check the RMIO-11C or RMIO-02C main control boards for any fault history stored in the drive’s event log — this data is invaluable for root cause analysis and for justifying a broader spare parts procurement to management.

For facilities operating multiple ACS800 units in parallel or in a master-follower configuration, it is best practice to replace the CBHX165C 5R 414 across all drives during the same maintenance window, even if only one unit has triggered a fault. Pre-charge resistors age at similar rates under similar load profiles, and a staggered failure pattern across a drive bank is a predictable and avoidable scenario. Pair this with a review of the NINT-41C or NINT-02C inverter control boards and the associated DC bus capacitor banks to build a complete picture of drive health before returning the system to production.

Strategic Replacement Solutions: Reducing Downtime and Extending System Life

The ABB ACS800 platform has been in active industrial deployment for over two decades, and many facilities continue to operate first- and second-generation units that are no longer covered by OEM service contracts. For these aging systems, sourcing original spare parts like the CBHX165C 5R 414 is the most cost-effective strategy to extend operational life without committing to a full drive replacement — a capital expenditure that can run into tens of thousands of dollars per unit.

Using a verified original ABB component ensures that the resistance tolerance, thermal rating, and physical form factor are identical to the factory specification. Aftermarket or counterfeit resistors with out-of-tolerance resistance values will cause the pre-charge circuit to either charge too slowly — triggering timeout faults — or too quickly — failing to protect the capacitor bank. Either scenario results in premature component failure and potential damage to the drive’s rectifier bridge or DC bus capacitors, dramatically increasing repair costs.

Stocking the CBHX165C 5R 414 as part of a structured spare parts inventory program — alongside key boards, communication adapters, and I/O modules — allows maintenance teams to execute a complete drive restoration within a single shift. This approach is particularly valuable in continuous-process industries where a drive outage directly halts production. The 12-month warranty provided with every unit shipped from TOPNLMS gives procurement managers the confidence to build strategic buffer stock without concerns about shelf-life risk.

Support FAQ

Q1: How do I confirm the CBHX165C 5R 414 is compatible with my specific ACS800 drive frame size?
The CBHX165C 5R 414 is an ABB OEM component used across multiple ACS800 frame sizes. Cross-reference your drive’s type designation plate (e.g., ACS800-01, ACS800-04, ACS800-07) with the ABB spare parts catalog or contact our technical team at [email protected] with your full drive type code. We will confirm compatibility before shipment.

Q2: What is the recommended inventory quantity for a facility running 10 or more ACS800 drives?
For facilities with 10+ ACS800 units, we recommend maintaining a minimum buffer stock of 2–3 units of the CBHX165C 5R 414. Pre-charge resistors are a high-wear consumable in high-cycle applications. A buffer stock eliminates lead-time risk and supports same-day corrective maintenance without production interruption.

Q3: What pre-shipment testing is performed on each unit?
Every CBHX165C 5R 414 unit undergoes resistance value verification (5 Ω ± tolerance), insulation integrity testing, and visual inspection for physical damage before packaging. A test report is available upon request. Units are shipped in anti-static, shock-protected packaging to prevent transit damage.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events beyond drive specifications, or physical mishandling. To initiate a warranty claim, contact [email protected] with your order number, a description of the fault, and any available drive fault log data. Replacement units are dispatched upon claim verification.
