ABB CB801 3BSE042245R1 Original Industrial Spare AC800M Compatible: Ensuring System Stability in Critical Automation Environments

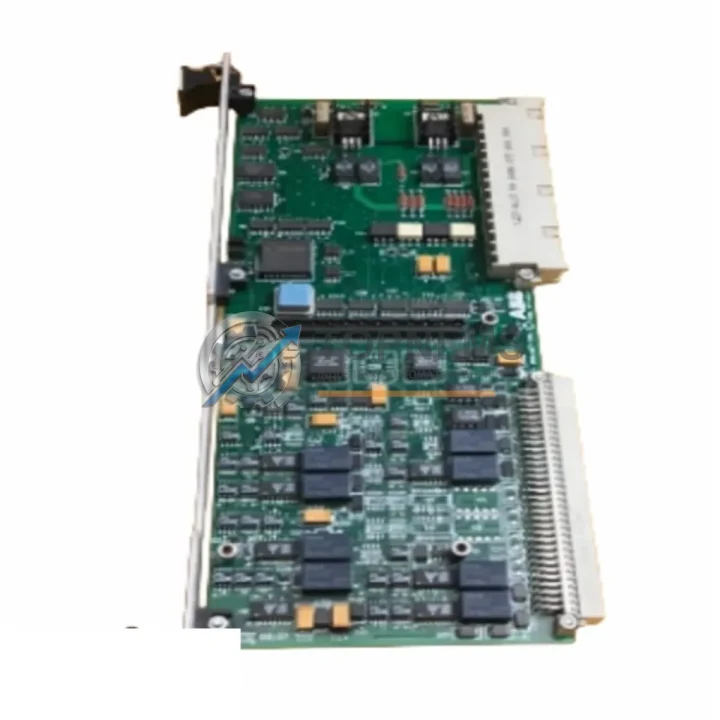

The ABB CB801 (3BSE042245R1) is an original PROFIBUS DP communication panel designed specifically for the ABB AC800M distributed control system platform. In process industries — including oil & gas, power generation, pulp & paper, and chemical manufacturing — the AC800M controller backbone is the nerve center of plant-wide automation. When a communication module fails or degrades, the consequences extend far beyond a single loop: entire process segments can go offline, triggering costly unplanned shutdowns. Stocking a verified original CB801 3BSE042245R1 is one of the most cost-effective decisions a maintenance team can make to protect uptime and preserve system integrity.

This module provides the physical and protocol-level interface between the AC800M controller and PROFIBUS DP field devices — including remote I/O stations, variable frequency drives, intelligent valve positioners, and distributed sensor networks. Its role in the control cabinet is foundational: without a functioning CB801, the controller loses visibility into and command over the entire PROFIBUS segment it manages. Replacement with a genuine ABB original ensures full protocol compliance, deterministic cycle times, and compatibility with existing GSD device files — eliminating the configuration rework that often accompanies non-original substitutes.

Critical Technical Specs

Preventive Maintenance Strategy

A PROFIBUS DP communication failure rarely occurs in isolation. In most plant environments, the CB801 module operates within a tightly coupled control cabinet ecosystem where the health of adjacent components directly affects network reliability. A proactive maintenance strategy should treat the CB801 replacement as a trigger for a broader cabinet inspection.

When scheduling a CB801 swap during a planned shutdown, maintenance engineers should simultaneously verify the condition of the AC800M PM864 or PM866 controller module — the CPU that hosts the CB801 and manages all process logic. A degraded controller can cause intermittent communication faults that are often misdiagnosed as a module failure. Alongside the controller, inspect the TB807 or TB811 termination board and associated PROFIBUS DP trunk cable and connectors: oxidized connectors and damaged shielding are among the leading causes of segment instability in aging installations.

The SD802 or SD803 power supply module feeding the AC800M rack should also be checked for output voltage drift and capacitor aging — an under-voltage condition on the backplane can cause the CB801 to reset intermittently without logging a hard fault. If the plant uses redundant PROFIBUS segments, the paired CB802 redundant communication module should be inspected and tested at the same time to ensure failover capability is intact.

For sites running mixed field device networks, it is worth auditing the CI857 HART communication interface and CI854 IEC 61850 module installed in adjacent slots — these modules share the backplane power budget and their failure modes can interact. Remote I/O cabinets connected via the PROFIBUS segment should have their S800 I/O modules (such as AI810, AO810, DI810, DO810) inspected for channel faults, as a failing I/O module can generate bus traffic anomalies that stress the CB801. Finally, review the PROFIBUS DP repeater or optical link module (OLM) if the segment spans long distances or crosses electrical isolation boundaries — these devices are often overlooked during routine maintenance but are critical to segment integrity.

Building a spare parts inventory that covers the CB801 3BSE042245R1 alongside these associated components transforms reactive maintenance into a structured reliability program, reducing mean time to repair (MTTR) and protecting production continuity.

Strategic Replacement Solutions

Many plants operating AC800M-based control systems are running installations that are 10–20 years old. Over this lifecycle, ABB has released successive firmware and hardware revisions, and some earlier CB801 variants may no longer be available through standard distribution channels. The CB801 3BSE042245R1 represents a current-production original spare that maintains backward compatibility with legacy AC800M rack configurations, allowing direct slot-for-slot replacement without controller re-configuration or GSD file updates.

For sites managing end-of-life system extensions, the CB801 also supports integration with modern PROFIBUS DP field devices — including newer generations of ABB drives (ACS880, ACS580 series), Endress+Hauser transmitters, and Siemens ET 200 remote I/O — preserving the value of the existing control architecture while accommodating incremental modernization. This makes the CB801 a strategic asset not only for emergency replacement but also for planned system life extension projects where a full DCS migration is not yet justified.

Sourcing original ABB spare parts through a verified industrial supplier ensures that each unit has been tested against factory acceptance criteria, ships with full documentation, and is covered by a 12-month warranty — providing the procurement and maintenance teams with the confidence needed to close out work orders and satisfy audit requirements.

Support FAQ

Q1: Is the CB801 3BSE042245R1 compatible with all AC800M controller variants?
The CB801 is designed for the AC800M platform and is compatible with PM851, PM856, PM860, PM861, PM864, and PM866 controller modules. It occupies a standard communication slot on the AC800M rack backplane. Always verify your specific rack configuration and firmware version against ABB’s compatibility matrix before installation.

Q2: How is each unit tested before shipment?
Every CB801 3BSE042245R1 unit is powered on and subjected to functional verification prior to dispatch, including communication interface checks and visual inspection for physical damage. Units are packed in anti-static protective packaging to prevent ESD damage during transit.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed through our support team at [email protected].

Q4: Can I use the CB801 as a long-term inventory spare for an aging AC800M system?
Yes. The CB801 3BSE042245R1 is well-suited for long-term spare parts inventory programs. When stored in a controlled environment (temperature 15–25 °C, humidity below 60% RH, away from direct sunlight and electromagnetic interference), the module maintains its functional integrity for extended periods. We recommend periodic inspection of stored spares every 12–18 months as part of your spare parts lifecycle management program.
