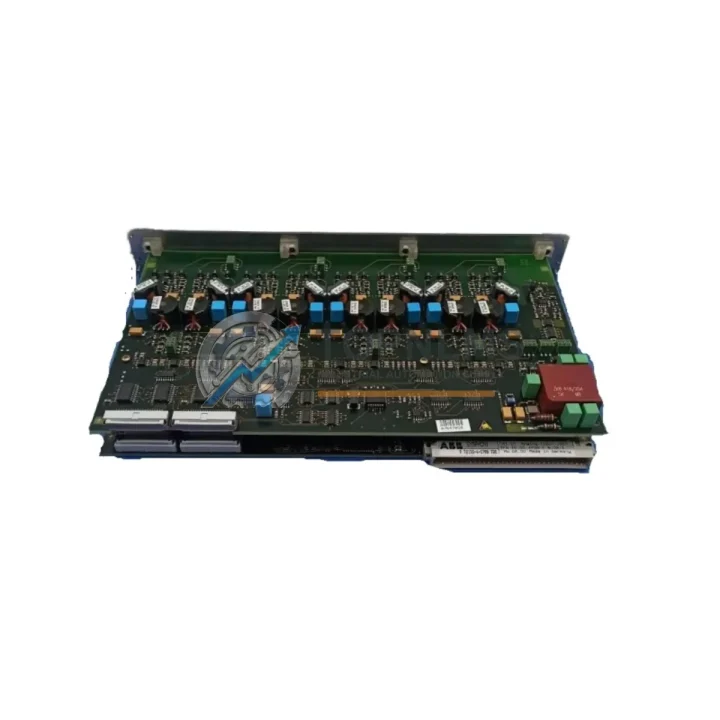

ABB CAI10 Ruggedized Analog Input Module for Harsh Environments

Product Overview

ABB CAI10 Ruggedized Analog Input Module for Harsh Environments

The ABB CAI10 is an 8-channel analog input module engineered for the AC500 PLC platform and the S500 distributed I/O system — one of ABB’s most trusted control architectures deployed across global heavy industry. Designed to operate reliably under extreme thermal stress, high-humidity conditions, persistent mechanical vibration, and intense electromagnetic interference, the CAI10 delivers the signal integrity and measurement precision that mission-critical automation demands. Whether installed in a sealed control cabinet on an offshore oil platform, a dusty cement plant, or a high-cycle automotive assembly line, this module maintains stable 4–20 mA and 0–10 V analog signal acquisition without drift or data corruption.

Industrial buyers sourcing the CAI10 as a replacement part or system expansion component will find it fully compatible with the AC500 CPU family — including the PM554, PM564, PM573, PM583, and PM595 processors — as well as the S500 I/O bus infrastructure. Its plug-and-play integration with the TB521 and TB541 terminal base units eliminates rewiring complexity during field replacement, reducing mean time to repair (MTTR) and minimizing production downtime in continuous-process environments.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the CAI10 rarely operates in isolation. It functions as a precision sensing front-end within a broader system of protection, control, and communication layers. On the same S500 I/O bus, the ABB CAO10 analog output module works in tandem with the CAI10 to close control loops for flow, pressure, and temperature regulation — a pairing commonly found in PID-controlled process lines. For discrete safety interlocking, the ABB CDI12DC digital input module and ABB CDO16DC digital output module share the same terminal base infrastructure, allowing mixed analog-digital I/O expansion within a single control cabinet without additional bus couplers.

When the application demands functional safety compliance, the CAI10 is often deployed alongside the ABB AC500-S Safety PLC platform, which provides SIL 2/3-rated safety logic execution. The AC500-S integrates seamlessly with standard AC500 I/O modules, enabling a unified hardware architecture that satisfies both standard control and IEC 61508 safety requirements. For power conditioning and surge protection within the same cabinet, the ABB CP-E 24/5.0 SMPS industrial power supply delivers stable 24 VDC to the I/O bus, with built-in overload and short-circuit protection that shields sensitive analog input circuitry from transient voltage events.

Communication-intensive installations benefit from pairing the CAI10 with the ABB CI590-CS31-HA communication interface module, which extends the S500 I/O bus over CS31 fieldbus to remote I/O stations — a topology widely used in distributed water treatment and power substation automation. For installations requiring PROFIBUS-DP connectivity, the ABB CI501-PNIO PROFINET adapter enables the AC500 system to participate in high-speed Ethernet-based control networks alongside third-party SCADA and DCS platforms. Terminal connectivity is managed through the ABB TB541 terminal base, which provides secure, vibration-resistant screw-clamp field wiring terminations rated for continuous industrial service.

Application in Critical Infrastructure

The ABB CAI10 has established a strong track record in the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities, it monitors wellhead pressure transmitters, flow meters, and temperature sensors across hazardous-area control panels, where signal accuracy directly influences safety shutdown system (SIS) response. In power generation — including coal-fired, gas turbine, and hydroelectric plants — the CAI10 acquires analog feedback from turbine speed sensors, generator excitation systems, and cooling water flow instrumentation, feeding real-time data to AC500 CPUs managing load dispatch and protection relay coordination.

In mining and mineral processing, where conveyor systems, crushers, and flotation cells operate under extreme dust loading and mechanical shock, the CAI10’s robust construction and wide operating temperature range ensure uninterrupted signal acquisition even when ambient conditions exceed the tolerances of standard commercial-grade I/O. Water and wastewater treatment plants rely on the CAI10 for continuous monitoring of pH, dissolved oxygen, turbidity, and pump discharge pressure — parameters that require high-resolution analog measurement to maintain regulatory compliance and process efficiency. In metallurgical and steel production environments, where radiated heat, electromagnetic noise from arc furnaces, and vibration from rolling mills challenge every electronic component, the CAI10’s IEC 61000-4 EMC immunity and shock-rated mechanical design provide the resilience that keeps production lines running without unplanned stoppages.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the ABB CAI10?
Every ABB CAI10 module shipped by TOPNLMS carries a 12-month warranty from the date of delivery. If the module exhibits any manufacturing defect or functional failure under normal operating conditions within this period, we provide replacement or full refund support. Our warranty process is straightforward — contact [email protected] with your order reference and a brief fault description, and our technical team will respond within one business day.

Q2: How is each CAI10 unit tested before shipment?
All modules undergo a multi-point pre-shipment inspection that includes visual examination for physical damage, power-on functional verification, and channel-level analog signal testing across the full input range (0–20 mA, 4–20 mA, 0–10 V). Modules that fail any test point are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the CAI10 compatible with my existing AC500 or S500 I/O installation?
Yes. The CAI10 is fully compatible with all AC500 CPU generations (PM554 through PM595) and integrates directly onto the S500 I/O bus via the TB521 or TB541 terminal base. No firmware upgrade or bus reconfiguration is required for standard replacement. For installations using older AC500 V2 firmware, we recommend confirming the CPU firmware version against ABB’s compatibility matrix — our technical team can assist with this verification at no charge.

Q4: Can TOPNLMS support long-term or repeat procurement of the CAI10?
Yes. TOPNLMS maintains dedicated stock of high-demand ABB AC500 and S500 I/O series modules, including the CAI10, to support MRO (maintenance, repair, and operations) procurement programs. We can provide scheduled delivery agreements, advance stock reservation, and consolidated shipments for multi-site industrial customers. For volume pricing and supply continuity arrangements, contact our sales team directly at [email protected] or call +86 18359293191.
