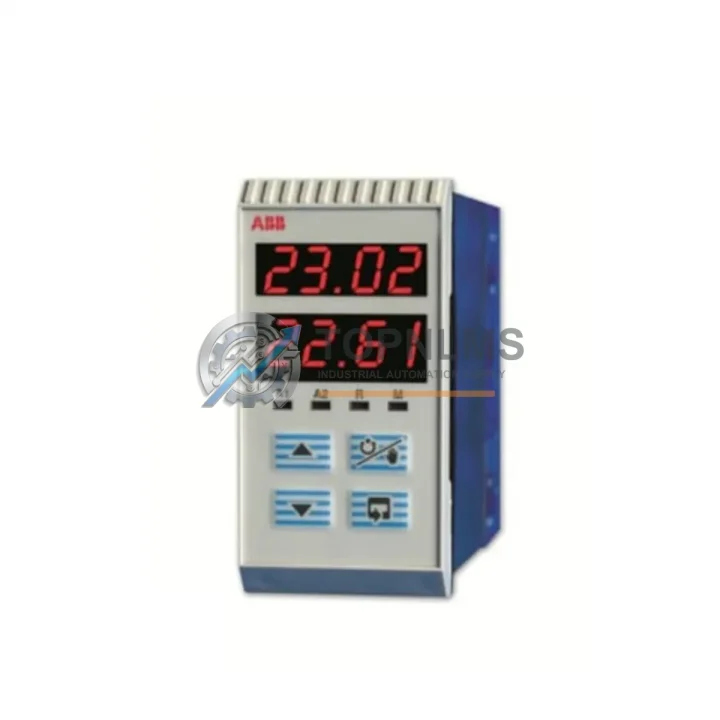

ABB C100/0200/STD Replacement for Commander 100 Series

Product Overview

ABB C100/0200/STD Replacement for Commander 100 Series: Smooth Transition & Legacy System Upgrade

The ABB C100/0200/STD is a single-loop PID process controller from ABB’s Commander 100 Series, widely deployed across chemical processing, water treatment, HVAC, and light manufacturing facilities since the 1990s. As original units reach end-of-service life and spare parts become increasingly scarce, plant engineers and procurement teams face a critical decision: source a verified replacement unit or undertake a full control system migration. TOPNLMS supplies tested, ready-to-ship C100/0200/STD units that allow facilities to restore loop control with zero re-engineering — preserving existing wiring, setpoint configurations, and operator familiarity while eliminating unplanned downtime.

The Commander 100 platform was engineered for single-loop PID regulation with a compact 1/4 DIN panel-mount form factor. The C100/0200/STD variant supports standard process input ranges (4–20 mA / 0–10 V), dual relay outputs, and front-panel operator interface. Its straightforward parameter structure makes it a preferred choice for facilities that require reliable, low-maintenance loop control without the overhead of a full DCS or PLC-based architecture. When the original unit fails or is discontinued, a direct replacement from the same Commander 100 family is the fastest path to restoring production.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful C100/0200/STD replacement rarely involves the controller alone. In most retrofit scenarios, the surrounding control cabinet infrastructure must also be assessed to ensure the new unit integrates cleanly with the existing system architecture. During the migration process, engineers commonly address the following associated components:

The ABB Commander 150 (C150) and Commander 200 (C200) series controllers are frequently evaluated as upgrade paths when a facility requires expanded loop capacity or enhanced communication options beyond what the C100/0200/STD provides. For sites already running a mix of Commander 100 and Commander 150 units on the same RS-485 Modbus RTU network segment, maintaining a consistent communication protocol across all loop controllers is essential for SCADA integration and data historian continuity.

The terminal wiring on the C100/0200/STD connects directly to field transmitters — typically 4–20 mA two-wire or three-wire sensors. When replacing the controller, it is advisable to inspect the ABB ACS355 or ACS580 variable frequency drive analog reference signal wiring if the PID output is used to regulate a motor-driven pump or fan. Ensuring the analog output scaling (0–10 V or 4–20 mA) is correctly matched between the replacement controller and the downstream drive prevents setpoint drift after commissioning.

For facilities that use an ABB AC500 PLC or AC31 series controller as the supervisory layer above the Commander 100 loop controllers, the Modbus RTU communication module — such as the CM572-DP or a dedicated RS-485 communication card — must be verified for address mapping compatibility. The C100/0200/STD uses a fixed Modbus register map; confirming that the PLC’s polling configuration matches the replacement unit’s register layout eliminates communication faults during startup.

In control cabinets where multiple Commander 100 units are mounted side by side, the 24 V DC auxiliary power supply rail (commonly an ABB CP-E or equivalent DIN-rail PSU) should be load-checked before adding a replacement unit. If the existing power supply is operating near capacity, a supplementary ABB CP-E 24/2.5 or CP-E 24/5.0 power module may be required to maintain stable supply voltage across all panel instruments.

Signal conditioning is another consideration in older installations. Where thermocouple or RTD inputs feed the C100/0200/STD via a signal isolator or transmitter head, the ABB 266 series smart transmitter or a compatible HART-to-4–20 mA signal conditioner should be verified for output range and loop resistance compatibility with the replacement controller’s input impedance specifications.

For facilities transitioning from the Commander 100 platform to a more modern architecture, the ABB Freelance DCS or System 800xA distributed control system provides a structured migration path. In such projects, the C100/0200/STD is often retained as a standalone loop controller during a phased cutover, with the Freelance AC800F controller assuming supervisory control while individual loops are migrated one at a time — minimizing production risk and eliminating the need for a full plant shutdown.

Programming and configuration tools are equally important. The ABB DriveWindow or Drive Composer software is used for drive-side parameter backup before any controller replacement, while the Commander 100’s front-panel configuration interface handles PID tuning parameter entry directly — no proprietary programming cable or software license is required for the C100/0200/STD itself, which simplifies on-site commissioning significantly.

Retrofit Guidance FAQ

Q: Does the replacement C100/0200/STD require any rewiring?
A: No. The replacement unit uses the same terminal block layout and pin assignments as the original. Existing field wiring — including sensor inputs, relay outputs, and power connections — can be transferred directly without modification. Label and photograph all connections before removal as a standard commissioning practice.

Q: Will my existing PID tuning parameters transfer to the replacement unit?
A: The C100/0200/STD stores PID parameters (proportional band, integral time, derivative time, setpoint) in non-volatile memory. These must be re-entered manually on the replacement unit using the front-panel keypad. Document all current parameter values before removing the failed unit. TOPNLMS recommends recording a full parameter list as part of your pre-replacement checklist.

Q: Is the Modbus RTU communication address preserved?
A: The Modbus device address is a configurable parameter on the C100/0200/STD. Set the replacement unit to the same address as the original before connecting it to the RS-485 network. Verify baud rate, parity, and stop bit settings match the network configuration to avoid communication conflicts with the SCADA host or PLC master.

Q: Will the replacement unit fit the existing panel cutout?
A: Yes. The C100/0200/STD uses a standard 1/4 DIN (92 × 92 mm) panel cutout. The replacement unit has identical physical dimensions and mounting clip arrangement, so no panel modification is required. Verify that the panel depth behind the cutout accommodates the unit’s body length before installation.

Q: Can the replacement unit operate on the same power supply as the original?
A: Yes. The C100/0200/STD accepts 85–264 V AC universal input, making it compatible with both 110 V and 220 V supply rails without any transformer or voltage converter. Confirm the existing supply circuit breaker rating is appropriate for the load.

Q: How long does commissioning typically take after installation?
A: For a direct drop-in replacement with documented parameters, on-site commissioning typically takes 30–90 minutes per loop, including parameter entry, setpoint verification, and a short auto-tune cycle if required. No specialist programming tools or software are needed.

Warranty Assurance

Every ABB C100/0200/STD unit supplied by TOPNLMS is covered by a 12-month warranty from the date of dispatch. Prior to shipment, each unit undergoes a functional verification check covering power-on self-test, input signal response, output relay operation, and front-panel display integrity. Units that do not pass inspection are not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution confirmation. Warranty claims are processed via email at [email protected] with order reference and fault description.

Stock is maintained in Xiamen, China, with standard dispatch within 1–3 business days of order confirmation. Express international shipping options are available for urgent replacement requirements. All units are shipped with anti-static packaging, individual serial number documentation, and a dispatch inspection record.

For procurement teams requiring formal quotation, lead time confirmation, or volume pricing for multiple Commander 100 replacement units, contact our industrial sales team directly.
