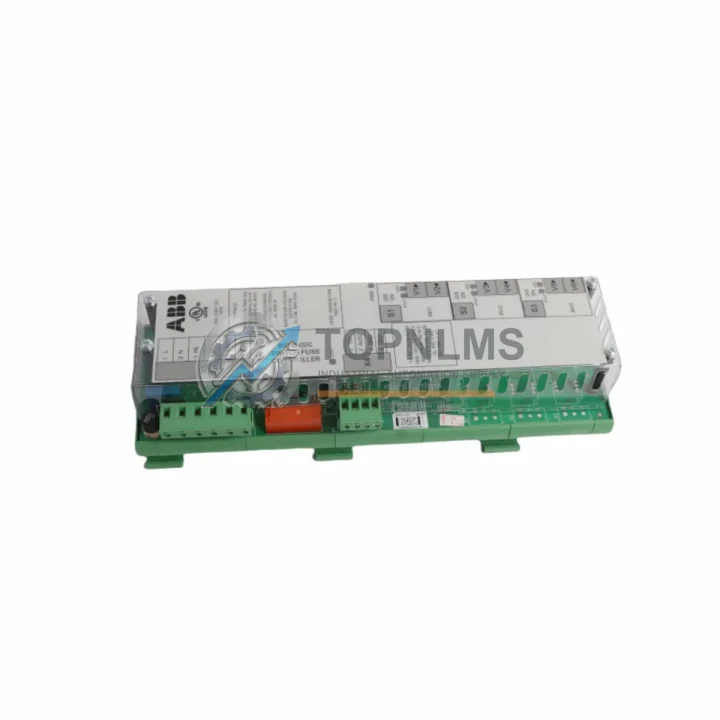

ABB BSFC-02C 3AXD50000011461 Replacement for ACS880

Product Overview

ABB BSFC-02C 3AXD50000011461 Replacement for ACS880: Smooth Transition from Legacy Brake Control Systems

When your existing ABB ACS880 drive system requires a brake sequence control panel replacement or upgrade, the ABB BSFC-02C (Part No. 3AXD50000011461) delivers a fully compatible, drop-in solution that eliminates the need for rewiring, reprogramming, or mechanical rework. Designed specifically for the ACS880 multi-drive and single-drive platform, this brake sequence control panel manages the precise timing and sequencing of mechanical brake engagement and release — a critical function in crane, hoist, elevator, and heavy-load conveyor applications where uncontrolled motion during power transitions is unacceptable.

Many facilities operating legacy ABB ACS800 or ACS600 drive systems are now migrating to the ACS880 platform to take advantage of its Direct Torque Control (DTC) architecture, improved energy efficiency, and expanded fieldbus support. During such migrations, the brake control function must be re-evaluated. The BSFC-02C integrates directly into the ACS880 control board slot, communicating via the drive’s internal DDCS or FCAN protocol layer, and does not require an external PLC or relay logic panel to manage brake sequencing. This significantly reduces panel space requirements and simplifies the control cabinet layout compared to older external brake relay modules used with ACS800 systems.

For engineers replacing a failed or end-of-life brake control board in an existing ACS880 installation, the BSFC-02C is a direct hardware replacement. The connector pinout, mounting footprint, and firmware interface are consistent across ACS880 drive generations, meaning the replacement can be completed during a planned maintenance window without modifying the existing wiring harness or drive parameter set. Field technicians typically complete the swap in under 30 minutes, restoring full brake sequencing functionality with minimal downtime impact.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete ACS880 brake control upgrade or migration rarely involves the BSFC-02C in isolation. In practice, the brake sequence control panel works in conjunction with several other ACS880 platform components that may also require replacement or upgrade during the same maintenance window.

The ACS880 RDCO-02C DDCS communication module is frequently replaced alongside the BSFC-02C when migrating from an ACS800 system, as it provides the fiber-optic DDCS link between the drive and the master controller or PLC. If the existing installation uses a PROFIBUS DP fieldbus adapter (FPBA-01) or an EtherNet/IP adapter (FENA-21), these option modules must be verified for ACS880 slot compatibility before the brake control upgrade is finalized. In multi-drive cabinet configurations, the ACS880-104 inverter module and its associated BCU-12 or BCU-22 brake chopper unit are often inspected and replaced as part of the same project scope, since brake chopper function and brake sequence control are closely coupled in high-inertia load applications.

On the I/O side, the AIMA-01 analog I/O extension module and DIIO-01 digital I/O extension module are commonly added during ACS880 upgrades to provide additional feedback signals from brake position sensors or thermal monitoring circuits. For installations where the control cabinet also houses an ABB CP600 or CP400 series HMI panel, the brake status and sequencing parameters can be mapped to the HMI display via the drive’s Modbus RTU or EtherNet/IP interface without additional hardware. Power supply integrity is equally important: the ABB CP-E 24VDC SMPS power supply module should be verified to meet the current draw requirements of the BSFC-02C and any co-installed option modules. Finally, for installations requiring galvanic isolation between the brake control signals and the main drive I/O, a Phoenix Contact or Weidmüller signal isolator module is a standard addition to the terminal block assembly.

Retrofit Guidance FAQ

Q: Can the BSFC-02C be installed without modifying the existing ACS880 wiring harness?
A: Yes. The BSFC-02C plugs directly into the designated option slot on the ACS880 control unit. No changes to the main power wiring or existing I/O terminal connections are required for a like-for-like replacement within the ACS880 platform.

Q: Is reprogramming the drive required after installing the BSFC-02C?
A: For a direct replacement of a failed BSFC-02C, the existing drive parameter set (backed up via Drive Composer or the ACS880 control panel) can be restored after installation. No new programming is required. For new installations or platform migrations from ACS800, brake sequencing parameters (groups 44 and 76 in ACS880 firmware) must be configured to match the mechanical brake specifications.

Q: What communication protocols does the BSFC-02C support?
A: The BSFC-02C communicates via the ACS880 drive’s internal slot interface. External fieldbus communication (PROFIBUS, EtherNet/IP, Modbus RTU, PROFINET) is handled by the drive’s fieldbus adapter module and is fully compatible with BSFC-02C operation. No protocol conflicts have been reported in standard ACS880 configurations.

Q: Will the BSFC-02C fit in the same physical space as the module it replaces?
A: Yes, for ACS880 platform replacements. The BSFC-02C is designed to the ACS880 option module form factor. If migrating from an ACS800 system with an external brake relay panel, the BSFC-02C eliminates the need for that external panel entirely, freeing up control cabinet space.

Q: What is the lead time and shipping arrangement?
A: Units are dispatched from our Xiamen warehouse. Standard international shipping via DHL or FedEx Express typically delivers within 3–7 business days to most destinations. Express same-day dispatch is available for orders confirmed before 14:00 CST. All units are tested prior to shipment and shipped with full documentation.

Warranty Assurance

Every ABB BSFC-02C 3AXD50000011461 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, communication interface check, and visual inspection for physical damage or counterfeit indicators. Our quality control process is aligned with the sourcing standards expected by industrial end-users and system integrators operating in critical automation environments.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours on business days. We maintain stock of the BSFC-02C and related ACS880 option modules to support rapid replacement dispatch without extended lead times. Procurement teams can request a formal quotation, proforma invoice, or certificate of conformity as required for their purchasing process.

For volume orders, system integrators, and OEM procurement, preferential pricing and priority allocation are available. Contact our technical sales team to discuss project-specific requirements, compatibility verification, or to arrange a pre-shipment inspection.
