ABB BGAD-12C Replacement for DCS Drive Series: Smooth Transition & Legacy System Upgrade

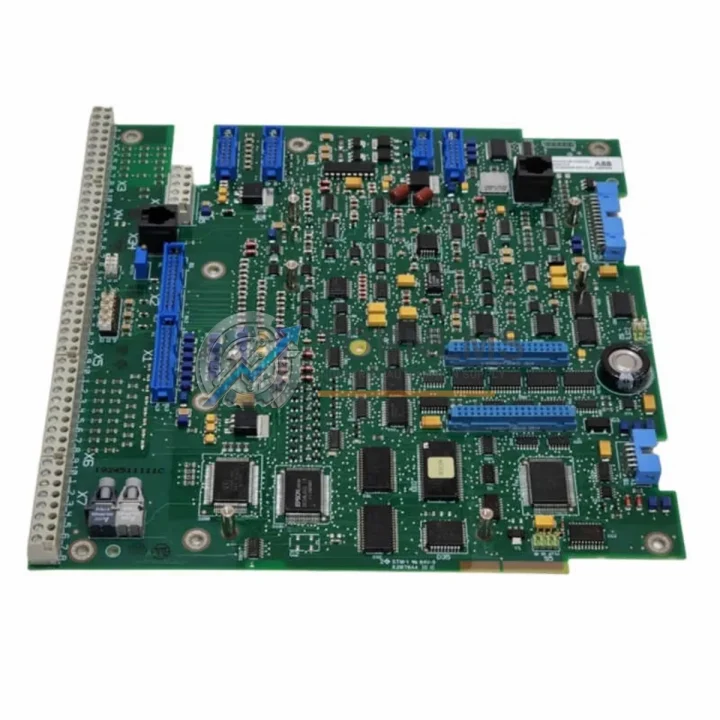

When your ABB DCS Drive system reaches end-of-life or a critical excitation trigger board fails, unplanned downtime can cascade across your entire production line. The ABB BGAD-12C excitation trigger board is a precision-engineered component used in ABB’s DCS series DC drive platforms, responsible for generating and synchronizing the firing pulses that control thyristor bridges in DC motor excitation circuits. This page is your complete resource for sourcing a verified BGAD-12C replacement or planning a structured upgrade migration from legacy ABB DCS drive hardware to a modern, supportable control architecture.

Whether you are maintaining an aging paper mill, steel rolling line, crane drive system, or extruder application, the BGAD-12C sits at the heart of your excitation control loop. A failed or degraded trigger board manifests as erratic motor speed, loss of field current regulation, or complete drive trip — all of which demand fast, accurate replacement with a board that matches the original firing angle timing, gate pulse amplitude, and synchronization logic.

At TOPNLMS, we stock verified BGAD-12C boards sourced from decommissioned ABB DCS drive cabinets and authorized surplus channels. Each unit undergoes incoming inspection, functional bench testing on a live DCS drive test rig, and is shipped with full documentation. Our inventory supports both direct drop-in replacement and assisted migration projects where the BGAD-12C is being retired as part of a broader drive modernization program.

Compatibility Comparison Table

Seamless Upgrade Solutions

A BGAD-12C replacement rarely happens in isolation. In most DCS drive modernization projects, the trigger board failure is a signal that adjacent components are approaching end-of-life. During the same maintenance window, engineers typically audit the SDCS-POW-1 or SDCS-POW-4 power supply board, which feeds 24 VDC to the control electronics — a degraded power supply can cause intermittent trigger board faults that mimic a BGAD-12C failure. Similarly, the SDCS-CON-2 or SDCS-CON-4 main control board should be inspected, as it generates the speed reference and current loop signals that the trigger board acts upon.

For drives communicating over PROFIBUS-DP or Modbus RTU to a supervisory PLC — commonly an ABB AC500 or a legacy Siemens S5-115U — the fieldbus adapter module (such as the RDCO-02 DDCS-to-PROFIBUS gateway) should be verified for firmware compatibility after any control board swap. In multi-drive systems where the DCS600 is synchronized with an upstream ABB ACS800 AC drive via a DDCS fiber link, the BGAD-12C replacement must be followed by a re-commissioning of the speed master/follower ratio to prevent torque imbalance at startup.

Cabinet-level upgrades often include replacing the SDCS-IOB-3 I/O extension board for analog tachometer and encoder feedback, and the NBRA-653 or NBRA-656 brake chopper module if regenerative braking is part of the application. For customers migrating from the DCS500 to the DCS800 platform entirely, the SDCS-COM-8 communication module and a new DCS800-S01 or DCS800-S02 drive unit are the primary hardware targets, with the BGAD-12C becoming obsolete in the new architecture. We stock all of these components and can supply them as a coordinated kit to minimize your procurement lead time.

Retrofit Guidance FAQ

Q: Can I install the BGAD-12C without recalibrating the firing angle?
A: In most cases, yes. The BGAD-12C is a direct plug-in replacement and the firing angle offset is stored in the SDCS-CON control board’s parameter set, not on the trigger board itself. However, if the drive has been running with a degraded board for an extended period, a full autotune sequence is recommended after replacement to restore optimal commutation margin.

Q: Is the BGAD-12C compatible with both 50 Hz and 60 Hz supply networks?
A: Yes. The synchronization circuit on the BGAD-12C locks to the incoming AC supply frequency automatically. No hardware jumper or parameter change is required when moving between 50 Hz and 60 Hz installations.

Q: What ESD precautions are required during installation?
A: The BGAD-12C contains CMOS-sensitive components. Always use a grounded wrist strap and anti-static mat. De-energize the drive fully, wait for the DC bus capacitors to discharge (minimum 5 minutes after power-off), and handle the board by its edges only.

Q: Can the BGAD-12C be used in a 12-pulse drive configuration?
A: Yes, provided the drive is configured for 12-pulse operation via the SDCS-CON parameter set and the second thyristor bridge is correctly wired. The BGAD-12C generates the interleaved firing pulses for both bridges when the drive is set to 12-pulse mode.

Q: What if my DCS drive communicates via DeviceNet or EtherNet/IP instead of PROFIBUS?
A: The BGAD-12C replacement does not affect the fieldbus adapter. Your existing RDNA-01 (DeviceNet) or RETA-01 (EtherNet/IP) adapter module remains in service. Only the internal trigger board is swapped; the communication stack is unaffected.

Q: How do I verify the replacement board is functioning correctly before restarting the motor?
A: After installation, perform a no-load test with the motor shaft decoupled if possible. Monitor the gate pulse outputs on the BGAD-12C test points using an oscilloscope to confirm correct pulse width and phase sequence before applying full field current.

Warranty Assurance

Every ABB BGAD-12C shipped by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Our pre-shipment process includes visual inspection for PCB damage, component-level checks on the gate pulse driver ICs, and a functional test on a live ABB DCS drive test bench to confirm correct firing pulse output across the full firing angle range (0°–150°).

If a board fails within the warranty period under normal operating conditions, we provide a free replacement unit shipped via express courier with priority handling. Our technical support team is available to assist with installation verification, parameter backup, and post-swap commissioning guidance. For customers running critical 24/7 processes — such as continuous casting lines, paper machine drives, or mine hoist systems — we recommend purchasing a spare BGAD-12C alongside your primary replacement to eliminate future single-point-of-failure risk.

Procurement documentation including test reports, packing lists, and commercial invoices is provided with every shipment. We support DDP, DAP, and EXW Incoterms and can arrange export customs clearance from Xiamen, China. Typical dispatch time is 1–3 business days after payment confirmation.
