ABB BC820K01 Replacement Solution for Symphony Plus AC 800M

Product Overview

ABB BC820K01 Replacement Solution for Symphony Plus AC 800M: Seamless Migration & Smooth Transition

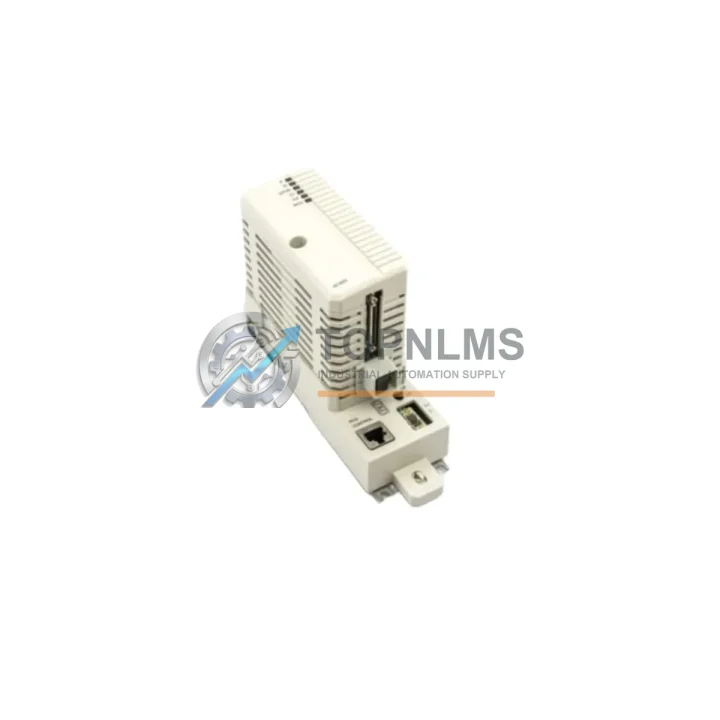

The ABB BC820K01 (catalog reference 3BSE071501R1) is the CEX-Bus Interconnection Unit designed for the Symphony Plus AC 800M Distributed Control System platform. As legacy installations age and original units approach end-of-life or become increasingly difficult to source, plant engineers and procurement teams face mounting pressure to secure a reliable, drop-in replacement that preserves existing wiring infrastructure, communication topology, and control logic without triggering a full system overhaul.

TOPNLMS maintains verified stock of the BC820K01 / 3BSE071501R1, fully tested and ready for immediate dispatch. Whether you are managing a planned maintenance window, responding to an unplanned failure, or executing a phased modernization of an older AC 800M rack assembly, this unit delivers the interconnection performance your Symphony Plus architecture demands — with zero compromise on signal integrity or bus timing.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful BC820K01 migration rarely involves a single module in isolation. In practice, field engineers replacing or upgrading the CEX-Bus Interconnection Unit will simultaneously audit adjacent components to ensure the entire AC 800M node operates reliably post-swap. The following components are commonly evaluated or replaced as part of the same maintenance event:

The PM866K01 and PM864A AC 800M Controller Modules are the processing cores that communicate directly through the CEX-Bus managed by the BC820K01. Verifying firmware revision compatibility between the controller and the interconnection unit is a standard pre-commissioning step. If the controller module is also approaching end-of-life, sourcing both units simultaneously reduces total downtime.

The TB820V2 and TB825 Termination Backplanes provide the physical rack infrastructure into which the BC820K01 slots. Inspecting backplane connector integrity during a module swap is best practice — a worn backplane can cause intermittent CEX-Bus faults that are difficult to diagnose after reassembly.

On the I/O side, AI810 Analog Input Modules and DO810 Digital Output Modules connected to the same rack share the CEX-Bus bandwidth managed by the BC820K01. Confirming that these I/O modules are operating within their rated scan cycle parameters ensures the upgraded interconnection unit is not immediately stressed by legacy I/O timing mismatches.

For sites running PROFIBUS DP fieldbus segments, the CI854AK01 PROFIBUS DP Communication Interface Module is often co-located in the same AC 800M rack. Its interaction with the CEX-Bus Interconnection Unit should be validated during commissioning, particularly if the PROFIBUS segment addresses field instruments such as Endress+Hauser flow transmitters or Siemens SIPART positioners.

Power integrity is equally critical. The SD821 and SD822 Power Supply Modules feeding the AC 800M rack should be load-tested after the BC820K01 replacement to confirm that inrush current during module initialization does not cause transient undervoltage events on the 24 VDC backplane rail.

Finally, for sites that require on-site programming or diagnostic access during the retrofit, an ABB TK212A or compatible USB-to-serial programming cable enables direct connection to the AC 800M controller for project download verification and online monitoring via ABB Control Builder M — without requiring network access to the DCS engineering station.

Retrofit Guidance FAQ

Q: Do I need to rewire any field cables when replacing the BC820K01?
A: No. The BC820K01 is a backplane-mounted CEX-Bus Interconnection Unit with no direct field wiring connections. All field I/O wiring terminates at the I/O module termination units or marshalling cabinets and is unaffected by this replacement.

Q: Will my existing AC 800M Control Builder M project need to be modified?
A: In the vast majority of cases, no project modification is required. The BC820K01 is transparent to the application layer. However, it is recommended to perform a full project download and online verification after replacement to confirm all hardware configuration references are intact.

Q: Is the BC820K01 compatible with both Harmony and Symphony Plus branding revisions of the AC 800M platform?
A: Yes. ABB rebranded the Symphony Plus line under the Harmony umbrella in later product generations, but the underlying AC 800M hardware architecture and CEX-Bus protocol remain backward compatible. The BC820K01 / 3BSE071501R1 operates correctly in both naming-era installations.

Q: Can the BC820K01 be replaced while the controller is powered (hot-swap)?
A: Hot-swap capability depends on your site’s safety operating procedures and the specific rack configuration. Consult your site SOP and the ABB AC 800M Hardware Configuration manual before attempting a live replacement. TOPNLMS recommends a planned maintenance window for first-time replacements.

Q: What communication protocols does the CEX-Bus support?
A: The CEX-Bus is ABB’s proprietary high-speed backplane communication bus used exclusively within the AC 800M rack. It is distinct from fieldbus protocols such as PROFIBUS DP, FOUNDATION Fieldbus, or Modbus TCP, which are handled by dedicated communication interface modules in the same rack.

Q: How do I verify the replacement unit is functioning correctly after installation?
A: After seating the BC820K01 in the rack, observe the module status LEDs. A solid green RUN indicator confirms normal CEX-Bus operation. Use ABB Control Builder M to perform an online hardware scan and verify that all I/O modules on the rack are recognized and reporting correctly.

Warranty Assurance

Every BC820K01 / 3BSE071501R1 unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point functional inspection including visual examination of connector pins and PCB condition, power-on self-test verification, and CEX-Bus communication handshake confirmation where test equipment permits.

Should a unit exhibit any defect in materials or workmanship within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Our after-sales response target is within 24 business hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize your operational impact.

For procurement teams requiring documentation, we provide a packing list, commercial invoice, and test report upon request. Export compliance documentation for cross-border shipments is prepared in accordance with applicable trade regulations. Bulk order pricing and consignment stock arrangements are available for MRO departments managing large AC 800M installed bases.

Contact our technical sales team to confirm stock availability, request a quotation, or discuss your specific migration requirements before placing an order.
