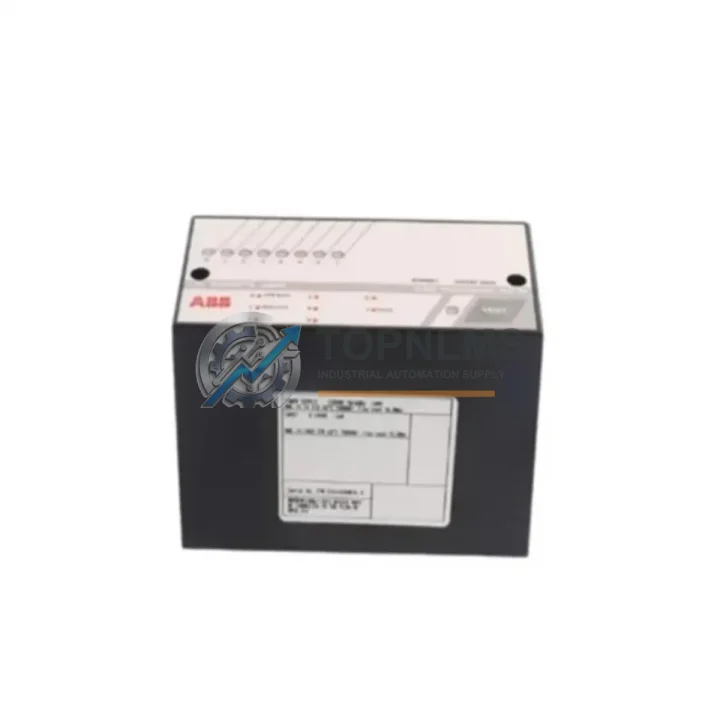

ABB AX645 3BHB001914R1 Replacement for AC800M DCS

Product Overview

ABB AX645 3BHB001914R1 Replacement for AC800M DCS: Seamless Migration & Smooth Transition

The ABB AX645 (part number 3BHB001914R1) is a high-density analog mixed I/O module designed for the ABB AC800M Distributed Control System platform. As legacy AC800M installations age and original ABB AX645 3BHB001914R1 units reach end-of-life or become increasingly difficult to source through standard distribution channels, plant engineers and procurement teams face mounting pressure to maintain system continuity without triggering a full DCS overhaul. TOPNLMS supplies tested, verified AX645 3BHB001914R1 modules that enable a smooth, low-risk transition — preserving your existing rack architecture, wiring infrastructure, and control logic while restoring full system redundancy.

Whether you are replacing a failed unit in an active production environment, building a critical spare inventory, or executing a phased modernization of an aging AC800M system, the AX645 3BHB001914R1 integrates directly into your existing S800 I/O station without requiring hardware redesign, re-engineering of marshalling cabinets, or reprogramming of your AC800M controller. The module retains full compatibility with the ABB CI854A and CI858 communication interfaces, ensuring that your PROFIBUS DP or MMS-based control network continues to operate without interruption.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AC800M analog I/O migration rarely involves a single module swap. In most retrofit and upgrade projects, the AX645 3BHB001914R1 is deployed alongside a broader set of system components that must be verified, replaced, or upgraded in parallel to ensure full system integrity.

On the communication side, the ABB CI854A PROFIBUS DP Interface Module and the CI858 MMS Communication Interface are the most common coupling points between the AC800M controller and the S800 I/O station. If your existing CI854A is running firmware that predates the AX645 module’s hardware revision, a firmware update or module replacement may be required before commissioning. Similarly, the ABB PM864A and PM866A AC800M Process Controllers — the central CPUs in most mid-to-large AC800M installations — should be verified for compatibility with the current S800 I/O configuration before the AX645 is inserted into the rack.

At the field termination level, the ABB TU810 and TU830 Terminal Units provide the physical wiring interface between field instruments and the AX645 module. These terminal units are designed for tool-free module extraction, meaning the AX645 can be hot-swapped in redundant configurations without disconnecting field wiring — a critical advantage in continuous process environments where planned downtime windows are measured in minutes, not hours.

For installations where the existing ABB TB820 or TB840 ModuleBus Modem is approaching end-of-life, replacing it concurrently with the AX645 3BHB001914R1 is strongly recommended. The TB820 and TB840 serve as the optical or electrical backbone of the S800 I/O station, and a degraded modem can introduce intermittent communication faults that are difficult to distinguish from module-level failures during post-replacement commissioning.

In control cabinet environments where signal integrity is a concern — particularly in installations with long cable runs or high electromagnetic interference — the addition of a signal isolator or loop-powered barrier between the AX645 analog inputs and field transmitters can significantly improve measurement stability. This is especially relevant when migrating from older analog I/O modules that used different input impedance specifications.

Finally, for engineers performing the migration using ABB’s Control Builder M (CBM) engineering software, ensuring that the hardware library and I/O module type library are updated to include the AX645 3BHB001914R1 hardware descriptor is a prerequisite for accurate online configuration and diagnostics. TOPNLMS can provide module documentation and hardware descriptor files upon request to support your engineering team’s commissioning workflow.

Retrofit Guidance FAQ

Q: Can the AX645 3BHB001914R1 be installed without modifying existing field wiring?
A: Yes. The AX645 uses the same TU810/TU830 terminal unit interface as predecessor analog modules in the S800 series. Field wiring connected to the terminal unit remains undisturbed during module replacement. Only the module itself is extracted and reinserted.

Q: Is reprogramming of the AC800M controller required after replacing the AX645?
A: In most cases, no. If the replacement module is installed in the same physical slot with the same I/O address configuration, the AC800M application running in Control Builder M will recognize the module automatically upon restart. A cold restart of the I/O station may be required in non-redundant configurations.

Q: What communication protocols does the AX645 support?
A: The AX645 communicates via the S800 ModuleBus backplane, which interfaces with the AC800M controller through PROFIBUS DP (via CI854A) or MMS over Ethernet (via CI858). No additional protocol configuration is required when replacing a like-for-like module.

Q: Will the AX645 fit in the existing S800 I/O station cabinet space?
A: Yes. The AX645 conforms to the standard S800 module form factor and occupies a single module slot in the S800 I/O station. No additional DIN rail space, cable duct modification, or cabinet redesign is required.

Q: How should the AX645 be configured after installation?
A: After physical installation, use ABB Control Builder M to perform an online hardware scan. The AX645 will appear in the I/O tree with its default channel configuration. Verify analog input/output ranges, signal types (4–20 mA, 0–10 V, RTD, thermocouple), and channel assignments against your existing process documentation before returning the loop to automatic control.

Q: What if my existing AC800M system uses an older firmware version?
A: TOPNLMS recommends verifying the AC800M firmware version against ABB’s compatibility matrix for the AX645 hardware revision. In most cases, firmware versions released after 2010 are fully compatible. Contact our technical team with your PM864A or PM866A firmware version for a pre-sale compatibility check.

Warranty Assurance

Every ABB AX645 3BHB001914R1 module shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Our pre-shipment testing protocol includes power-on functional verification, analog channel calibration check, communication interface test, and visual inspection for physical damage or counterfeit indicators. Modules that do not pass our outgoing quality inspection are quarantined and never shipped to customers.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our average response time for warranty inquiries is less than 24 hours on business days. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize the impact on your production schedule.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, commercial invoice, and certificate of origin for each shipment. We support EXW, FOB Xiamen, and CIF terms for international orders, with DHL Express, FedEx International Priority, and sea freight options available depending on order volume and urgency.

TOPNLMS maintains a standing inventory of high-demand AC800M components to support emergency replacement orders. Same-day dispatch is available for in-stock items ordered before 15:00 CST. For large-volume procurement or long-term supply agreements, contact our sales team to discuss pricing, lead times, and consignment stock arrangements.
