ABB ATMB-01C Replacement Upgrade for AC500 Series

Product Overview

ABB ATMB-01C Replacement Upgrade for AC500 Series: Smooth Migration from Legacy Bus Architectures

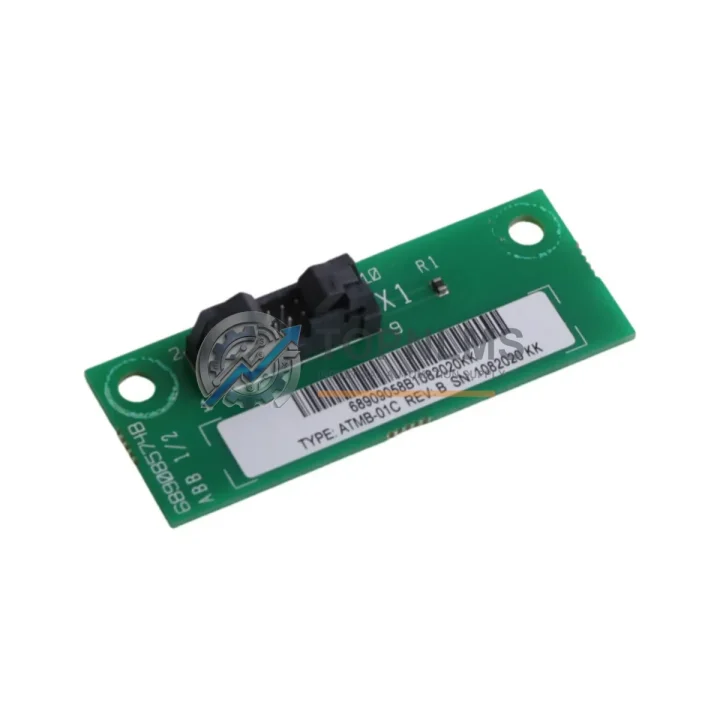

The ABB ATMB-01C is a terminal bus module designed for the AC500 PLC platform, providing the critical physical and electrical interface between the CPU module and I/O expansion modules mounted on the same DIN rail segment. When your existing ATMB-01C fails, reaches end-of-life, or your facility is migrating from an older AC500 configuration — such as systems originally built around the PM554, PM564, or PM583 CPU families — this replacement unit delivers a fully compatible, drop-in solution that minimizes engineering rework and unplanned downtime.

Industrial facilities running legacy AC500 architectures frequently encounter the ATMB-01C as a single point of failure in their terminal bus chain. Unlike rack-based PLCs where backplane replacement is straightforward, the AC500’s modular DIN rail design means the terminal bus module must be precisely matched to the installed CPU and I/O configuration. The ATMB-01C interfaces directly with digital and analog I/O modules such as the DC532, DA501, and AX521, passing both power and communication signals across the internal bus. Replacing a failed or aging ATMB-01C with a verified compatible unit restores full bus integrity without requiring reprogramming of the CPU or reconfiguration of the I/O map.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ATMB-01C replacement is rarely an isolated action. In most AC500 migration projects, the terminal bus module swap is part of a broader effort to restore or modernize the control segment. During commissioning, engineers typically verify the integrity of adjacent components in the same DIN rail assembly. The PM564 or PM583 CPU module should be inspected for firmware currency, and the TB521-ETH communication module — which handles Ethernet-based PROFINET or Modbus TCP connectivity — should be confirmed as operational before the new terminal bus module is energized.

On the I/O side, digital input modules such as the DC532 and digital output modules such as the DC522 connect directly through the ATMB-01C bus interface. If the bus module failure was caused by a surge or power event, it is prudent to test these I/O modules for latent damage before returning the segment to service. Similarly, analog I/O modules like the AX521 or DA501 should be verified for correct signal scaling after the bus is restored, as analog channel calibration data resides in the CPU — not the bus module — and will be preserved across the swap.

For facilities upgrading from older AC500 V1 hardware to AC500 V2 or AC500-eCo variants, the ATMB-01C replacement also provides an opportunity to evaluate whether the existing PS501 power supply module delivers adequate current margin for the expanded I/O count. In multi-segment installations, each DIN rail segment requires its own terminal bus module, so procurement teams often source ATMB-01C units in pairs or small batches to maintain a local spare. The SD card slot on compatible CPU modules can be used to back up the application program before the swap, ensuring rapid recovery if any unexpected configuration issue arises during the retrofit.

Retrofit Guidance FAQ

Q: Do I need to rewire any terminals when replacing the ATMB-01C?
No. The ATMB-01C connects to the CPU and I/O modules via the internal bus connectors on the module sides — there are no external field wiring terminals on the bus module itself. The swap is mechanical only: remove the old unit from the DIN rail, slide the new unit into position, and reconnect the adjacent modules.

Q: Will my PLC program be affected?
No. The application program resides in the CPU module (e.g., PM564 or PM583) and is not stored on the terminal bus module. Replacing the ATMB-01C does not require any changes in Automation Builder or CoDeSys-based programming environments. The I/O address map remains intact.

Q: Is the ATMB-01C compatible with both AC500 V1 and V2 hardware generations?
Yes. The ATMB-01C is compatible across AC500 V1 and V2 CPU and I/O families. If you are migrating from a V1 system to a V2 CPU, the terminal bus module itself does not change — only the CPU and potentially the communication module (e.g., upgrading from CM572-DP to TB521-ETH for PROFINET) would be updated.

Q: What communication protocols does the AC500 system support through this bus module?
The ATMB-01C handles the internal AC500 bus only. External fieldbus and Ethernet protocols — including PROFIBUS DP, PROFINET, Modbus TCP, EtherNet/IP, and CANopen — are managed by dedicated communication modules such as the CM572-DP or TB521-ETH, which mount separately on the CPU. The terminal bus module is transparent to these protocols.

Q: Can I install the ATMB-01C in a control cabinet with limited space?
Yes. The ATMB-01C uses the standard AC500 DIN rail snap-fit form factor and occupies the same physical width as the original unit. No additional clearance or mounting hardware is required. The module is designed for standard 35 mm DIN rail installation within industrial control cabinets.

Q: What should I check during commissioning after the swap?
After installing the replacement ATMB-01C, power up the segment and verify that the CPU recognizes all connected I/O modules (check the I/O configuration in Automation Builder or the CPU’s onboard diagnostics LED). Confirm that all digital and analog channels report correct values before returning the system to automatic mode. If any I/O module shows a bus error, reseat the module connectors and verify the DIN rail grounding continuity.

Warranty Assurance

Every ABB ATMB-01C unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including bus interface continuity checks and visual inspection for connector integrity. If a unit is found to be defective on arrival or fails within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement or refund in accordance with our standard after-sales policy.

We maintain stock of the ATMB-01C and related AC500 components at our Xiamen facility, enabling same-day or next-business-day dispatch for in-stock orders. International shipments are handled via DHL Express, FedEx International Priority, or equivalent carriers, with tracking provided at the time of dispatch. For urgent plant-down situations, please contact our sales team directly to confirm real-time stock availability and expedited shipping options.

Our procurement guarantee covers: verified part authenticity, pre-shipment functional testing, secure export packaging, full commercial invoice and packing list documentation for customs clearance, and dedicated after-sales support for the duration of the warranty period. We serve industrial buyers, MRO procurement teams, system integrators, and OEM service departments across Asia, Europe, the Middle East, and the Americas.
