ABB ARC093AE01 Replacement Solution for AC800M S800 I/O: Smooth Migration from Legacy Relay Output Systems

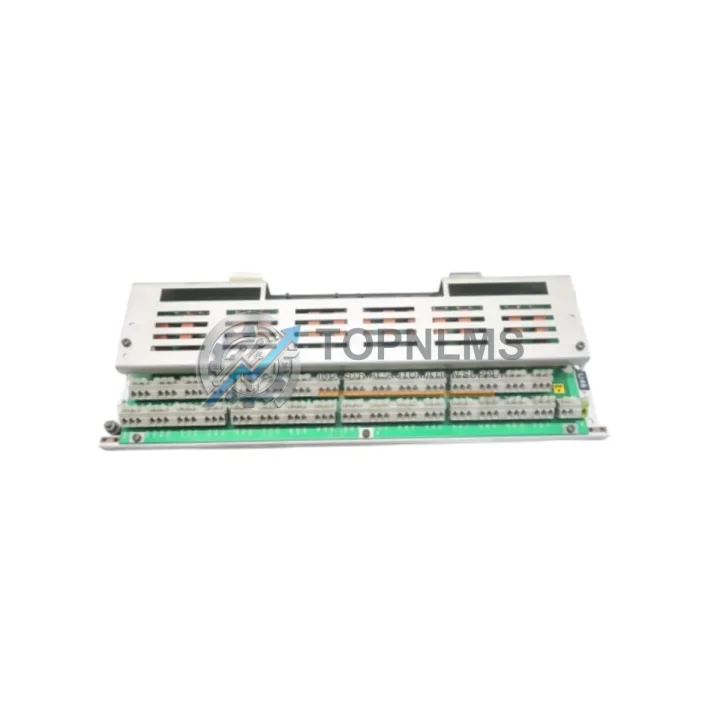

When your existing ABB AC800M distributed control system relies on aging or discontinued relay output cards, unplanned downtime is not an option. The ABB ARC093AE01 (HIEE300690R0001) Relay Output Card is a direct-fit replacement and upgrade solution engineered for seamless integration into the ABB AC800M controller platform and the broader S800 I/O system. Whether you are migrating from an end-of-life relay module, consolidating spare parts inventory, or executing a planned control system modernization, this card delivers the electrical compatibility, mechanical fit, and communication transparency your engineering team demands.

The ARC093AE01 provides 16 relay output channels with configurable contact ratings suitable for driving solenoid valves, motor starters, signal lamps, and interlock circuits in process industries including oil and gas, pulp and paper, power generation, and chemical manufacturing. Its plug-and-play form factor matches the original S800 I/O module footprint, meaning no panel re-drilling, no new DIN rail sections, and no changes to existing cable harnesses or terminal blocks.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AC800M relay output migration rarely involves a single module swap. In practice, field engineers replacing an ARC093AE01 are simultaneously auditing adjacent components to ensure the entire I/O node remains reliable. The TB820 and TB840 terminal units that mate with the ARC093AE01 should be inspected for contact oxidation and screw torque; if the terminal unit itself is degraded, replacing it alongside the relay card eliminates a second service call. Similarly, the ModuleBus optical fiber segments connecting the S800 I/O clusters to the AC800M controller backplane should be verified for signal integrity — a cracked fiber ferrule can cause intermittent I/O faults that are easily misdiagnosed as module failures.

For sites running multiple I/O clusters, the S800 I/O cluster power supply units (such as the SD821 or SD822 24 VDC supply modules) are common co-replacement items, particularly in installations that have operated continuously for more than a decade. Pairing a new ARC093AE01 with a refreshed power supply ensures the relay coil drive voltage remains within specification across all 16 channels under full load.

Engineers executing a broader AC800M modernization often find that the PM864 or PM866 controller modules are being upgraded in the same maintenance window. The ARC093AE01 is fully compatible with both legacy and current-generation AC800M processors, so the relay output card can be installed before or after the controller swap without requiring intermediate configuration steps. If the site is also migrating from an older AC800F or AC800PEC platform to AC800M, the S800 I/O system — including the ARC093AE01 — can be retained as-is, with only the controller backplane and communication adapter requiring change.

Communication infrastructure upgrades frequently accompany relay card replacements. The CI854 PROFIBUS DP communication interface and the CI856 AF100 interface module are commonly stocked alongside S800 relay cards for sites that are simultaneously migrating fieldbus segments. If your plant is transitioning from PROFIBUS to PROFINET or Ethernet/IP, the S800 I/O system supports this migration through updated communication adapters without requiring changes to the relay output wiring or the ARC093AE01 module itself.

For control cabinets where space is constrained, the compact form factor of the ARC093AE01 — identical to all S800 I/O modules — means it slots directly into existing S800 I/O module carriers (TB807 or TB811) without any panel modification. Sites that are consolidating multiple legacy relay panels into a single modernized cabinet will find that the S800 I/O density allows significant footprint reduction while maintaining full channel count. Pairing the ARC093AE01 with signal isolators or surge protection terminal blocks on the field wiring side is recommended for installations in electrically noisy environments such as motor control centers or variable frequency drive (VFD) panels.

Retrofit Guidance FAQ

Q: Can I replace the ARC093AE01 without modifying my existing Control Builder application?
A: In most cases, yes. Because the ARC093AE01 uses the same hardware type definition as the original relay output card in the S800 I/O library, the Control Builder M application does not require a full re-download. A module replacement followed by a warm restart of the I/O cluster is typically sufficient. However, if the original module was configured with a non-standard hardware type or if the firmware version of the AC800M controller is below a supported baseline, a partial application download may be required. Always verify the hardware type string in your Control Builder project before the swap.

Q: Is the wiring to the TB820 / TB840 terminal unit compatible?
A: Yes. The ARC093AE01 connects to the field wiring exclusively through the terminal unit, not through the module itself. As long as the terminal unit (TB820 or TB840) remains in place and the field cables are undisturbed, the relay output wiring requires no modification. This is one of the key advantages of the S800 I/O architecture for maintenance and replacement operations.

Q: What communication protocol does the ARC093AE01 use, and is it compatible with my existing ModuleBus segment?
A: The ARC093AE01 communicates exclusively via the S800 ModuleBus optical interface. It is fully compatible with all existing ModuleBus segments and does not require any protocol configuration. The module address is set by the physical position on the module carrier, consistent with all other S800 I/O modules.

Q: Can the ARC093AE01 be hot-swapped while the system is running?
A: Hot-swap is supported by the S800 I/O architecture, but relay output modules should be isolated from the field load before removal to prevent arc damage to the relay contacts and to ensure personnel safety. The recommended procedure is to de-energize the relay outputs via the application (force all outputs to OFF), physically isolate the terminal unit if possible, then remove and replace the module. The system will automatically re-initialize the new module within seconds of insertion.

Q: What if my cabinet has physical space constraints?
A: The ARC093AE01 has the same physical dimensions as all S800 I/O modules (approximately 30 mm wide). No additional panel space is required. If you are adding relay output capacity rather than replacing an existing module, additional module carrier slots on the TB807 or TB811 carrier can accommodate the new module without cabinet modification, provided carrier slots are available.

Q: How do I verify the module is functioning correctly after installation?
A: After insertion, the AC800M controller will automatically detect the module and report its status in the Control Builder hardware configuration view. The module’s LED indicators will show green for normal operation. Individual relay channel status can be verified through the application’s I/O diagnostic view. TOPNLMS recommends performing a full channel-by-channel output test using the Control Builder force function before returning the system to automatic operation.

Warranty Assurance

Every ABB ARC093AE01 (HIEE300690R0001) shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including relay coil continuity, contact resistance measurement, and ModuleBus interface initialization testing. Units that do not pass our outgoing quality inspection are not shipped.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit shipment within 3 business days of claim confirmation. Our technical support team is available to assist with installation questions, compatibility verification, and Control Builder configuration guidance throughout the warranty period and beyond.

We maintain bonded inventory of ARC093AE01 and related S800 I/O modules to support urgent replacement requirements. Express shipping options are available for critical plant situations where downtime cost justifies expedited logistics. All units are shipped in anti-static packaging with individual serial number tracking to support your maintenance records and audit requirements.

For volume procurement, long-term service agreements, or consignment stock arrangements, please contact our industrial automation sales team directly. We work with plant maintenance managers, MRO procurement teams, and system integrators across the process industries to ensure reliable spare parts availability for ABB AC800M and S800 I/O installations worldwide.
