ABB AO930S Ruggedized Analog Output Module for Harsh Environments

Product Overview

ABB AO930S Ruggedized Analog Output Module for Harsh Environments

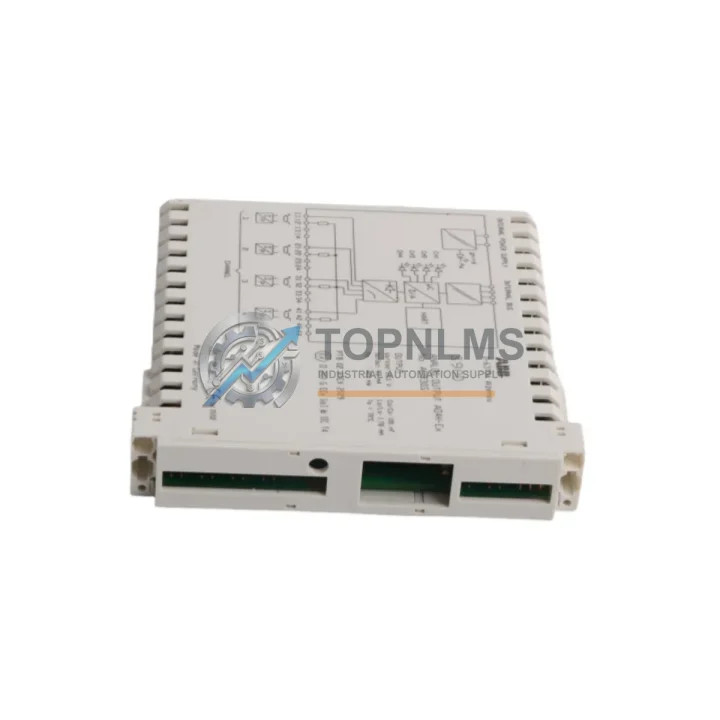

The ABB AO930S is an 8-channel analog output module engineered as part of ABB’s S900 I/O series — a distributed I/O platform purpose-built for demanding process automation environments. Designed to deliver precise, stable 4–20 mA or 0–10 V analog signals to field instruments and actuators, the AO930S maintains signal integrity even under extreme thermal cycling, high-humidity conditions, persistent mechanical vibration, and dense electromagnetic interference (EMI) typical of continuous heavy-industry operations.

In industries where process uptime is non-negotiable — oil and gas separation trains, chemical reactor control loops, power generation turbine management, and metallurgical furnace regulation — the AO930S provides the signal fidelity and environmental resilience that mission-critical control architectures demand. Its compact DIN-rail form factor integrates seamlessly into existing S900 I/O backplane assemblies, enabling rapid hot-swap replacement without full system shutdown, a critical advantage in 24/7 continuous production facilities.

The module’s galvanic isolation architecture protects both the control system and field wiring from ground loops and transient voltage spikes — a common failure mode in large industrial plants where cable runs span hundreds of meters across electrically noisy environments. Whether deployed alongside ABB’s AI930S analog input module, the DI930S digital input module, or the DO930S digital output module within the same S900 I/O rack, the AO930S maintains consistent bus communication and synchronized scan cycles, ensuring deterministic control response across the entire I/O tier.

For system integrators building or maintaining ABB System 800xA or AC800M controller-based DCS architectures, the AO930S is a validated, firmware-compatible replacement module. It interfaces directly with the S900 I/O bus coupler and supports PROFIBUS DP and FOUNDATION Fieldbus H1 communication protocols, making it interoperable with a wide range of third-party PLCs, safety controllers, and SCADA systems. In hybrid automation environments where ABB hardware coexists with Siemens SIMATIC S7 series PLCs or Rockwell ControlLogix platforms, the AO930S’s standard signal ranges ensure seamless cross-platform analog signal exchange.

Field engineers working in hazardous classified areas — Zone 1/Zone 2 gas atmospheres or Zone 21/Zone 22 dust environments — will find the AO930S’s intrinsic safety compatibility (when paired with appropriate ABB IS barriers or galvanic isolators) essential for compliant installations under IEC 60079 and ATEX directives. In mining extraction facilities, offshore platform topsides, and petrochemical storage terminals, this compliance is not optional — it is a fundamental safety requirement that the AO930S is engineered to support.

Procurement teams managing spare parts inventories for aging S900 I/O installations will recognize the AO930S as a long-lifecycle component with broad backward compatibility across multiple S900 hardware generations. Stocking a verified, tested AO930S unit eliminates the risk of extended mean-time-to-repair (MTTR) during unplanned outages. At TOPNLMS, every AO930S unit undergoes pre-shipment functional verification — analog output accuracy, channel isolation integrity, and bus communication handshake testing — before dispatch, ensuring the module arrives ready for immediate installation.

Rugged Specifications Table

Comprehensive Protection Solutions

The AO930S does not operate in isolation — it is one node in a tightly integrated S900 I/O architecture designed for system-level resilience. In a typical S900 rack assembly, the AO930S works in concert with the AI930S analog input module to form a complete closed-loop control tier, receiving process variable measurements and issuing corrective output commands to control valves, variable frequency drives (VFDs), and electro-pneumatic positioners.

Digital coordination is handled by the DI930S and DO930S modules, which manage discrete status signals from motor starters, pressure switches, and emergency shutdown (ESD) solenoids. The S900 bus coupler aggregates all I/O traffic and routes it upstream to the ABB AC800M controller via redundant PROFIBUS DP segments, ensuring that a single cable fault does not interrupt process visibility or control authority.

Power integrity for the entire S900 rack is maintained by ABB’s PS900 power supply module, which provides regulated 24 VDC with built-in overvoltage and short-circuit protection. In installations where power quality is a concern — common in facilities with large motor loads or diesel generator backup systems — the PS900’s active filtering capability prevents voltage transients from propagating into the I/O bus and corrupting analog output signals.

For installations requiring functional safety compliance under IEC 61511 or IEC 61508, the AO930S is frequently deployed alongside ABB’s safety relay modules and SIL-rated I/O modules within the same control cabinet. This layered approach — combining standard process control I/O with dedicated safety I/O — allows engineers to achieve SIL 2 or SIL 3 loop integrity without duplicating the entire I/O infrastructure. Communication modules such as the CI930S PROFIBUS communication interface further extend the S900 system’s connectivity to third-party safety PLCs and distributed control nodes across the plant network.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the AO930S controls the analog setpoints of pressure control valves, flow control loops, and compressor anti-surge systems. Its galvanic isolation and ATEX-compatible design make it suitable for installation in classified electrical areas adjacent to wellheads, separator vessels, and gas compression skids — environments where explosive atmosphere protection is a regulatory mandate, not a design preference.

In power generation plants — whether coal-fired, gas turbine, or hydroelectric — the AO930S manages analog outputs to turbine governor actuators, boiler feedwater control valves, and excitation system regulators. The module’s wide operating temperature range and vibration tolerance allow it to function reliably in turbine hall environments where ambient temperatures fluctuate significantly and structural vibration is continuous.

In mining and mineral processing operations, the AO930S drives analog signals to variable frequency drives controlling conveyor belt speeds, ball mill feed rates, and flotation cell agitator speeds. The high-dust, high-humidity conditions of underground and surface mining environments test the limits of standard I/O hardware — the S900 series’ sealed backplane design and conformal-coated PCBs provide the environmental protection necessary for sustained reliable operation.

Municipal and industrial water treatment facilities rely on the AO930S to regulate chemical dosing pump speeds, aeration blower outputs, and UV disinfection intensity levels. In these applications, the module’s precise 4–20 mA output accuracy directly impacts effluent quality compliance — making signal drift or module failure a regulatory and environmental risk, not merely an operational inconvenience.

In metallurgical and steel production environments — electric arc furnaces, continuous casting lines, and rolling mill drives — the AO930S operates in the presence of intense electromagnetic fields generated by high-current bus bars and induction heating systems. Its IEC 61000-4 EMC compliance ensures that analog output signals remain stable and accurate even in these electromagnetically hostile conditions, preserving the precision of temperature control and speed regulation loops that determine final product quality.
