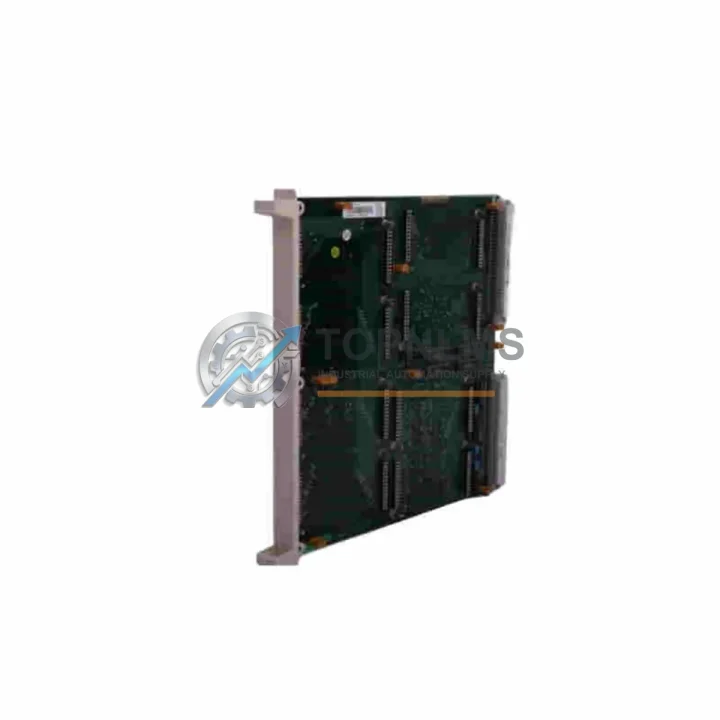

ABB AO890 Replacement/Upgrade Solution for S800 I/O

Product Overview

ABB AO890 Replacement/Upgrade Solution for S800 I/O: Seamless Migration from Legacy Analog Output Systems

The ABB AO890 is an 8-channel analog output module designed for the S800 I/O distributed I/O system, fully compatible with the AC 800M process automation controller platform. As industrial facilities worldwide accelerate the retirement of aging DCS and PLC infrastructure, the AO890 has become a critical replacement and upgrade component for engineers managing the transition from first- and second-generation S800 field stations to modernized control architectures.

Whether you are replacing a failed unit in an operating plant, building a spare-parts inventory ahead of a scheduled shutdown, or executing a phased migration from an older ABB Advant OCS or MOD 300 system to the current System 800xA platform, the AO890 delivers the signal fidelity, protocol compatibility, and physical form factor required for a smooth, low-risk cutover. Its 4–20 mA and 0–10 V output ranges cover the vast majority of legacy field device interfaces, eliminating the need for external signal converters in most retrofit scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AO890 migration rarely involves a single module swap. In practice, field engineers replacing analog output capacity in an AC 800M cabinet will simultaneously audit adjacent components to ensure system-wide reliability. The TB820 ModuleBus Modem and TB840A ModuleBus Modem are the optical communication backbones that connect S800 I/O clusters to the controller; if these units are approaching end-of-life, replacing them alongside the AO890 eliminates a common source of intermittent communication faults. Similarly, the AI810 and AI820 analog input modules share the same S800 baseplate architecture, and a comprehensive I/O refresh often includes both input and output channels in the same maintenance window.

On the controller side, sites running older PM851 or PM856 processor modules may find that upgrading to a PM860 or PM865 unlocks expanded I/O capacity and improved redundancy options, making the AO890 replacement a natural entry point for a broader platform modernization. The CI854A PROFIBUS DP Interface is frequently encountered in mixed-protocol plants where legacy PROFIBUS field devices must coexist with the S800 ModuleBus topology; ensuring this communication interface is current prevents protocol translation bottlenecks after the analog output upgrade.

Power integrity is equally critical. The SD821 and SD823 24 VDC power supply modules feed the S800 I/O baseplates, and degraded power supplies are a leading cause of spurious analog output errors that are often misdiagnosed as module failures. Replacing or verifying these units before commissioning the AO890 avoids repeat callouts. For installations where signal isolation is required between the DCS and field devices — particularly in hazardous-area or high-noise environments — inline signal isolators and loop-powered barriers compatible with 4–20 mA circuits should be verified or replaced as part of the same project scope.

Finally, sites executing a full migration from a legacy ABB Advant Controller 450 or MOD 300 architecture to System 800xA will need to address HMI continuity. The Panel 800 PP886 operator panel and compatible OPC DA/UA server configurations within 800xA ensure that process graphics referencing the AO890 output tags remain accurate after the hardware swap, preserving operator familiarity and reducing commissioning time.

Retrofit Guidance FAQ

Q: Can I replace the AO890 without rewiring field terminals?
A: Yes. The AO890 uses the same S800 baseplate and field terminal block arrangement as earlier S800 analog output modules. In a direct module swap, no field wiring changes are required. Verify terminal block model compatibility (TB811, TB815, or TB825) before installation.

Q: Do I need to update my Control Builder M project after swapping the module?
A: For a like-for-like replacement (same module type), no CBM project changes are required — existing hardware definitions and I/O tags remain valid. If upgrading from a different S800 AO variant, a minor hardware library update in CBM may be needed to reflect the new module descriptor, but existing signal tags and function block connections are preserved.

Q: Is the AO890 compatible with PROFIBUS DP or FOUNDATION Fieldbus?
A: The AO890 communicates via the S800 ModuleBus (optical) protocol to the AC 800M controller. It does not natively terminate PROFIBUS DP or FOUNDATION Fieldbus field devices. Those protocols are handled by dedicated communication interface modules (e.g., CI854A for PROFIBUS DP) mounted separately in the same or adjacent S800 cluster.

Q: What is the physical space requirement for installation?
A: The AO890 occupies one standard S800 module slot on a TB820 or TB840 baseplate. No additional cabinet space is required for a direct replacement. For new installations adding I/O capacity, one additional baseplate slot must be available.

Q: How do I verify the module is functioning correctly after installation?
A: After seating the module, confirm the green LED status indicator is active and that no fault codes appear in the AC 800M diagnostic log via Control Builder M or the System 800xA Asset Optimization view. Perform a loop check on each of the 8 output channels using a calibrated mA meter before returning the loop to automatic control.

Q: Can this module be used in a redundant I/O configuration?
A: S800 I/O supports redundant ModuleBus communication via dual TB840A modems. The AO890 itself is a non-redundant output module; for redundant analog output applications, two AO890 modules with appropriate function block logic in CBM are required.

Warranty Assurance

Every ABB AO890 module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional verification check including power-on self-test, channel output verification, and ModuleBus communication handshake testing. Units that do not pass outgoing inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched from our Xiamen warehouse with express international shipping to minimize plant downtime.

For procurement teams managing critical spare-parts inventories, TOPNLMS offers batch purchasing with documented test records, country-of-origin certificates, and packing lists suitable for customs clearance and internal audit requirements. All units are shipped in anti-static packaging with original or equivalent protective inserts.

We stock AO890 modules for immediate dispatch. Lead time for standard orders is 1–3 business days. For urgent plant-down situations, same-day dispatch is available upon request — contact us directly to confirm stock availability and arrange priority shipping.
