ABB AO845A 3BSE045584R1 Original Industrial Spare S800 Compatible: System Stability and Industrial Spare Parts Maintenance Value

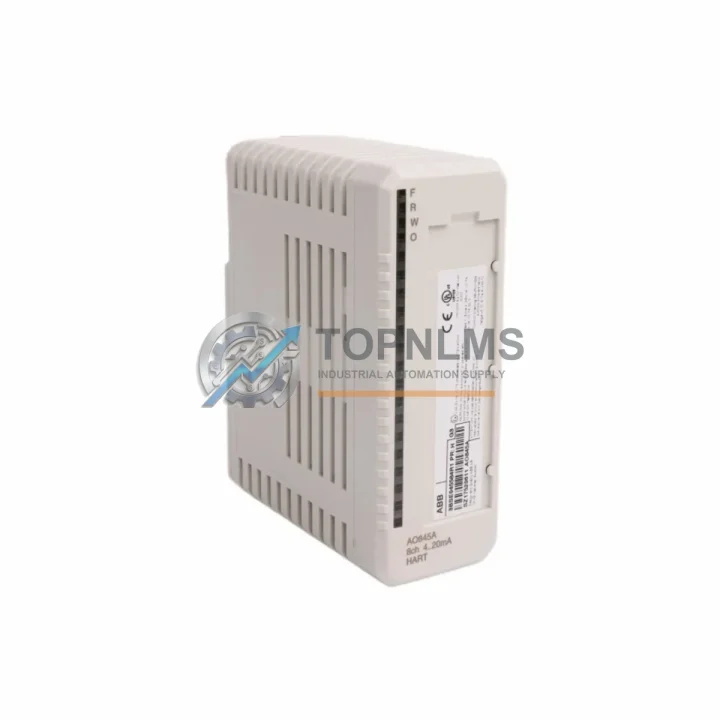

The ABB AO845A (part number 3BSE045584R1) is an original 8-channel redundant analog output module engineered for the ABB AC 800M Distributed Control System (DCS) platform. In process-critical environments — oil and gas, chemical processing, power generation, pulp and paper, and water treatment — the AO845A serves as a cornerstone of the S800 I/O subsystem, converting digital control signals from the AC 800M controller into precise 4–20 mA analog outputs that drive field instruments including control valves, variable frequency drives, and positioners.

When a plant experiences an unplanned shutdown caused by a failed analog output module, every hour of downtime translates directly into lost production and escalating maintenance costs. Holding a verified original AO845A 3BSE045584R1 in your on-site spare parts inventory is one of the most cost-effective decisions a maintenance engineer can make. This module supports hardware redundancy, meaning it can operate in a redundant pair configuration alongside a second AO845A, providing automatic bumpless transfer in the event of a module fault — a capability that is essential for continuous process control where output interruption is unacceptable.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for an AC 800M-based DCS cabinet goes well beyond replacing a single module. When scheduling a planned outage to inspect or replace the AO845A 3BSE045584R1, experienced maintenance teams use the opportunity to audit the entire S800 I/O rack and associated field wiring. The S800 I/O baseplate — typically a TB820V2 or TB840A — should be inspected for corrosion on the bus connectors and mechanical integrity of the module locking tabs; a degraded baseplate can cause intermittent communication faults that are difficult to diagnose under load.

The AI810 and AI830A analog input modules installed in the same rack are subject to the same environmental stresses as the AO845A and should be checked for drift or calibration deviation during the same maintenance window. If the control loop includes a HART-enabled field device, verifying that the AO845A’s HART pass-through function is operating correctly is a low-cost step that can prevent future diagnostic blind spots.

Power distribution within the control cabinet deserves equal attention. The SD821 and SD822 power supply modules that feed the S800 I/O bus should be load-tested and their output voltages verified against specification. A marginal power supply operating near its thermal limit is a common root cause of sporadic module resets that are often misdiagnosed as module failures. Replacing the AO845A without addressing a failing SD821 will result in repeat failures.

Communication infrastructure is another area where proactive replacement pays dividends. The CI854A PROFIBUS DP communication interface module, which bridges the AC 800M controller to the S800 I/O bus, should be inspected for firmware currency and connector integrity. Similarly, the PM856 or PM864 controller module itself should have its battery backup verified — a depleted battery can cause configuration loss during a power cycle, leading to extended recovery time after a shutdown event.

For plants running mixed I/O architectures, the DI810 and DO810 digital I/O modules in the same cabinet should be functionally tested during the same maintenance cycle. Relay output modules such as the DO840 should have their output contacts checked for wear, particularly in applications with high switching frequency. Terminal blocks and field wiring terminations — including the TB806 and TB807 series — should be torque-checked and inspected for insulation degradation, especially in high-humidity or high-vibration environments.

Maintaining a minimum stock of one spare AO845A 3BSE045584R1 per AC 800M DCS node, alongside spares for the AI810, SD821, and CI854A, represents a well-balanced inventory strategy that covers the highest-probability failure modes without excessive capital commitment.

Strategic Replacement Solutions

The AO845A 3BSE045584R1 is a direct replacement for earlier S800 I/O analog output modules including the AO810 and AO820, offering backward compatibility with existing S800 baseplates and wiring infrastructure. This means maintenance teams can upgrade aging analog output hardware without rewiring field cables or modifying the AC 800M controller configuration — a significant advantage in brownfield installations where minimizing change scope is a priority.

For plants operating legacy AC 800M systems that are no longer covered by ABB’s standard support lifecycle, sourcing original spare modules from verified industrial distributors is the most reliable path to maintaining system stability. Counterfeit or non-original modules may appear electrically compatible but frequently fail to meet the timing and signal integrity requirements of the S800 I/O bus, leading to subtle control errors that are difficult to trace. The AO845A supplied by TOPNLMS is sourced from original ABB manufacturing channels and undergoes functional testing prior to shipment.

In redundant configurations, replacing one module of a redundant pair requires careful attention to the switchover sequence to avoid a momentary output disturbance. The AC 800M’s built-in redundancy management handles bumpless transfer automatically when the replacement procedure is followed correctly, allowing hot-swap replacement without process interruption in most configurations. This capability makes the AO845A one of the most maintenance-friendly modules in the S800 I/O portfolio and justifies its role as a priority spare in any AC 800M-based plant.

For older facilities considering a partial modernization, the AO845A also serves as a bridge component — retaining the existing AC 800M controller and field wiring investment while refreshing the I/O layer with current-production hardware that carries a full 12-month warranty and is eligible for ABB’s extended support programs.

Support FAQ

Q1: Is the AO845A 3BSE045584R1 compatible with all AC 800M controller versions?
Yes. The AO845A is compatible with all AC 800M controller modules including PM851, PM856, PM860, PM861, PM864, and PM866, provided the S800 I/O firmware is at a supported revision. We recommend verifying the controller firmware version against ABB’s S800 I/O compatibility matrix before installation. Our technical team can assist with compatibility verification prior to purchase.

Q2: What testing is performed before shipment, and what does the 12-month warranty cover?
Every AO845A 3BSE045584R1 unit undergoes functional power-on testing and output channel verification before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the specified operating range. Warranty claims are processed with a target response time of 3 business days.

Q3: Can I replace the AO845A in a live redundant system without shutting down the process?
In a properly configured 1:1 redundant pair, the AC 800M’s redundancy management will transfer control to the healthy module before the faulty unit is removed, allowing hot-swap replacement without process interruption. However, this procedure requires that the redundant partner module is confirmed healthy before initiating the swap. We strongly recommend following ABB’s official hot-swap procedure documented in the S800 I/O Hardware Manual (3BSE020924).

Q4: How should I plan my spare parts inventory for an AC 800M DCS with multiple AO845A modules installed?
Industry best practice for critical DCS spare parts is to maintain a minimum of one spare per installed redundant pair, or one spare per four non-redundant modules, whichever is greater. For plants with extended lead times from their primary supplier, holding two units is advisable. Pairing the AO845A spare with spares for the SD821 power supply and CI854A communication module covers the three most common hardware failure points in a typical S800 I/O node.
