ABB AO820 3BSE008546R1 Original Industrial Spare S800 Compatible

Product Overview

ABB AO820 3BSE008546R1 Original Industrial Spare S800 Compatible: System Stability & Maintenance Value

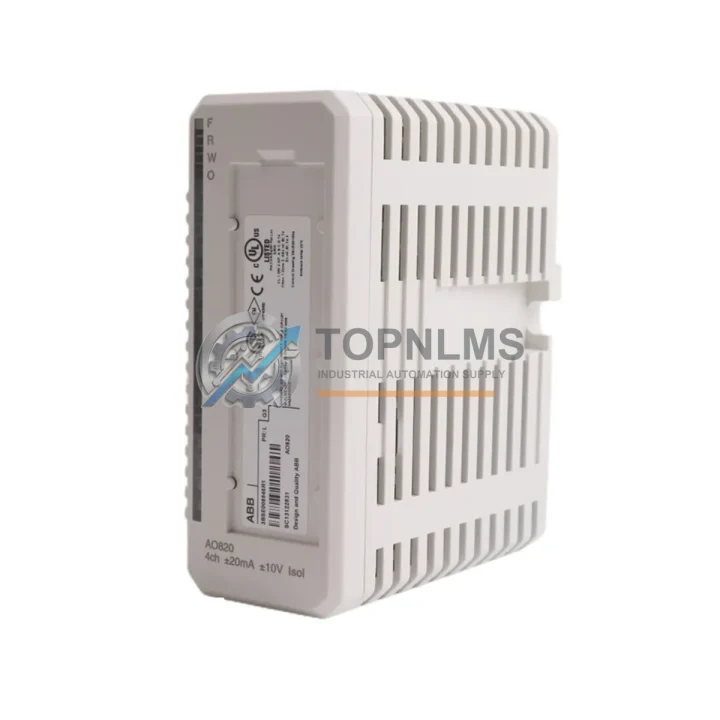

The ABB AO820 (3BSE008546R1) is an original 8-channel analog output module engineered for ABB’s AC800M Distributed Control System (DCS) and the S800 I/O platform. In process-critical environments — from chemical plants and oil refineries to pulp and paper mills and power generation facilities — the AO820 serves as a cornerstone of loop control integrity. Each channel delivers a 4–20 mA or 0–10 V analog signal to field devices such as control valves, variable frequency drives, and positioners, translating the controller’s digital commands into precise physical actuation.

When an AO820 module fails or degrades, the consequences extend far beyond a single control loop. Entire process trains can be forced into manual operation, safety interlocks may activate, and unplanned downtime accumulates rapidly. Maintaining a verified original spare on the shelf is not a luxury — it is a fundamental element of any responsible maintenance strategy for AC800M-based control systems.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled inspection of the AC800M control cabinet should treat the AO820 as part of a broader ecosystem of interdependent components. During any planned shutdown or annual maintenance window, technicians should simultaneously verify the condition of the TB820 or TB840 base unit that the AO820 plugs into — worn or corroded base contacts are a leading cause of intermittent analog output faults that are frequently misdiagnosed as module failure.

The S800 ModuleBus optical fiber cables connecting I/O stations to the AC800M controller should be inspected for bend radius violations and connector contamination. A degraded optical link can cause the AO820 to enter a fault state even when the module itself is fully functional. Alongside the optical bus, the SD821 or SD822 power supply modules feeding the I/O station backplane deserve attention — under-voltage conditions accelerate wear on all installed I/O modules, including the AO820.

For facilities running mixed analog and digital control loops, the AI820 or AI830A analog input modules in the same I/O station should be checked concurrently. Feedback loops depend on both accurate input reading and accurate output delivery; replacing an AO820 without verifying the paired AI module leaves a latent fault in the loop. Similarly, DI810 and DO810 digital I/O modules sharing the same station backplane should be confirmed operational, as a failing digital module can generate bus errors that affect neighboring analog modules.

Control valve positioners and VFDs connected to AO820 outputs should be tested for correct response across the full 4–20 mA range during any maintenance window. If a positioner shows sluggish or non-linear response, the issue may lie in the field terminal assembly (FTA) or marshalling cabinet wiring rather than the module itself. Inspecting MTU210 or MTU212 marshalling terminal units and associated cable shields is a cost-effective step before committing to module replacement.

For sites with aging AC800M infrastructure, proactive procurement of a PM864 or PM866 controller module as a cold standby is advisable. Controller failures are statistically less frequent than I/O module failures, but their impact is total — a spare controller paired with a spare AO820 provides comprehensive coverage for the most disruptive failure modes. Rounding out a complete spare kit, CI854 or CI858 communication interface modules for PROFIBUS or FOUNDATION Fieldbus integration should be stocked if the plant uses fieldbus-connected devices alongside the S800 I/O platform.

Strategic Replacement Solutions

The AO820 (3BSE008546R1) is a direct replacement for earlier S800 analog output modules used in legacy AC800M installations. Its plug-and-play compatibility with existing TB820/TB840 base units means that field replacement requires no rewiring and no controller configuration changes — the module is recognized automatically upon insertion, and the I/O station resumes normal operation within seconds of power restoration.

For plants transitioning from older ABB Advant or Master series DCS platforms, the AO820 represents a validated migration path that preserves existing field wiring and loop tuning parameters while delivering improved signal resolution and diagnostics. This eliminates the engineering cost and risk associated with full I/O system replacements, extending the productive life of the control system by five to ten years at a fraction of the capital cost.

Facilities managing multiple AC800M cabinets benefit from standardizing on the AO820 as the sole analog output module type across all stations. Standardization reduces spare parts inventory complexity, simplifies technician training, and accelerates mean time to repair (MTTR) during unplanned outages. A recommended minimum stock level is one AO820 per five installed modules, with a floor of two units per site regardless of installed base size.

Each unit supplied by TOPNLMS is sourced from verified original channels, subjected to functional output testing across all eight channels prior to shipment, and shipped with full ESD protection and original-style packaging. A 12-month warranty covers all electrical and functional defects, with direct technical support available for compatibility verification and installation guidance.

Support FAQ

Q1: Is the AO820 3BSE008546R1 compatible with all AC800M controller versions?
Yes. The AO820 is compatible with all AC800M controller modules including PM860, PM861, PM864, and PM866, provided the S800 I/O station firmware is at a supported revision. For installations running controller firmware below version 5.0, contact our technical team to confirm compatibility before ordering.

Q2: What testing is performed before shipment?
Every AO820 unit undergoes full 8-channel functional output testing at 4 mA, 12 mA, and 20 mA setpoints, bus communication verification, and visual inspection for physical damage. A test report is available upon request. Units are shipped in anti-static packaging with desiccant to prevent moisture ingress during transit.

Q3: Can the AO820 replace an older S800 analog output module with a different part number?
In most cases, yes. The AO820 is the current production variant of the S800 8-channel analog output family and is backward compatible with TB820 and TB840 base units used by earlier module variants. If you are replacing a module with a different channel count or signal range, please provide the original part number for compatibility confirmation.

Q4: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all electrical and functional defects under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact [email protected] with your order number and a description of the fault. Replacement units are dispatched within 3 business days of fault confirmation.
