ABB AO815 3BSE052605R1 Original Industrial Spare S800 Compatible

Product Overview

ABB AO815 3BSE052605R1 Original Industrial Spare S800 Compatible: Ensuring System Stability in Critical Automation Environments

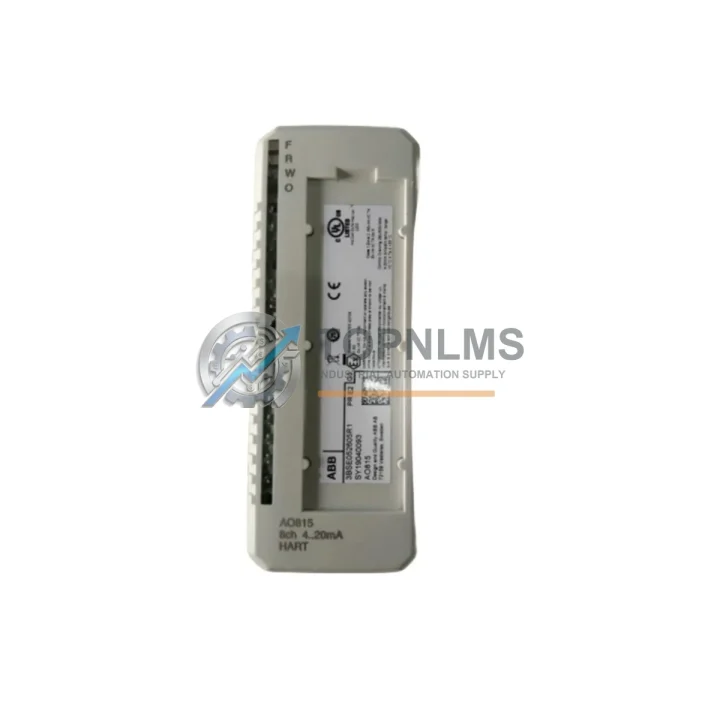

The ABB AO815 (3BSE052605R1) is an original 8-channel analog output module engineered for the ABB S800 I/O distributed I/O system, fully compatible with the AC800M process controller platform. In process industries — including oil & gas, pulp & paper, power generation, and chemical manufacturing — the AO815 serves as a precision signal conduit between the DCS controller and field actuators such as control valves, variable-speed drives, and positioners. Sourced directly from ABB’s original manufacturing supply chain and verified against factory specifications, this module is a trusted replacement for aging or failed units in both active production environments and legacy system extensions.

When a plant experiences an unplanned shutdown caused by a failed analog output channel, every hour of downtime translates directly into production loss and maintenance cost. Stocking the AO815 as a certified spare eliminates the lead-time risk associated with emergency procurement and ensures that maintenance teams can execute a like-for-like swap without reconfiguration, re-engineering, or compatibility validation delays. This is the operational logic behind strategic spare parts inventory management in industrial facilities.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your AC800M / S800 I/O System

A disciplined preventive maintenance program for an AC800M-based DCS cabinet goes well beyond replacing a single failed module. When scheduling a planned outage or conducting a routine cabinet inspection, maintenance engineers should treat the AO815 replacement as an opportunity to audit the health of the entire I/O cluster. The S800 I/O baseplate — typically a TB820V2 or TB840A — should be inspected for oxidized contacts and mechanical wear, as a degraded baseplate can cause intermittent channel faults even after a module swap.

The AI810 and AI815 analog input modules installed in the same cabinet share the same ModuleBus architecture and are subject to identical environmental stresses. If the AO815 has reached end-of-life, the adjacent analog input modules are likely approaching the same threshold and should be included in the replacement plan. Similarly, the DI810 and DO810 digital I/O modules in the same rack should be checked for contact wear and firmware currency.

Power integrity is a frequently overlooked factor in S800 I/O reliability. The SD821 or SD822 power supply units feeding the I/O bus should be load-tested during the maintenance window. A power supply operating near its rated capacity or showing voltage ripple will accelerate module degradation across the entire rack. Stocking a spare SD821 alongside the AO815 is a low-cost insurance policy against cascading failures.

Communication continuity is equally critical. The CI854 or CI858 PROFIBUS/PROFINET communication interface modules connecting the S800 I/O cluster to the AC800M controller should be inspected for firmware version alignment and connector integrity. A communication module failure will take the entire I/O cluster offline, making it a higher-priority spare than any individual I/O module. For facilities running redundant controller configurations, verifying the health of the PM864 or PM866 processor modules and their associated SM810 or SM811 redundancy modules is a mandatory step in any planned maintenance cycle.

Field wiring termination quality directly affects AO815 output accuracy. During the maintenance window, inspect the TB825 or TB840 terminal bases for loose screw terminals, corroded conductors, and incorrect shielding practices. Signal integrity issues at the termination level are often misdiagnosed as module failures, leading to unnecessary module replacements. A calibrated loop tester should be used to verify the 4–20 mA output of each channel against the engineering range configured in the AC800M application before the cabinet is returned to service.

Strategic Replacement Solutions: Minimizing Downtime in Legacy AC800M Installations

The ABB AC800M platform has been deployed globally since the early 2000s and remains in active service across thousands of process plants. ABB’s long-term support commitment means that original spare parts such as the AO815 remain available, but procurement lead times from distribution channels can extend to 8–16 weeks for non-stocked items. Facilities that rely on just-in-time procurement for critical I/O modules are exposed to significant downtime risk.

The AO815 (3BSE052605R1) is a direct, plug-and-play replacement for earlier S800 analog output variants. Because the module retains full backward compatibility with existing AC800M application configurations, no software changes, channel remapping, or controller restart is required during a hot-swap replacement on a redundant system. This compatibility characteristic is a key procurement argument for maintenance managers seeking to standardize their spare parts inventory across multiple plant units running different generations of the S800 I/O system.

For facilities managing the end-of-life transition of older ABB Advant or MOD 300 systems, the AC800M with S800 I/O represents the validated migration path. Stocking AO815 modules as part of a system modernization spare parts kit — alongside CI854 communication interfaces and PM856 or PM864 processor modules — provides the inventory foundation for a phased migration strategy that minimizes capital expenditure while extending the operational life of the existing control infrastructure by 5–10 years.

All units supplied by TOPNLMS are subject to pre-shipment functional testing, including full 8-channel output verification across the 4–20 mA range, ModuleBus communication handshake confirmation, and visual inspection against ABB’s original cosmetic and labeling standards. Units are shipped in anti-static packaging with individual test records available upon request. A 12-month warranty covering manufacturing defects and functional failures is included with every shipment.

Support FAQ

Q1: Is the AO815 (3BSE052605R1) compatible with all AC800M processor variants?
Yes. The AO815 is compatible with all AC800M processor modules including PM851, PM856, PM860, PM861, PM864, and PM866, as well as all S800 I/O baseplates (TB820V2, TB840A). No firmware or configuration changes are required when replacing a like-for-like unit.

Q2: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers functional failures and manufacturing defects under normal operating conditions. To initiate a claim, contact TOPNLMS with the order reference and a description of the fault. Defective units are replaced or refunded within the warranty period. The warranty period begins from the date of shipment.

Q3: How should I verify the AO815 is functioning correctly after installation?
After installation, use the AC800M Control Builder application to confirm the module is recognized on the ModuleBus and that all 8 channels report healthy status. Use a calibrated loop tester or multimeter to verify the 4–20 mA output of each active channel against the configured engineering range. Any channel deviation exceeding ±0.1% of full scale should be investigated before returning the loop to automatic control.

Q4: What is the recommended spare parts stocking strategy for the AO815?
For facilities with 1–4 AO815 modules installed, a minimum of one spare unit is recommended. For larger installations (5+ modules), a 20% spare ratio is the industry standard. Given typical procurement lead times of 8–16 weeks for non-stocked items, on-site spares are the most effective downtime mitigation strategy. TOPNLMS offers volume pricing for multi-unit spare parts orders — contact us for a quotation.
