ABB AINT-14C 68685826 Original Industrial Spare ACS800 Compatible: Ensuring System Stability in Demanding Industrial Environments

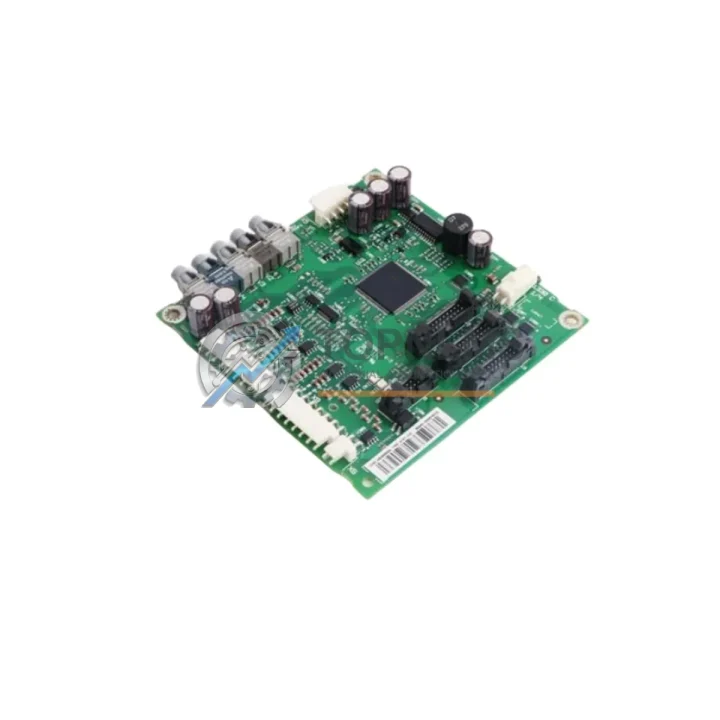

The ABB AINT-14C 68685826 is an original motor control interface board engineered for the ABB ACS800 series variable frequency drive platform — one of the most widely deployed drive families in heavy industrial, process, and manufacturing automation worldwide. Whether you are managing a scheduled maintenance window, responding to an unplanned drive fault, or building a strategic spare parts inventory for a critical production line, the AINT-14C 68685826 represents a direct, drop-in replacement that preserves full compatibility with your existing ACS800 drive cabinet without requiring firmware reconfiguration or hardware adaptation.

Industrial facilities running ACS800 drives in continuous-duty applications — including pump stations, compressor trains, conveyor systems, and HVAC air handling units — depend on the motor control interface board as the communication and control backbone between the drive’s main control unit and the power stage. A failed or degraded AINT-14C can manifest as erratic speed references, loss of fieldbus communication, unexpected drive trips, or complete drive shutdown. Stocking a verified original replacement eliminates the diagnostic uncertainty and procurement delays that extend unplanned downtime from hours into days.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your ACS800 Drive System

A motor control interface board failure rarely occurs in isolation. In most industrial drive cabinets, the AINT-14C operates in close electrical and thermal proximity to several other components that share the same maintenance cycle. When performing a scheduled inspection or replacing the AINT-14C 68685826, maintenance engineers should simultaneously evaluate the condition of the ACS800 RMIO-02C main control board, which governs the overall drive logic and is the upstream controller that the AINT-14C interfaces with. A degraded RMIO board can cause intermittent faults that are incorrectly attributed to the interface board, leading to repeat failures after replacement.

The RDCO-02C or RDCO-04C optical communication module mounted on the AINT-14C’s fieldbus adapter slot should be inspected for fiber optic connector contamination and signal integrity. In dusty or humid environments, optical connectors degrade silently and cause communication timeouts that trigger nuisance drive trips. Replacing the optical module alongside the interface board during a planned outage is a cost-effective way to reset the maintenance clock on the entire communication chain.

Power supply integrity is equally critical. The APOW-01C auxiliary power supply board feeds the control electronics of the ACS800 drive, including the interface board. Voltage ripple or dropout from an aging APOW module can corrupt the AINT-14C’s signal processing and cause erratic behavior that mimics a board fault. Inspecting or replacing the APOW-01C during the same maintenance window eliminates this variable.

On the I/O side, the AIMA-01C I/O extension module and any installed AITC-01C or AITC-02C analog input terminal boards should be checked for loose terminal connections, corrosion on screw terminals, and signal drift. Loose wiring at the terminal block level is one of the most common root causes of intermittent analog reference faults in ACS800 installations. While the cabinet is open, inspect the 24 VDC control power fuse module and replace any fuses that show signs of heat discoloration or increased resistance.

For facilities running ACS800 drives in multi-drive configurations with a common DC bus, the AINP-01C or AINP-11C inverter control board in adjacent drive units should be included in the inspection scope. A fault propagating through the DC bus can stress interface boards across multiple drives simultaneously. Proactive inspection of the full drive line reduces the risk of cascading failures during production restarts.

Finally, if the ACS800 cabinet includes a RPBA-01 PROFIBUS adapter or RETA-01 Ethernet adapter for PLC integration, verify that the adapter firmware is current and that the fieldbus address configuration matches the PLC program. Firmware mismatches between a newly installed AINT-14C and an older adapter module can cause communication initialization failures that delay commissioning after replacement.

Strategic Replacement Solutions: Minimizing Downtime, Preserving System Compatibility

The ABB ACS800 platform has been in active industrial service for over two decades, and many facilities are operating drives that are no longer covered by OEM service contracts. For these legacy installations, sourcing original spare boards such as the AINT-14C 68685826 is the most reliable path to restoring drive functionality without the capital expenditure of a full drive replacement. Unlike third-party remanufactured boards, an original AINT-14C maintains the exact firmware baseline, hardware revision, and signal timing characteristics that the ACS800 drive expects — eliminating the compatibility risk that comes with non-OEM alternatives.

The AINT-14C 68685826 is a direct replacement for earlier AINT-14 and AINT-14B revisions used in older ACS800 frame sizes. In most cases, the board swap requires no parameter changes to the drive’s parameter set, allowing maintenance teams to complete the replacement and return the drive to service within a single shift. This is particularly valuable in process industries where extended drive downtime triggers production losses that far exceed the cost of the spare part itself.

For facilities managing a fleet of ACS800 drives across multiple production lines or plant locations, establishing a minimum stock level of one AINT-14C per drive cluster is a recognized best practice in industrial spare parts management. The board’s compact form factor and stable storage requirements make it well-suited for on-site spare parts storage, and its 12-month warranty from TOPNLMS provides assurance that the part will perform to specification when called into service.

Support FAQ

Q1: Is the AINT-14C 68685826 compatible with all ACS800 drive variants?
The AINT-14C 68685826 is compatible with the ACS800 single drive series including ACS800-01, -02, -04, -07, -11, and -17 frame sizes. Compatibility with ACS800 multidrive inverter modules (ACS800-104, -304) should be verified against the drive’s hardware revision documentation. Contact us with your drive nameplate data for confirmation before ordering.

Q2: What pre-shipment testing is performed on this board?
Every AINT-14C 68685826 unit dispatched from TOPNLMS undergoes functional verification testing prior to shipment, including power-on self-test, I/O signal continuity checks, and visual inspection for component damage or corrosion. A test report is available upon request. All units are shipped in anti-static packaging with protective foam inserts.

Q3: How does the 12-month warranty work for this spare part?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. Warranty claims are processed by contacting [email protected] with the order reference and a description of the fault. TOPNLMS will arrange for inspection and replacement or refund in accordance with the warranty terms. Physical damage caused by incorrect installation or overvoltage events is excluded from warranty coverage.

Q4: Can I stock this board as a long-term spare for an aging ACS800 installation?
Yes. The AINT-14C 68685826 is well-suited for long-term spare parts inventory. Store the board in its original anti-static packaging in a dry environment between -40°C and +70°C, away from direct sunlight and electromagnetic interference sources. For installations where the ACS800 drive is expected to remain in service for 5–10 more years, holding one or two AINT-14C boards on-site is a cost-effective risk mitigation strategy that eliminates lead-time exposure during a critical failure event.
