ABB AINT-02C Replacement/Upgrade Solution for ACS800

Product Overview

ABB AINT-02C Replacement/Upgrade Solution for ACS800: Smooth Migration from Legacy Drive Systems

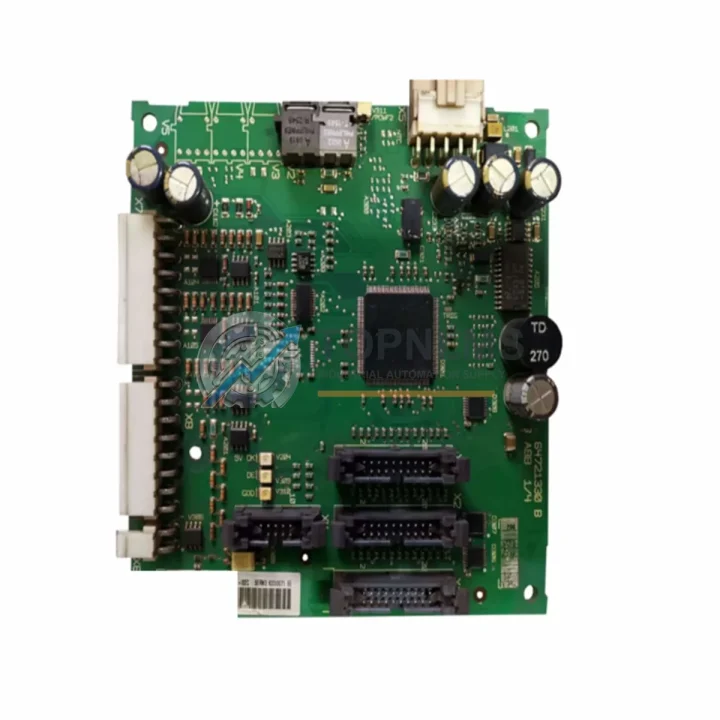

The ABB AINT-02C is the main circuit interface board for the ACS800 series industrial AC drives, serving as the critical communication bridge between the drive’s power stage and its control electronics. As ACS800 installations age and original AINT-02C boards reach end-of-service life, procurement teams and maintenance engineers face increasing pressure to source verified replacements that preserve existing wiring layouts, control logic, and system architecture without forcing a full drive overhaul.

TOPNLMS supplies the AINT-02C as a direct drop-in replacement for ACS800 single drives and cabinet-built drive systems. Every unit is sourced from authorized supply chains, inspected against ABB’s original board-level specifications, and dispatched with a 12-month replacement warranty. Whether you are managing a planned maintenance window or responding to an unplanned drive fault, our stock-ready fulfillment from Xiamen supports fast international shipping to minimize production downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AINT-02C board replacement rarely happens in isolation. In most ACS800 retrofit and migration projects, the interface board swap is one step in a broader drive system restoration. Engineers working on ACS800 cabinet drives typically address the RDCU-02C or RDCU-12C control unit at the same time, since the AINT-02C communicates directly with the control board via the internal DDCS fiber-optic link. If the control unit shows parameter loss or communication faults after a power event, replacing both the AINT-02C and the RDCU control board together eliminates the risk of residual faults masking each other during commissioning.

For drives integrated into larger automation architectures, the ACS800’s fieldbus adapter slot — typically populated with an RPBA-01 PROFIBUS adapter or an RCAN-01 CANopen module — should be verified for communication integrity after any main circuit board replacement. A board swap that resets internal drive parameters can cause fieldbus node address or baud rate settings to revert, which will interrupt PLC communication from upstream controllers such as an ABB AC500 PLC or a third-party Siemens S7-300 system connected via PROFIBUS DP.

Power supply integrity is equally critical. The ACS800’s internal APOW-01 power supply board provides the low-voltage rails that feed the AINT-02C and control electronics. In aging drives where the AINT-02C has failed due to voltage stress or thermal cycling, the APOW-01 should be tested before the new interface board is energized. Similarly, the AINT-02C interfaces with the drive’s gate driver section, so verifying the AGDR-71C or AGDR-81C gate driver boards for IGBT firing integrity is standard practice in a thorough ACS800 overhaul.

For installations where the ACS800 drives a motor through an output filter or sine filter, the du/dt filter terminal connections at the drive output should be inspected during the board replacement window. This is also an appropriate time to verify the JCU-01 or JCU-02 control units if the site has migrated any drives to the ACS880 platform, since some facilities run mixed ACS800 and ACS880 fleets sharing the same control cabinet infrastructure.

I/O expansion is another common migration consideration. Sites that rely on the ACS800’s analog and digital I/O for speed reference and run/stop commands may also be using an RAIO-01 analog I/O extension module or an RDIO-01 digital I/O extension mounted on the control unit. These extension modules should be reseated and verified after any main board replacement to confirm signal integrity on the 0–10 V or 4–20 mA reference channels.

Retrofit Guidance FAQ

Q: Do I need to re-enter drive parameters after replacing the AINT-02C?
A: The AINT-02C itself does not store drive parameters — parameters are held in the RDCU control unit’s memory. If the RDCU is retained and undamaged, your parameter set (motor data, speed references, protection limits) will be preserved. We recommend uploading a parameter backup via DriveWindow or DriveStudio before any board swap as a precaution.

Q: Will the replacement board work with my existing wiring harness?
A: Yes. The AINT-02C replacement uses the identical connector layout as the original OEM board. No rewiring, pin remapping, or harness modification is required. The board is a direct form-fit-function replacement.

Q: What fault codes typically indicate AINT-02C failure?
A: Common fault codes associated with AINT-02C degradation on ACS800 drives include FF6E (main circuit fault), FF52 (DC bus measurement fault), and output phase loss faults. If these faults persist after clearing and cannot be attributed to motor or cable issues, the AINT-02C is a primary suspect.

Q: Is the AINT-02C compatible with all ACS800 frame sizes?
A: The AINT-02C is used across multiple ACS800 frame sizes. Please confirm your drive’s full type code (e.g., ACS800-01-0016-3) when ordering to ensure the correct board revision is supplied for your specific frame.

Q: Can I install this board myself, or do I need an ABB-certified engineer?
A: Board-level replacement in ACS800 drives requires qualified electrical personnel familiar with high-voltage drive safety procedures. The installation itself is straightforward — power down, discharge DC bus, swap board, reconnect — but must comply with local electrical safety regulations and ABB’s ACS800 hardware manual guidelines.

Q: What communication protocols does the ACS800 support after this replacement?
A: The ACS800 supports PROFIBUS DP, CANopen, DeviceNet, Modbus RTU, and Ethernet/IP via optional fieldbus adapter modules. The AINT-02C replacement does not affect fieldbus adapter compatibility. All existing protocol configurations remain valid after the board swap.

Warranty Assurance

Every AINT-02C supplied by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Our pre-shipment inspection process includes visual board inspection, connector integrity verification, and component-level checks against known failure points on the AINT-02C design. Units that do not pass inspection are not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit — not a repair-and-return cycle — to minimize your downtime exposure. Our after-sales response target is within 24 hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse with priority shipping.

For procurement teams managing spare parts programs, we can provide batch inspection reports and serialized shipping documentation upon request. We support standard commercial invoice formats for customs clearance across major import markets including the EU, Southeast Asia, the Middle East, and South America.
