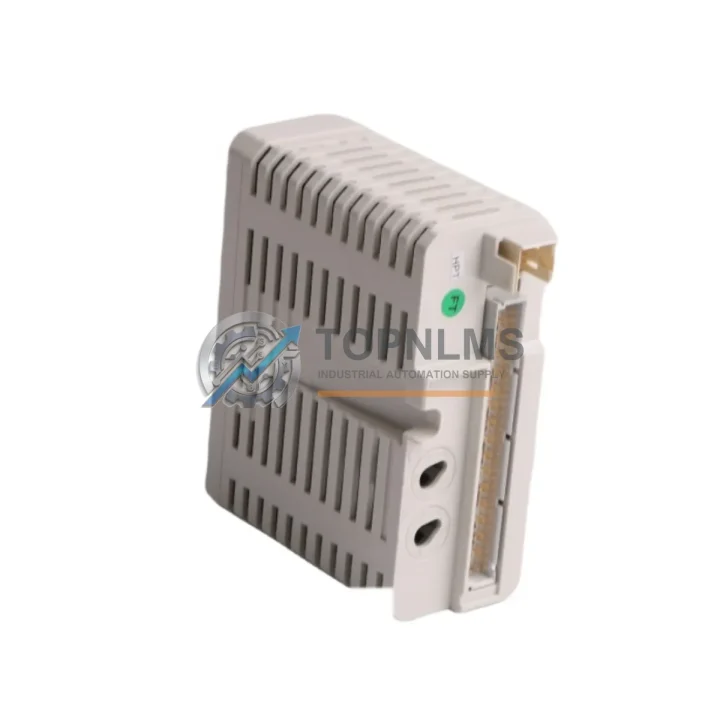

ABB AI815 3BSE052604R1 Original Industrial Spare S800 I/O Compatible

Product Overview

ABB AI815 3BSE052604R1 Original Industrial Spare S800 I/O Compatible: System Stability & Industrial Spare Parts Maintenance Value

In process-critical environments — petrochemical plants, power generation facilities, pulp and paper mills, and large-scale manufacturing operations — the integrity of the DCS analog input chain is non-negotiable. The ABB AI815 (3BSE052604R1) is an 8-channel analog input module purpose-built for the ABB S800 I/O system, operating seamlessly within AC 800M controller architectures. When this module fails or degrades, the consequences extend far beyond a single measurement point: process visibility collapses, alarm management becomes unreliable, and unplanned shutdowns become inevitable.

Sourced as an original ABB component, the AI815 3BSE052604R1 available through TOPNLMS is tested, verified, and shipped with a 12-month quality warranty. Whether you are responding to an emergency breakdown, executing a planned turnaround, or building a strategic spare parts inventory, this module delivers the confidence of genuine ABB engineering without the lead times of OEM procurement channels.

Critical Technical Specs

Preventive Maintenance Strategy

A disciplined preventive maintenance program for an AC 800M-based DCS system goes well beyond replacing a single analog input module. The AI815 3BSE052604R1 sits within a tightly integrated signal chain, and its reliable operation depends on the health of every upstream and downstream component in the I/O station and controller cabinet.

When scheduling a planned inspection or responding to a fault condition on the AI815, maintenance engineers should simultaneously evaluate the TB820V2 ModuleBus Optical Port — the communication backbone connecting S800 I/O stations to the AC 800M controller. A degraded optical fiber link or a failing TB820V2 can produce intermittent analog read errors that are frequently misdiagnosed as module faults. Stocking a spare TB820V2 alongside the AI815 eliminates this diagnostic ambiguity during high-pressure shutdowns.

The TU810V1 or TU812V1 base units (module termination units) should also be inspected during any AI815 replacement. These base units carry the field wiring terminations; corroded or loose terminal connections at the TU810V1 are a common root cause of signal drift and channel failures that appear to originate in the AI815 itself. If the base unit shows signs of heat stress or terminal oxidation, replace it concurrently with the module.

For sites running mixed analog and digital I/O, the DI810 or DI811 digital input modules and DO810 digital output modules in the same I/O station should be included in the inspection cycle. These modules share the same ModuleBus infrastructure and power distribution, meaning a power rail anomaly can affect multiple module types simultaneously. Maintaining a minimum of one spare DI810 and one DO810 per control cabinet is a widely adopted best practice in continuous-process industries.

The SD821 or SD822 power supply units that feed the S800 I/O stations deserve particular attention. An aging or undersized power supply is one of the most common hidden causes of sporadic analog input errors. During any planned maintenance window, verify output voltage stability under load and check for capacitor bulging or thermal discoloration. A proactive SD821 replacement on a 7–10 year cycle significantly reduces the risk of cascade failures across the entire I/O station.

At the controller level, the PM856 or PM864 processor modules paired with the AI815 should have their firmware versions verified for compatibility with the current S800 I/O configuration. Mismatched firmware between the processor and I/O modules is a known source of intermittent communication faults. Keeping a spare processor module on-site — particularly for legacy AC 800M installations where OEM lead times can exceed 16 weeks — is a critical risk mitigation measure for any facility operating on tight production schedules.

Finally, the CI854 or CI857 communication interface modules (PROFIBUS DP or FOUNDATION Fieldbus) that bridge the AC 800M to field devices should be included in annual cabinet inspections. These modules are frequently overlooked until a fieldbus segment goes offline, at which point the diagnostic window is already closed. Pairing a CI854 spare with your AI815 inventory ensures that a single cabinet inspection can address the full spectrum of common failure modes without requiring a second maintenance visit.

Strategic Replacement Solutions

Many industrial facilities operating ABB AC 800M systems are running hardware that was commissioned 10 to 20 years ago. The AI815 3BSE052604R1 has been a cornerstone of S800 I/O analog measurement since its introduction, and its continued availability as an original spare part is a significant advantage for sites that cannot justify a full DCS migration in the near term.

For facilities managing the transition from older S800 I/O generations, the AI815 provides direct drop-in compatibility with existing TU810V1 and TU812V1 base units, eliminating the need for field wiring modifications during replacement. This plug-and-replace capability reduces mean time to repair (MTTR) from hours to minutes in emergency scenarios, directly translating to reduced production losses and lower maintenance labor costs.

For sites where the original AI815 has been discontinued through local distributor channels, TOPNLMS maintains stock specifically to serve the aftermarket maintenance window — the period between OEM end-of-life announcement and full system migration. Our pre-shipment testing protocol verifies module communication, channel accuracy, and isolation integrity before dispatch, ensuring that the module you receive performs to ABB factory specification from the moment it is installed.

Each AI815 3BSE052604R1 shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. In the event of a verified module defect within the warranty period, we provide replacement or full refund — no extended RMA delays, no ambiguous fault attribution. This warranty structure is designed specifically for industrial buyers who cannot afford uncertainty in their spare parts supply chain.

Support FAQ

Q1: How do I verify that the AI815 3BSE052604R1 is compatible with my existing AC 800M configuration?
The AI815 is compatible with all AC 800M controller variants (PM851 through PM866) running S800 I/O stations via TB820V2 ModuleBus optical connections. Compatibility is determined by the S800 I/O station type and the ModuleBus version, not by the specific processor module. If you can share your existing I/O station part number (e.g., TB820V2, TB840A), our technical team can confirm compatibility before shipment.

Q2: What is your pre-shipment testing process for the AI815?
Every AI815 3BSE052604R1 unit undergoes functional verification prior to dispatch, including ModuleBus communication handshake testing, per-channel analog input accuracy verification across the 4–20 mA range, and isolation resistance measurement. A test report is available upon request for quality-critical procurement processes.

Q3: How should I manage AI815 inventory for a multi-unit AC 800M installation?
For installations with 5 or more S800 I/O stations, we recommend maintaining a minimum of 2 AI815 spare units on-site. For critical process applications (safety instrumented systems, primary process control loops), a 1:4 spare ratio (one spare per four installed modules) is the industry-standard recommendation. Bulk procurement through TOPNLMS is available with volume pricing for facilities building strategic spare parts inventories.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers verified manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact us at [email protected] with your order reference and a description of the fault. We target a 48-hour response time for all warranty inquiries and aim to dispatch replacement units within 5 business days of fault verification.
