ABB AGPS-21C 64668064 Ruggedized Gate Power Supply Module

Product Overview

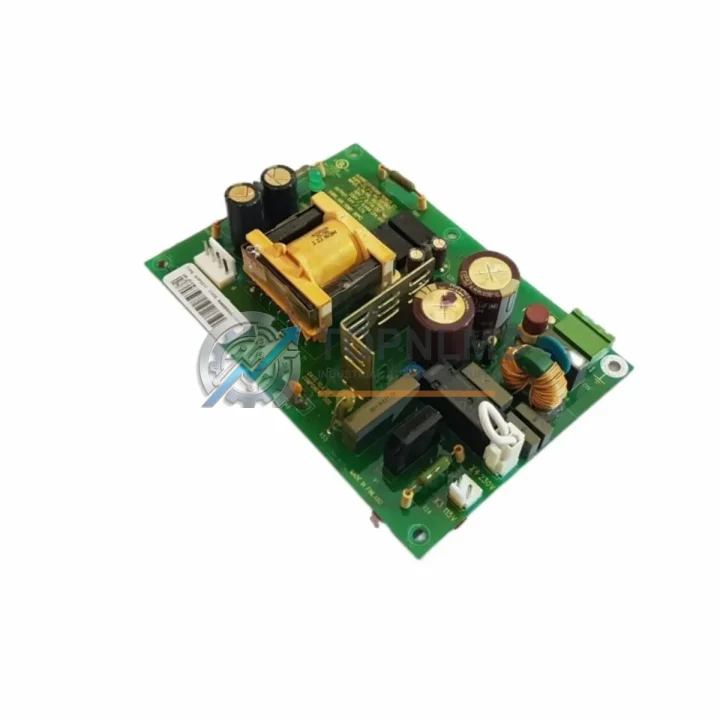

ABB AGPS-21C 64668064 Ruggedized Gate Power Supply Module for Harsh Industrial Environments

The ABB AGPS-21C 64668064 is a factory-engineered gate power supply module designed for the ABB ACS800 series variable frequency drive platform — one of the most widely deployed drive families in heavy industrial automation. Built to ABB’s stringent quality standards, this module delivers stable, interference-resistant gate triggering power to the IGBT power stage, ensuring continuous and reliable drive operation even under the most demanding field conditions: high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference (EMI) from adjacent high-power equipment.

In continuous production environments — including steel mills, cement plants, petrochemical refineries, offshore platforms, and municipal water treatment facilities — unplanned drive downtime translates directly into lost production and safety risk. The AGPS-21C 64668064 is engineered to eliminate that risk at the gate drive level, providing the precise, isolated power supply that the IGBT modules require to switch cleanly and safely under full load. Its robust PCB construction, conformal coating, and shielded signal paths make it a dependable long-term component in any ACS800 cabinet installation.

Rugged Specifications Table

Comprehensive Protection Solutions

The AGPS-21C 64668064 does not operate in isolation — it is a critical node within a broader ABB ACS800 drive system architecture. In a fully configured ACS800 cabinet, the gate power supply works in concert with the AINT-02C main interface board, which manages the communication backbone between the drive control logic and the power stage. The APOW-01C power supply board provides the primary auxiliary voltage rail that feeds the AGPS-21C, making both boards interdependent for stable operation. On the control side, the RMIO-11C drive control unit generates the PWM firing commands that the AGPS-21C translates into isolated gate signals for the IGBT modules.

In installations where the ACS800 drives are integrated into a wider plant automation network, the drive typically interfaces with a Profibus DP adapter module (RPBA-01) or a PROFINET adapter (RETA-02), enabling real-time speed and torque commands from a Siemens S7-300/S7-400 PLC or an ABB AC500 PLC controller. The I/O expansion is often handled through RAIO-01 analog I/O extension modules and RDIO-01 digital I/O extension modules, which feed process feedback signals — temperature, pressure, flow — back to the control system. Safety interlocking in hazardous zones is typically managed through a dedicated safety relay module such as the ABB JOKAB SMILE series, which monitors emergency stop circuits and ensures the drive is safely de-energized before any maintenance access.

For power quality and protection upstream of the drive, installations commonly include ABB line reactors (ACL series) and du/dt output filters to suppress voltage spikes that could otherwise stress the IGBT gate oxide layers — making the AGPS-21C’s job easier and extending the service life of the entire power stage. Terminal blocks from the ABB ENTRELEC SNK series are widely used within the same control cabinet for clean, vibration-resistant wiring termination.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, ACS800 drives equipped with the AGPS-21C 64668064 control submersible pump motors, compressor trains, and pipeline booster stations where continuous, uninterrupted operation is non-negotiable. The gate power supply’s isolation architecture ensures that high-voltage transients on the motor cable — common in long cable runs across offshore platforms — do not propagate back into the control electronics.

In mining and mineral processing, the ACS800 platform drives conveyor belts, ball mills, crushers, and ventilation fans in environments saturated with coal dust, silica, and corrosive gases. The conformal-coated PCB of the AGPS-21C provides a critical barrier against conductive contamination that would otherwise cause tracking faults and premature board failure.

In power generation and grid infrastructure, ACS800 drives manage cooling water pumps, induced draft fans, and fuel feed systems in thermal power plants. The AGPS-21C’s stable gate drive output is essential for maintaining precise motor speed control during load-following operations, where even brief drive trips can cascade into unit-level generation losses.

In water and wastewater treatment, the module supports variable-speed pump control for raw water intake, filtration backwash, and effluent discharge — applications where energy efficiency and process continuity are both regulatory and operational priorities. In metallurgy and steel production, the AGPS-21C sustains drive operation in the extreme thermal and electromagnetic environment of electric arc furnace auxiliaries, rolling mill drives, and ladle crane hoists.
