ABB AGDR-81C FS450R17KE3 Replacement for ACS800

Product Overview

ABB AGDR-81C FS450R17KE3 Replacement Solution for ACS800: Smooth Transition from Legacy Drive Systems

The ABB AGDR-81C + FS450R17KE3 IGBT SP Kit is the industry-preferred replacement solution for engineers and maintenance teams managing ACS800 series AC drive systems. Whether you are dealing with a failed inverter bridge, a discontinued gate driver board, or a degraded IGBT module in an aging ACS800 cabinet, this kit delivers a verified, drop-in upgrade path that minimizes downtime and preserves your existing wiring infrastructure.

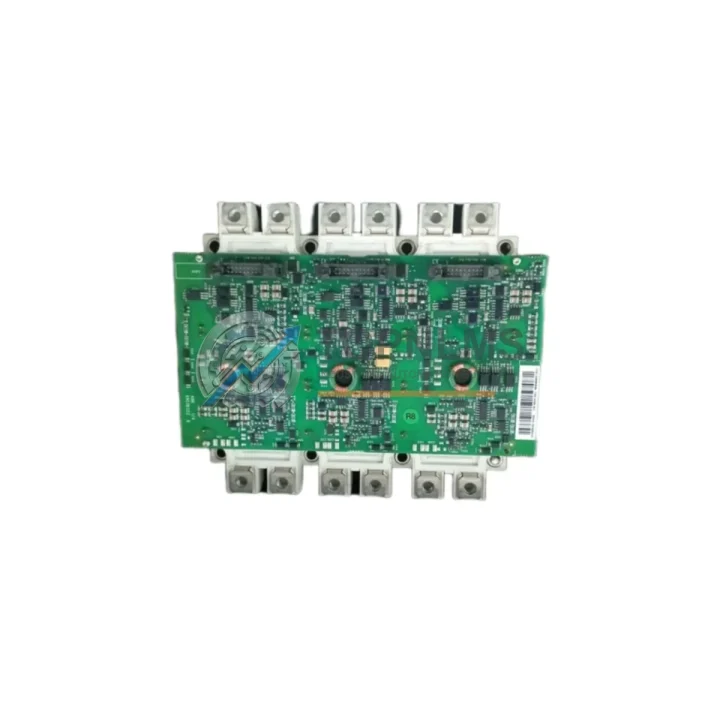

The AGDR-81C is the gate driver board responsible for controlling the FS450R17KE3 IGBT power module within the ACS800 inverter bridge assembly. Both components are tightly coupled in ABB’s drive architecture: the gate driver interfaces directly with the IGBT’s gate terminals, and any mismatch in timing, voltage threshold, or thermal protection logic will result in drive faults or catastrophic failure. Sourcing them as a matched SP (Spare Part) kit ensures full electrical and firmware compatibility from day one.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ACS800 inverter bridge replacement rarely involves only the IGBT module and gate driver. In practice, field engineers conducting a full drive modernization or emergency repair will also evaluate adjacent components to ensure system-wide reliability after the swap.

During the inverter bridge replacement procedure, the ACS800 AINT board (the main control interface board) should be inspected for capacitor aging and firmware version compatibility with the new gate driver. If the AINT board is running an outdated firmware revision, the AGDR-81C may not initialize correctly on first power-up. Similarly, the APBU-44C pulse encoder interface unit and the RDCO-03 DDCS communication module are frequently replaced in the same maintenance window, as fiber optic connectors degrade over time and can cause intermittent drive faults that are misdiagnosed as IGBT failures.

On the power supply side, the APOW-01 auxiliary power supply board provides the low-voltage rails that feed the gate driver circuitry. A failing APOW-01 can deliver insufficient gate drive voltage, causing the FS450R17KE3 to switch incompletely and generate excess heat — a common root cause of premature IGBT failure. Replacing the APOW-01 alongside the AGDR-81C + FS450R17KE3 kit eliminates this failure mode entirely.

For installations where the ACS800 cabinet also houses an AIMA-01 motor adapter module or an IOEC-04 I/O extension module, these should be bench-tested before recommissioning the drive. The IOEC-04 handles digital and analog I/O signals that feed into the drive’s speed reference and fault relay logic — a misconfigured or failed IOEC-04 will produce erratic behavior after the inverter bridge is replaced, making it appear as though the new IGBT kit is defective.

In multi-drive cabinet configurations using the ACS800 MultiDrive architecture, the DCB (DC Bus) busbars and pre-charge resistor assemblies must be verified for continuity and insulation integrity before energizing the replaced inverter bridge. Additionally, if the system uses an ARFI-xx input filter module for EMC compliance, its capacitor bank should be inspected — degraded filter capacitors can introduce voltage spikes that stress the new FS450R17KE3 immediately after installation.

Finally, for sites performing a full drive-to-drive migration from an older ACS600 or ACS400 platform to the ACS800 architecture, the NMBP-01 Modbus adapter or NPBA-12 PROFIBUS adapter may be required to bridge legacy PLC communication protocols to the ACS800’s fieldbus interface, ensuring that existing SCADA and DCS control logic continues to operate without reprogramming.

Retrofit Guidance FAQ

Q: Do I need to reprogram the ACS800 drive after replacing the AGDR-81C and FS450R17KE3?
A: No. The AGDR-81C is a hardware gate driver with no user-programmable firmware. The ACS800 drive parameters stored in the AINT board’s memory are preserved during the inverter bridge replacement. You do not need to re-enter drive parameters or motor data after the swap, provided the AINT board itself is not replaced.

Q: Is the wiring harness from the old AGDR-81C directly compatible with the new kit?
A: Yes. The AGDR-81C uses the same connector pinout across all production revisions compatible with the ACS800 R17 frame. The existing fiber optic cables, gate signal harness, and thermistor wiring connect directly to the replacement board without modification.

Q: What communication protocols does the ACS800 support after this replacement?
A: The ACS800 supports ABB’s DDCS (Distributed Drive Control System) fiber optic protocol natively. Optional fieldbus adapters enable PROFIBUS-DP, Modbus RTU, DeviceNet, CANopen, and EtherNet/IP — none of which are affected by the inverter bridge replacement.

Q: How much physical space does the replacement require inside the cabinet?
A: The AGDR-81C + FS450R17KE3 SP kit is dimensionally identical to the original components. No cabinet modifications, additional DIN rail space, or busbar rerouting is required. The replacement fits within the existing inverter bridge bay.

Q: Can this kit be used to replace a single failed IGBT in a three-phase bridge?
A: ABB recommends replacing all IGBTs in the same phase leg or full bridge simultaneously to ensure matched switching characteristics and thermal balance. Replacing only one module in a degraded bridge increases the risk of uneven current sharing and premature failure of the remaining modules.

Q: What is the recommended commissioning procedure after installation?
A: After mechanical installation and wiring verification, perform an insulation resistance test on the motor cables before energizing. Power up the drive in local control mode and verify gate driver status via the ACS800 diagnostic panel. Run the drive at low speed (5–10 Hz) under no-load conditions for 15–30 minutes before returning to full production load.

Warranty Assurance

Every ABB AGDR-81C + FS450R17KE3 IGBT SP Kit shipped from TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each kit undergoes a multi-point outgoing inspection that includes visual examination for physical damage, connector integrity verification, and cross-referencing of part markings against ABB’s original manufacturing specifications.

If a warranty claim arises within the 12-month coverage period, TOPNLMS provides direct replacement support. Our technical team will coordinate return logistics, conduct a failure analysis on the returned unit, and dispatch a verified replacement within the shortest possible lead time. We maintain buffer stock of high-demand ACS800 spare parts specifically to support rapid warranty replacements without extended waiting periods.

For procurement teams and MRO buyers, we issue a formal invoice with part numbers, serial references, and shipment documentation for every order. All units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage. Express shipping options are available for emergency breakdown situations, with dispatch from Xiamen typically within 1–2 business days of order confirmation.
