ABB AGDR-76C 68436800A Original Industrial Spare ACS800 Compatible

Product Overview

ABB AGDR-76C 68436800A Original Industrial Spare ACS800 Compatible: System Stability and Industrial Spare Parts Maintenance Value

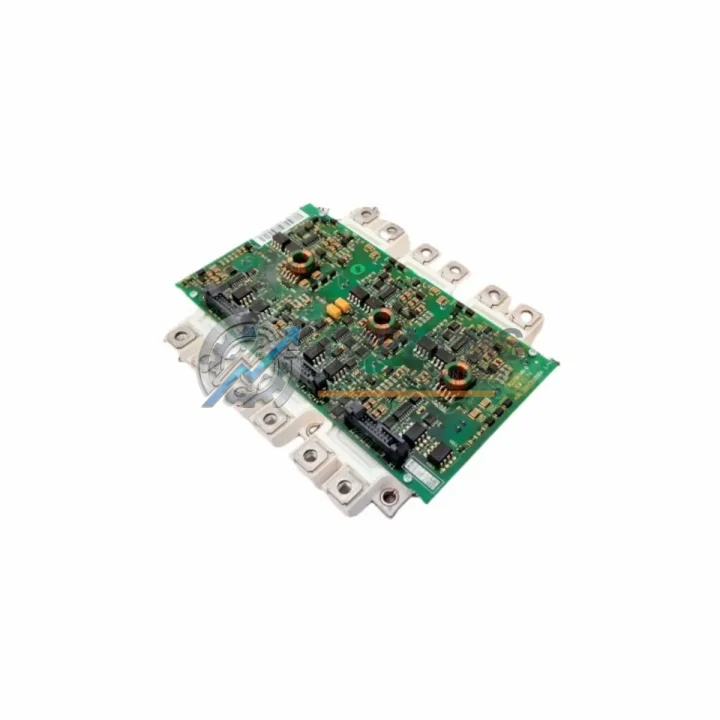

The ABB AGDR-76C (68436800A) is an original IGBT gate driver board engineered specifically for the ABB ACS800 series variable frequency drives. In industrial environments where continuous uptime is non-negotiable — from paper mills and cement plants to steel processing lines and water treatment facilities — this gate driver board sits at the heart of inverter reliability. When it fails, the entire drive goes offline. Stocking a verified original replacement is not optional; it is a core element of any responsible preventive maintenance program.

This board governs the switching of the IGBT power modules within the ACS800 drive stack, translating control signals into precise gate pulses that regulate motor torque, speed, and energy efficiency. A degraded or failed AGDR-76C manifests as overcurrent faults, erratic motor behavior, drive shutdown, or catastrophic IGBT failure — all of which translate directly into unplanned downtime and costly production losses. Replacing the gate driver board with a genuine ABB part ensures that switching timing, voltage thresholds, and fault protection logic remain within factory specification.

Critical Technical Specs

Preventive Maintenance Strategy

A gate driver board failure rarely occurs in isolation. During any ACS800 drive inspection or corrective maintenance event, experienced maintenance engineers treat the AGDR-76C replacement as the starting point of a broader system audit. The IGBT power modules themselves — such as the ABB IGBT module 5SNA 0400J650100 or equivalent stack components — should be checked for signs of thermal stress, gate oxide degradation, or collector-emitter leakage. If the gate driver has failed due to a desaturation event, the IGBTs may have sustained damage and should be tested before the drive is returned to service.

The ACS800 control board (RMIO board) communicates directly with the gate driver layer. After replacing the AGDR-76C, verify that the RMIO board firmware is current and that all parameter sets are intact. In multi-drive cabinet configurations, the RDCU-02C drive control unit and RINT-5611C rectifier interface board should also be inspected, as shared DC bus faults can propagate stress across multiple gate driver boards simultaneously.

Power supply integrity is equally critical. The APOW-01C power supply board feeds auxiliary voltage to the gate driver circuitry; a marginal power supply can cause intermittent gate driver faults that are difficult to diagnose without replacing both components. Similarly, the AINT-02C auxiliary inverter board and associated fiber optic communication cables (HFBR series) between the control and power sections should be inspected for contamination, connector fatigue, or optical signal degradation — all common causes of nuisance gate driver faults in aging ACS800 installations.

For facilities managing multiple ACS800 drives, a structured spare parts inventory should include the AGDR-76C gate driver board, at least one set of IGBT power modules, a spare RMIO control board, and a replacement fan assembly for the drive cooling stack. Cooling fan failure is one of the leading causes of thermal-induced gate driver damage; proactive fan replacement on a fixed-interval schedule — typically every 3 to 5 years depending on ambient conditions — significantly extends the service life of the entire power electronics assembly. The ACS800 capacitor bank (DC bus capacitors) should also be part of any long-term lifecycle plan, as capacitor aging increases ripple voltage that stresses gate driver components over time.

For older ACS800 installations approaching end-of-support, maintaining a curated stock of critical boards — including the AGDR-76C, RMIO, APOW, and RINT boards — is the most cost-effective strategy to extend system life by 5 to 10 years without a full drive replacement. This approach is widely adopted in industries where the cost of re-engineering motor control infrastructure far exceeds the cost of maintaining a strategic spare parts inventory.

Strategic Replacement Solutions

The ABB AGDR-76C 68436800A is a direct original replacement for the gate driver boards used across the ACS800 product family. Unlike aftermarket alternatives, the original ABB board maintains full compatibility with the ACS800’s internal diagnostics, fault logging, and protection coordination — ensuring that the drive’s safety functions operate exactly as designed after the repair.

For maintenance teams managing legacy ACS800 drives that are no longer covered under ABB service contracts, sourcing original spare boards from specialist industrial suppliers is the most reliable path to restoring full drive functionality. Aftermarket or counterfeit gate driver boards frequently lack the precise gate resistance values, isolation ratings, and desaturation threshold calibration of the original, leading to repeat failures or premature IGBT damage.

When planning a corrective maintenance event, having the AGDR-76C on-site before beginning disassembly eliminates the most common source of extended downtime: waiting for parts. With verified stock, tested before shipment and backed by a 12-month warranty, maintenance teams can execute a same-shift board swap and return the drive to service with confidence.

Support FAQ

Q1: Is the AGDR-76C 68436800A compatible with all ACS800 drive variants?
The AGDR-76C is designed for the ACS800 series inverter stack. Compatibility depends on the specific ACS800 frame size and power rating. Please confirm your drive’s full type code (e.g., ACS800-01, ACS800-04, ACS800-07) before ordering. Our team can assist with compatibility verification based on your drive nameplate data.

Q2: How is the board tested before shipment?
Every AGDR-76C unit undergoes functional testing prior to dispatch to verify gate signal output, fault protection response, and auxiliary power input integrity. A test report is available upon request. All units are shipped in anti-static packaging with physical protection to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified operating parameters. Warranty claims are processed promptly with replacement or refund options.

Q4: Can I use this board to extend the life of an ACS800 drive that ABB no longer supports?
Yes. The AGDR-76C is one of the most critical spare components for extending the operational life of legacy ACS800 installations. Combined with a strategic inventory of RMIO control boards, APOW power supply boards, and IGBT modules, facilities can maintain reliable drive operation well beyond the original manufacturer’s support window — avoiding costly system redesigns and production interruptions.
