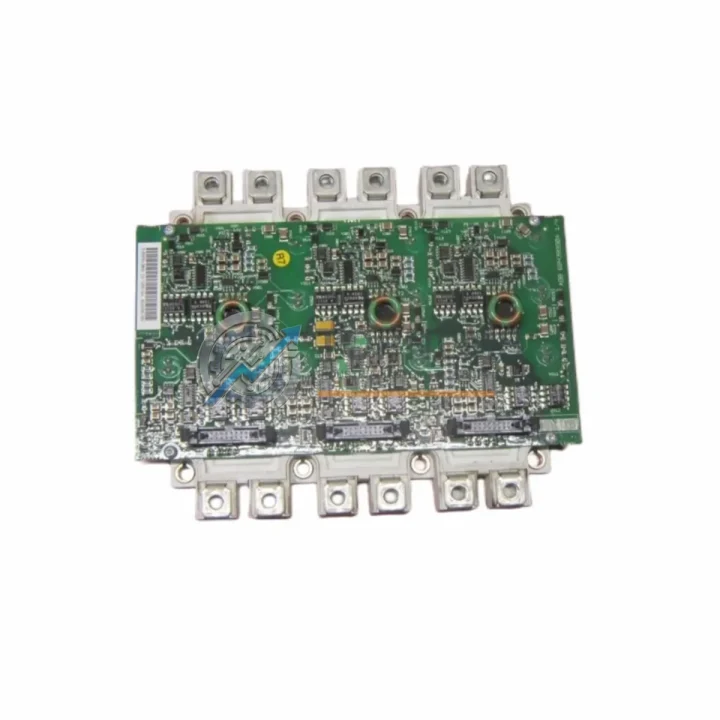

ABB AGDR-72C 68436788A Ruggedized IGBT Gate Driver Module

Product Overview

ABB AGDR-72C 68436788A Ruggedized IGBT Gate Driver Module: Industrial Resilience for Harsh Environments

The ABB AGDR-72C (Part No. 68436788A) is a precision-engineered IGBT gate driver board designed for deployment in the most demanding industrial environments. As a core control component within ABB’s ACS800 and ACS880 variable speed drive platforms, this module governs the switching behavior of IGBT power transistors — the critical interface between the drive’s control intelligence and its high-voltage power stage. In continuous production environments where drive failure translates directly to unplanned downtime and safety risk, the AGDR-72C delivers the signal integrity, thermal tolerance, and electromagnetic immunity that industrial operators depend on.

Engineered to ABB’s industrial-grade standards in Germany, this gate driver board is built to sustain reliable operation across wide temperature ranges, high-humidity atmospheres, vibration-prone machinery bases, and environments with elevated electromagnetic interference (EMI) — conditions routinely encountered in steel mills, petrochemical plants, mining operations, water treatment facilities, and heavy manufacturing lines.

Rugged Specifications Table

Comprehensive Protection Solutions

The AGDR-72C does not operate in isolation — it is one node in a tightly integrated drive and control architecture. In a typical ACS800 or ACS880 installation, the gate driver board works in concert with the ABB AINT-02C auxiliary interface board, which manages the fiber-optic communication links between the control unit and the power module. Alongside it, the ABB APOW-01C power supply board provides the regulated auxiliary voltages that the gate driver requires for stable operation. Any degradation in these companion boards will directly affect gate driver performance, making it essential to maintain spares for the full assembly.

On the power side, the AGDR-72C interfaces directly with ABB’s IGBT power modules — such as the ABB 5SNA 1200G450350 or equivalent high-power IGBT stacks — where precise gate timing is critical to preventing shoot-through faults and ensuring safe commutation. In multi-drive systems, the ABB RDCO-03C DDCS communication module coordinates drive-to-drive and drive-to-PLC communication, while the ABB RMIO-02A motor control board handles speed and torque regulation upstream of the gate driver stage.

For facilities running Siemens or Rockwell control infrastructure alongside ABB drives, the AGDR-72C integrates seamlessly into control cabinets that include Siemens S7-300/S7-400 PLC I/O modules, Allen-Bradley 1756 ControlLogix analog input cards, or Phoenix Contact QUINT-series industrial power supplies. Safety relay modules — such as the Pilz PNOZ X series or ABB Jokab Safety PLUTO — are commonly installed in the same control cabinet to provide SIL-rated emergency stop and safe torque-off (STO) functionality that interacts with the drive’s gate driver layer. Terminal blocks from Weidmüller or Phoenix Contact complete the wiring infrastructure, ensuring reliable signal routing in high-vibration enclosures.

Maintaining a stocked spare of the AGDR-72C alongside these companion components is a recognized best practice in industrial maintenance programs, particularly for facilities operating continuous production lines where mean time to repair (MTTR) is a key performance indicator.

Application in Critical Infrastructure

The ABB AGDR-72C 68436788A sees active deployment across a broad spectrum of critical industrial sectors. In oil and gas facilities, ACS800 and ACS880 drives equipped with this gate driver board control submersible pump motors, gas compressors, and pipeline booster stations — applications where drive failure can trigger costly production shutdowns or safety incidents. The gate driver’s robust EMI immunity is particularly valued in these environments, where variable frequency drives operate in close proximity to high-power electrical equipment and long cable runs that act as antennas for conducted and radiated interference.

In mining operations, the AGDR-72C supports conveyor belt drives, hoist motors, and ventilation fan systems that must operate continuously in dusty, high-vibration environments. The board’s thermal design accommodates the elevated ambient temperatures found in underground mining installations and surface processing plants. Power generation and transmission facilities use ACS880 drives with AGDR-72C boards to control induced draft fans, boiler feed pumps, and cooling tower fans — all critical auxiliaries where unplanned outages affect grid stability.

Water and wastewater treatment plants rely on ABB ACS800 drives for pump and blower control, where the AGDR-72C’s resistance to high-humidity environments is a decisive advantage. In metallurgical and steel production facilities, the board operates in rolling mill drives and ladle crane systems, enduring the intense electromagnetic noise generated by arc furnaces and induction heating equipment. Across all these sectors, the AGDR-72C’s role as the precision switching interface between control logic and high-power output makes it one of the most reliability-critical components in the drive system.

Security & Quality FAQ

Q1: What warranty coverage is provided with the AGDR-72C 68436788A?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions. Our technical team provides post-sale support to assist with installation verification and fault diagnosis throughout the warranty period.

Q2: How is each unit tested before shipment?
Every AGDR-72C board undergoes a 100% functional test prior to dispatch. Testing protocols verify gate signal output integrity, auxiliary power rail voltages, fiber-optic interface continuity, and protection circuit response. Units that do not meet ABB’s original performance specifications are not shipped.

Q3: Is the AGDR-72C 68436788A compatible with both ACS800 and ACS880 drive series?
Yes. The AGDR-72C is a direct-fit replacement for the gate driver assembly in both the ACS800 and ACS880 drive families. Compatibility extends across multiple frame sizes within these series. If you require confirmation for a specific drive frame or power rating, our technical team can verify compatibility before order placement.

Q4: Can long-term supply and repeat orders be arranged?
Yes. TOPNLMS maintains ongoing inventory of ABB ACS800/ACS880 series spare parts, including the AGDR-72C and associated boards. We support blanket purchase orders, scheduled releases, and emergency spot procurement for maintenance programs. Contact us to discuss volume pricing and supply agreements tailored to your facility’s maintenance schedule.
