ABB AGDR-71CS FS450R17KE3 Replacement for ACS800: Seamless Transition & Compatible Upgrade

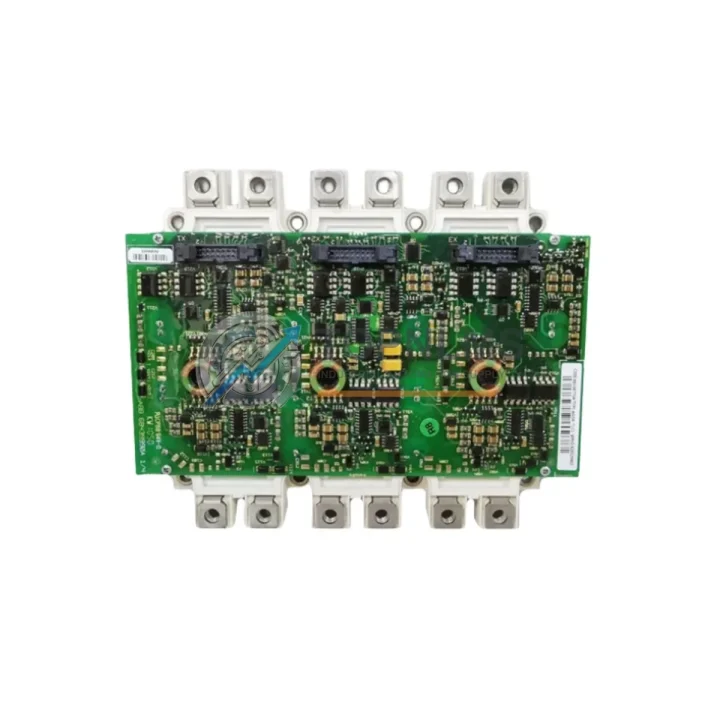

The ABB AGDR-71CS FS450R17KE3 is a high-performance IGBT gate driver kit engineered for ABB’s ACS800 series industrial drives. As legacy ACS800 installations age and original gate driver assemblies approach end-of-life, plant engineers and procurement teams face increasing pressure to source reliable, drop-in compatible replacements that minimize retrofit complexity and unplanned downtime. TOPNLMS stocks verified AGDR-71CS FS450R17KE3 units ready for immediate dispatch, backed by a 12-month warranty and pre-shipment functional testing.

The AGDR-71CS integrates the FS450R17KE3 IGBT power module — a 1700 V, 450 A half-bridge device from Infineon — with ABB’s proprietary gate driver circuitry. This combination delivers precise switching control, short-circuit protection, and desaturation detection that the ACS800 platform depends on for safe, high-efficiency motor control across demanding industrial applications including paper mills, metal processing lines, marine propulsion, and heavy-duty crane systems.

When migrating from a failed or degraded AGDR-71CS, engineers frequently encounter the challenge of matching the original wiring harness, fiber-optic interface connections, and DC bus voltage ratings. The AGDR-71CS FS450R17KE3 maintains full pin-for-pin and fiber-optic channel compatibility with the ACS800-U4, ACS800-U7, and ACS800-U11 drive frames, eliminating the need to re-route control cables or modify the existing control cabinet layout. The gate driver board mounts directly to the original heatsink assembly using the same M6 fastener pattern, and the fiber-optic transmitter/receiver pairs align with the RDCU-02C or RDCU-12C control units without any adapter boards.

For sites running multiple ACS800 units in a common DC bus configuration, the AGDR-71CS replacement process can be staged drive-by-drive without taking the entire bus offline. The replacement unit’s gate timing parameters are factory-set to match ABB’s original specifications, so no re-commissioning of the drive’s parameter set is required beyond a standard fault log reset and insulation resistance check on the motor circuit. This is a significant advantage over third-party gate driver alternatives that may require manual adjustment of dead-time compensation or overcurrent trip thresholds.

During a typical ACS800 retrofit, the AGDR-71CS FS450R17KE3 is installed alongside complementary components. The AINT-02C auxiliary interface board and APBU-44C branching unit are commonly replaced at the same service interval to restore full system redundancy. Sites upgrading from older ACS600 platforms to ACS800 architecture will also need to evaluate the RDCU-02C control unit and RMIO-11C I/O extension module for compatibility with existing PROFIBUS DP or Modbus RTU network segments. Where the existing control cabinet uses an IOEC-04 I/O expansion board for analog signal conditioning, the wiring to the new gate driver assembly can typically be retained without modification, as the terminal block assignments remain consistent across ACS800 drive generations.

Power supply integrity is critical during gate driver replacement. The AGDR-71CS draws its auxiliary supply from the drive’s internal 24 VDC SMPS rail, shared with the APOW-01C power supply board. Before installing the replacement gate driver, it is best practice to verify the APOW-01C output voltage under load and inspect the DC bus capacitor bank for signs of electrolytic degradation — particularly on units that have been in continuous service for more than eight years. If the BCON-11C brake chopper control board is present in the drive frame, its fiber-optic connections should also be inspected and cleaned during the same maintenance window to avoid nuisance faults after recommissioning.

For applications where the ACS800 communicates over PROFIBUS DP using the RPBA-01 adapter module, or over DeviceNet using the RDNA-01 adapter, the gate driver replacement has no impact on the fieldbus configuration. Network node addresses, baud rate settings, and process data mapping remain intact in the RDCU control unit’s non-volatile memory. This means the PLC program running on the upstream Siemens S7-300, Allen-Bradley ControlLogix, or Schneider Modicon M340 controller requires no modification — the drive simply resumes normal operation after the replacement unit passes its power-on self-test sequence.

TOPNLMS maintains buffer stock of the AGDR-71CS FS450R17KE3 to support emergency breakdown scenarios. All units are stored in ESD-safe packaging, inspected against ABB’s original part number labeling, and tested for gate signal integrity before dispatch. Standard lead time is 3–7 business days for international air freight; expedited same-day dispatch is available for orders confirmed before 14:00 CST. Each unit ships with a certificate of conformity and a 12-month replacement warranty covering manufacturing defects and premature failure under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ACS800 gate driver replacement rarely involves a single component in isolation. During the same maintenance window, experienced drive service engineers typically audit and replace the APOW-01C internal power supply board to ensure the 24 VDC auxiliary rail remains stable under the new gate driver’s inrush demand. The AINT-02C auxiliary interface board, which manages the fiber-optic signal routing between the RDCU control unit and the AGDR-71CS gate driver, should be inspected for connector oxidation and replaced if signal integrity tests show marginal margins.

For sites that also operate ABB ACS800 units with active front-end (AFE) rectifier stages, the APBU-44C pulse branching unit coordinates gate pulses across multiple IGBT stacks and is a common co-replacement item. Where the drive cabinet includes a braking chopper for regenerative load management, the BCON-11C brake chopper control board shares the same fiber-optic infrastructure and should be verified for correct operation after the gate driver swap.

On the network side, sites migrating from legacy ACS600 or ACS400 platforms to ACS800 architecture will need to re-evaluate their fieldbus adapter selection. The RPBA-01 PROFIBUS DP adapter and RDNA-01 DeviceNet adapter are the most common choices for integration with existing Siemens, Rockwell, or Schneider PLC networks, and both are available from TOPNLMS stock. For analog speed reference and torque feedback signals, the RMIO-11C I/O extension module provides the additional analog and digital I/O channels needed to interface with legacy DCS systems without modifying the upstream control program.

Finally, for sites that need to re-establish drive communication during commissioning, the NPBA-12 PROFIBUS adapter or a compatible USB-to-fiber programming cable enables direct parameter access via ABB’s DriveWindow or Drive Composer software, allowing engineers to verify gate driver fault history, adjust overcurrent trip levels, and confirm motor control mode settings before returning the drive to production service.

Retrofit Guidance FAQ

Q: Can I replace the AGDR-71CS FS450R17KE3 without re-entering drive parameters?
A: Yes. The AGDR-71CS gate driver does not store drive application parameters. All motor control settings, speed references, and protection thresholds reside in the RDCU-02C or RDCU-12C control unit’s non-volatile memory and are unaffected by the gate driver replacement. A fault log reset (parameter 96.05 in ACS800 firmware) is the only required post-replacement action before restarting the drive.

Q: Is the wiring harness from the original AGDR-71CS reusable?
A: Yes. The fiber-optic cables, 24 VDC auxiliary supply connector, and gate driver signal harness are all reusable. TOPNLMS recommends cleaning the fiber-optic ferrules with an IEC 61300-3-35 compliant cleaner before reconnecting to the replacement unit to ensure optimal signal transmission.

Q: Will the replacement unit work with my existing RDCU-12C control board?
A: Yes. The AGDR-71CS FS450R17KE3 is fully compatible with both the RDCU-02C and RDCU-12C control units across all ACS800-U4, U7, and U11 frame sizes. No firmware update to the RDCU is required.

Q: What communication protocols does the ACS800 support after this replacement?
A: The gate driver replacement has no effect on the drive’s fieldbus communication. PROFIBUS DP (via RPBA-01), DeviceNet (via RDNA-01), Modbus RTU, and CANopen adapters continue to operate normally. The upstream PLC or DCS program requires no modification.

Q: How do I verify the replacement AGDR-71CS is functioning correctly before full load operation?
A: After installation, power the drive in local control mode and perform a no-load motor run at 10–20% rated speed. Monitor the drive’s diagnostic display for IGBT fault codes (fault 2310, 2320, 2330 in ACS800 fault dictionary). If no gate driver faults appear within 5 minutes of no-load operation, the unit is confirmed functional and the drive can be returned to process control.

Q: Can this unit be installed in a cabinet with limited vertical clearance?
A: The AGDR-71CS FS450R17KE3 occupies the same physical envelope as the original ABB assembly. No additional clearance is required. For cabinets with restricted airflow, verify that the heatsink thermal resistance has not increased due to dust accumulation before reinstalling the gate driver assembly.
