ABB ACS-CP-U 3AUA0000050961 Ruggedized Control Panel: Industrial Resilience in Harsh Environments

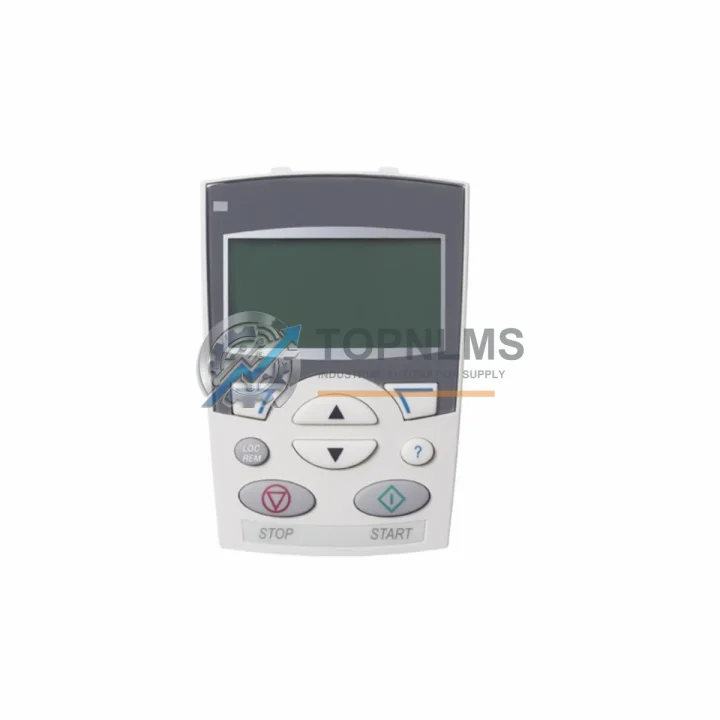

The ABB ACS-CP-U (Part No. 3AUA0000050961) is a ruggedized basic control panel engineered for demanding industrial environments where reliability is non-negotiable. Designed as the primary human-machine interface for ABB’s ACS550 and ACS350 variable frequency drive (VFD) series, this panel delivers precise motor speed control, parameter configuration, and real-time diagnostics — all within a compact, field-proven enclosure built to withstand the rigors of continuous industrial operation.

In environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI), the ACS-CP-U maintains stable communication with the host drive without signal degradation or panel lockup. Its sealed keypad interface and robust connector design resist ingress from dust and moisture, making it a dependable choice for control cabinets installed in steel mills, cement plants, water treatment facilities, offshore platforms, and chemical processing lines.

The panel interfaces directly with the ACS550 and ACS350 drive platforms via the drive’s front panel port, enabling operators to read output frequency, motor current, DC bus voltage, and fault history without additional instrumentation. In critical production environments — where an unplanned VFD fault can halt an entire conveyor line, pump station, or compressor train — the ACS-CP-U’s clear fault code display and parameter copy function dramatically reduce mean time to repair (MTTR). Maintenance technicians can upload drive parameters from one unit and download them to a replacement drive in minutes, a capability that is especially valuable in remote or hazardous locations where minimizing downtime is a safety and financial imperative.

When integrated into a complete ABB drive system, the ACS-CP-U works in concert with the ACS550’s built-in EMC filter, the drive’s internal brake chopper, and optional fieldbus adapter modules such as the FPBA-01 PROFIBUS-DP adapter or the FCAN-01 CANopen adapter. These communication modules allow the ACS550 to participate in distributed control architectures alongside Siemens S7-series PLCs, Allen-Bradley ControlLogix systems, or ABB’s own AC500 PLC platform — with the ACS-CP-U serving as the local override and diagnostic interface at the drive level. In safety-critical applications, the ACS550 can also be paired with ABB’s FSPS-21 safety functions module, which provides STO (Safe Torque Off) and SS1 (Safe Stop 1) functionality per IEC 62061 and ISO 13849-1, while the ACS-CP-U remains the operator’s window into drive status and fault conditions.

For panel builders and system integrators assembling control cabinets for hazardous area classification (ATEX Zone 2 or NEC Class I Division 2), the ACS-CP-U can be mounted remotely using ABB’s panel mounting kit, allowing the drive to be installed inside a sealed enclosure while the control panel remains accessible on the cabinet door. This configuration is widely used in oil and gas upstream facilities, LNG terminals, and mining headframes where the drive itself must be isolated from flammable atmospheres. Paired with appropriate cable glands, IP54 or IP66 enclosures, and surge protection devices on the drive’s input terminals, the overall system achieves the protection levels demanded by IEC 60079 and NEMA 7/9 standards.

Beyond the ACS550 and ACS350 platforms, the ACS-CP-U’s parameter structure is familiar to engineers who work across ABB’s broader drive portfolio, including the ACS310, ACS355, and ACS580 series. This cross-platform familiarity reduces training overhead and allows a single spare panel to serve multiple drive types on a site — a significant advantage for maintenance planners managing large inventories of rotating equipment. In facilities running ABB Ability™ condition monitoring or connected to an ABB Automation Builder engineering environment, the ACS-CP-U complements higher-level SCADA and DCS oversight by providing a reliable local fallback interface when network connectivity is interrupted.

The ACS-CP-U is also a critical spare part for facilities that have standardized on ABB drives for pumps, fans, compressors, conveyors, and hoists. Control panels are consumable items in harsh environments — UV exposure, chemical vapors, and repeated thermal cycling can degrade keypad membranes and display contrast over time. Stocking one or two ACS-CP-U panels as certified spare parts is a low-cost insurance policy against extended drive downtime. Each unit supplied by TOPNLMS is sourced from authorized channels, individually inspected, and function-tested prior to dispatch to ensure it meets ABB’s original performance specifications.

Rugged Specifications Table

Comprehensive Protection Solutions

The ACS-CP-U is most effective when deployed as part of a fully integrated ABB drive and control architecture. In a typical motor control center (MCC) for a water treatment plant, the ACS550 VFD — controlled via the ACS-CP-U — operates alongside ABB’s SACE Tmax XT molded case circuit breakers for upstream overcurrent protection, and ABB’s CM-MPS.41 phase monitoring relay to guard against phase loss and voltage asymmetry. For applications requiring safe isolation, ABB OT-series manual motor starters and load break switches provide the necessary lockout/tagout (LOTO) capability adjacent to the drive cabinet.

In distributed I/O architectures, the ACS550 communicates upstream to an ABB AC500 PLC via the FPBA-01 PROFIBUS-DP adapter, while the ACS-CP-U provides local parameter access and fault acknowledgment without requiring a laptop or engineering tool. For installations using PROFINET or EtherNet/IP, the FENA-21 dual-port Ethernet adapter replaces the FPBA-01 while the ACS-CP-U retains its role as the local operator interface. On the power supply side, ABB’s CP-E 24VDC SITOP-class power supplies ensure stable auxiliary voltage to the drive’s control board and I/O terminals, preventing nuisance trips caused by voltage sag during motor starting transients.

In mining and mineral processing applications, where conveyors and crushers operate under extreme mechanical shock and vibration, the ACS550 is often paired with ABB’s du/dt output filters and common mode filters to protect motor windings from reflected wave overvoltage — a configuration in which the ACS-CP-U’s real-time current and voltage monitoring becomes an essential diagnostic tool for detecting early signs of insulation degradation. For safety relay integration, ABB’s SF6 safety relay modules and JOKAB SMILE safety controllers can be wired into the ACS550’s STO input terminals, with the ACS-CP-U displaying the resulting safe state status codes for operator awareness.

Application in Critical Infrastructure

The ABB ACS-CP-U 3AUA0000050961 sees active deployment across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities, ACS550 drives equipped with this control panel regulate submersible pump motors, gas compressor auxiliaries, and cooling fan arrays in environments where ambient temperatures routinely exceed 45°C and salt-laden air accelerates corrosion. The panel’s parameter copy function is particularly valued at remote wellhead sites, where a replacement drive can be commissioned by a field technician without specialist software.

In power generation and transmission substations, ACS550 drives with ACS-CP-U panels control cooling fans for power transformers and reactor banks, where continuous, unattended operation is mandatory. Any drive fault that goes undetected can lead to transformer overheating and forced outage — making the panel’s fault history and alarm display a first line of defense. In water and wastewater treatment plants, the ACS550/ACS-CP-U combination drives centrifugal pumps and aeration blowers in chemically aggressive atmospheres, where the panel’s sealed interface resists chlorine and hydrogen sulfide vapors that would degrade unprotected electronics.

In metals and mining — including iron ore pelletizing, copper smelting, and aluminum rolling — the ACS-CP-U supports drives running conveyor belts, ball mills, and cooling water pumps in environments with heavy airborne particulates, high radiant heat, and intense electromagnetic noise from arc furnaces and induction heaters. The panel’s robust EMC immunity ensures that parameter readouts and control commands remain accurate even in the presence of strong magnetic fields. In cement and building materials production, where kiln drives and raw mill fans operate continuously for months without shutdown, the ACS-CP-U’s reliability as a spare part — available from stock, tested, and ready to install — is a key factor in plant maintenance planning.
