ABB 88FT05 GJR2393100R1200 Replacement for INSUM Series

Product Overview

ABB 88FT05 GJR2393100R1200 Replacement for INSUM Series: Seamless Transition & Upgrade Solution

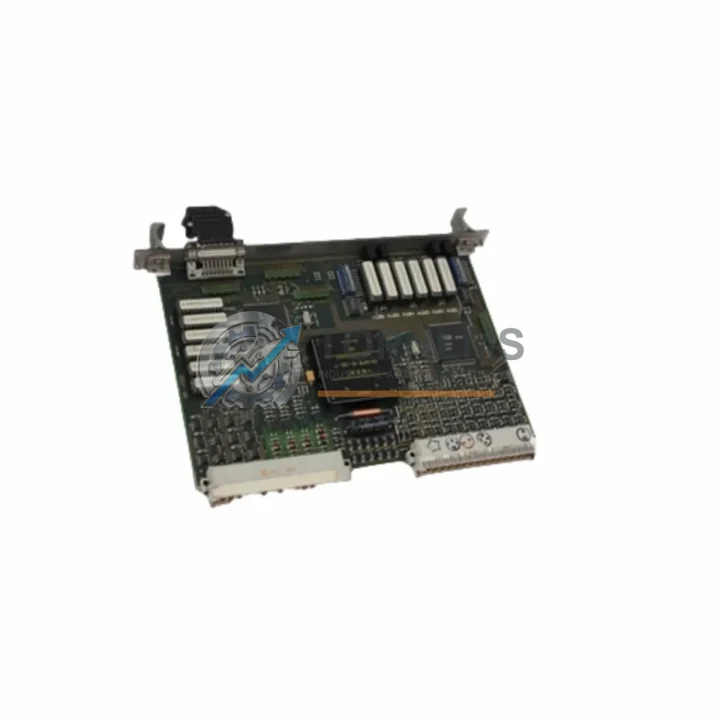

The ABB 88FT05 (part number GJR2393100R1200) is a Coupling Module within ABB’s INSUM (Intelligent Motor Control Unit) system — a distributed motor management and protection platform widely deployed in industrial facilities, marine installations, and process plants. As ABB continues to evolve its motor control architecture, many end users operating legacy INSUM networks are now facing the challenge of sourcing reliable replacement units for aging or discontinued modules. TOPNLMS maintains verified stock of the 88FT05 GJR2393100R1200 to support your retrofit, emergency replacement, and planned upgrade projects with minimal disruption to production.

The INSUM system communicates over a proprietary LON (Local Operating Network) fieldbus, and the Coupling Module serves as the critical interface between the INSUM network and the motor feeder units. Replacing or upgrading this module requires careful attention to fieldbus addressing, node configuration, and physical installation within the existing MCC (Motor Control Center) compartment. Our technical team can assist with pre-shipment configuration guidance to reduce on-site commissioning time.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful INSUM system upgrade or emergency replacement rarely involves a single module in isolation. When replacing the 88FT05 GJR2393100R1200 Coupling Module, field engineers typically review the condition of adjacent components within the same MCC lineup. The INSUM Motor Unit (IMU) — the intelligent feeder module that pairs with the Coupling Module — should be inspected for firmware compatibility, as mismatched revisions between the Coupling Module and IMU can cause LON communication faults. In many retrofit projects, the ABB INSUM IMU (GJR2393100R0xxx series) is replaced simultaneously to ensure a consistent hardware revision baseline across the network segment.

The LON network trunk cable and termination resistors are another common point of failure in aging INSUM installations. When the Coupling Module is replaced, it is good practice to verify the integrity of the LON bus termination at both ends of the network segment. Similarly, the 24 VDC auxiliary power supply feeding the INSUM network — often sourced from an ABB CP-series or equivalent DIN-rail power supply unit — should be load-tested to confirm it can support the full complement of INSUM nodes after the replacement.

For facilities migrating from a standalone INSUM network to an integrated SCADA or DCS environment, the ABB AC500 PLC series or ABB System 800xA DCS platform are common migration targets. In these architectures, the INSUM Coupling Module interfaces with a gateway device — such as an ABB CI854 PROFIBUS DP communication interface or an ABB CI840A FOUNDATION Fieldbus HSE linking device — to bridge the LON fieldbus data into the plant-wide control network. TOPNLMS can supply these gateway and communication interface modules alongside the 88FT05 to support a complete migration bill of materials.

In MCC compartments where space is at a premium, signal isolators and terminal distribution modules — such as ABB RINT-series interface boards or equivalent DIN-rail signal conditioners — are often installed alongside the Coupling Module to manage analog feedback signals from motor protection relays. When upgrading the Coupling Module, it is advisable to verify that these signal conditioning components remain within their rated operating range for the new module’s output specifications.

For projects involving a full MCC modernization, the ABB MNS or UniGear switchgear platform is frequently specified as the replacement enclosure, and the INSUM Coupling Module is retained as the motor intelligence layer within the new panel. In this scenario, the existing LON wiring harness, terminal blocks, and node addressing scheme can typically be preserved, significantly reducing commissioning time and the risk of wiring errors during cutover.

Retrofit Guidance FAQ

Q: Can I replace the 88FT05 GJR2393100R1200 without rewiring the MCC compartment?
A: Yes. The GJR2393100R1200 uses the same screw-terminal layout as earlier INSUM Coupling Module revisions. The existing wiring harness can be transferred directly to the replacement unit without modification, provided the terminal assignments match your site-specific wiring diagram.

Q: Do I need to reprogram the LON node address after replacement?
A: In most cases, no. The LON node address is stored in the module’s non-volatile memory. If the replacement unit is supplied as a blank (unaddressed) module, the INSUM Tool software can be used to assign the original node ID. TOPNLMS can advise on pre-configuration options prior to shipment.

Q: Is the 88FT05 compatible with all revisions of the INSUM Motor Unit (IMU)?
A: The GJR2393100R1200 is designed for compatibility across the INSUM product family. However, ABB recommends verifying firmware revision alignment between the Coupling Module and the paired IMU. Contact our technical team with your existing IMU part numbers for a compatibility confirmation before ordering.

Q: What communication protocols does the INSUM Coupling Module support?
A: The INSUM system uses the LON (Local Operating Network) fieldbus as its primary communication layer. Integration with higher-level systems (PROFIBUS DP, FOUNDATION Fieldbus, Modbus TCP, or OPC UA) is achieved via ABB gateway modules. The Coupling Module itself does not require protocol reconfiguration when replacing a like-for-like unit.

Q: How much physical space does the replacement module require?
A: The 88FT05 GJR2393100R1200 has the same physical footprint as earlier INSUM Coupling Module variants. No panel cutout modification or additional DIN-rail space is required for a direct replacement installation.

Q: What is the typical commissioning procedure after installation?
A: After mechanical installation and wiring reconnection, power up the INSUM network and use the INSUM Tool software to verify LON node communication, check motor protection parameter settings, and confirm I/O status feedback. A full functional test of the motor feeder — including overload trip simulation and remote start/stop via the LON network — is recommended before returning the MCC to service.

Warranty Assurance

Every ABB 88FT05 GJR2393100R1200 Coupling Module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a pre-shipment inspection that includes visual examination, packaging integrity check, and verification of part number and revision markings against the order specification. Units are shipped in anti-static protective packaging with appropriate cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement or refund process. Our after-sales response target is within 24 business hours of a warranty claim submission. We maintain reserve stock of critical INSUM components to support rapid replacement dispatch, minimizing the impact of any field failure on your production continuity.

For procurement teams requiring documentation, we can provide a certificate of conformity, packing list, and commercial invoice with full part number traceability. Lead time for in-stock units is typically 3–7 business days for international shipments from our Xiamen warehouse, with express courier options available for emergency requirements.

TOPNLMS is committed to supporting industrial facilities through the full lifecycle of their control system assets — from emergency spares procurement through to planned modernization and migration projects. Our team has experience sourcing and supplying ABB INSUM, AC500, System 800xA, and MNS platform components for customers across manufacturing, marine, oil & gas, and utilities sectors.
